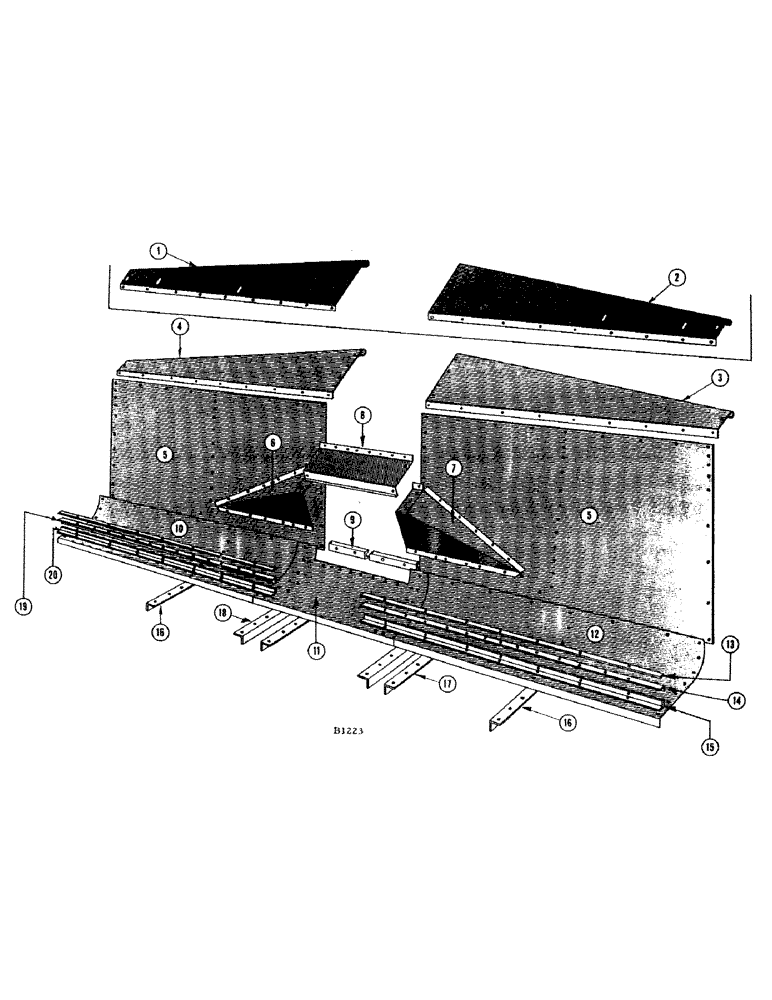

Запчасти Case IH 1010 (068) - HEADER AUGER TROUGH, 12 FOOT, 13 FOOT, 14 FOOT HEADERS (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
F11909
COVER - R.H., torque tube (Extended cutter bar) See ref. 4
1шт.
2
F11910
COVER - L.H., torque tube (Extended cutter bar) See ref. 3
1шт.
3
F9583
COVER - L.H., torque tube (12 ft.) See ref. 2
1шт.
RIVET - 1/4" x 7/8" rhd. (45-414)
3шт.
BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)
1шт.
WASHER - 1/4" plain (95-4)
1шт.
F12757
COVER - L.H. torque tube (13 ft.)
1шт.
RIVET - 1/4" x 7/8" rhd. (45-414)
3шт.
F8339
COVER - L.H., torque tube (14 ft.) See ref. 2
1шт.
RIVET - 1/4" x 7/8" rhd. (45-414)
3шт.
4
F9582
COVER - R.H., torque tube (12 ft.) See ref. 1
1шт.
RIVET - 1/4" x 7/8" rhd. (45-414)
3шт.
BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)
1шт.
WASHER - 1/4" plain (95-4)
1шт.
F12756
COVER - R.H. torque tube (13 ft.)
1шт.
RIVET - 1/4" x 7/8" rhd. (45-414)
3шт.
F8340
COVER - R.H., torque tube (14 ft.) See ref. 1
1шт.
RIVET - 1/4" x 7/8" rhd. (45-414)
3шт.
5
F9574
BACK SHEET - auger trough, R.H. and L.H. (12 ft.)
2шт.
RIVET - 1/4" x 5/8" W.B. hd. (49-4100
14шт.
F12748
BACK SHEET - auger trough, R.H. and L.H. (13 ft.)
2шт.
RIVET - 1/4" x 5/8" W.B. hd. (49-410)
14шт.
F8280
BACK SHEET - auger trough, R.H. and L.H. (14 ft.)
2шт.
RIVET - 1/4" x 5/8" W.B. hd. (49-410)
14шт.
6
F8286
SHIELD - feed rake, R.H.
1шт.
BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)
5шт.
WASHER - 1/4" plain (95-4)
10шт.
7
F8285
SHIELD - feed sake, L.H.
1шт.
BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)
5шт.
BOLT - 1/4" x 3/8' N.F. hex. (14-46) nut (25-114)
3шт.
WASHER - 1/4" plain (95-4)
10шт.
8
F8342
SHIELD - feed rake chain
1шт.
BOLT - 1/4" x 3/8" N.F. hex. (14-46) nut (25-114)
6шт.
BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)
2шт.
9
F11806
STRIP - filler, feeder spout floor
1шт.
RIVET - 1/4" x 5/8" rhd. (46-410)
9шт.
10
F11798
FLOOR - auger trough, R.H. (12 ft.)
1шт.
RIVET - 1/4" x 3/4" ctsk. hd. (46-412)
14шт.
F12746
FLOOR - auger trough R.H. (13 ft.)
1шт.
RIVET - 1/4" x 3/4" ctsk. hd. (46-412)
14шт.
F11808
FLOOR - auger trough, R.H. (14 ft.)
1шт.
RIVET - 1/4" x 3/4" ctsk. hd. (46-412)
14шт.
11
F11805
FLOOR - auger trough, center
1шт.
RIVET - 1/4" x 3/4" ctsk. hd. (46-412)
35шт.
12
F11799
FLOOR - auger trough, L.H. (12 ft.)
1шт.
RIVET - 1/4" x 3/4" ctsk. hd. (46-412)
12шт.
F12747
FLOOR - auger trough, L.H. (13 ft.)
1шт.
RIVET - 1/4" x 3/4" ctsk. hd. (46-412)
14шт.
F11809
FLOOR - auger trough, L.H. (14 ft.)
1шт.
RIVET - 1/4" x 3/4" ctsk. hd. (46-412)
14шт.
13
F9581
STRIPPER - adjustable, R.H. and L.H. (12 ft.)
2шт.
BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)
14шт.
WASHER - 1/4" plain (95-4)
14шт.
F12751
STRIPPER - adjustable, R.H. and L.H. (13 ft.)
2шт.
BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)
14шт.
WASHER - 1/4" plain (95-4)
14шт.
F8299
STRIPPER - adjustable, R.H. and L.H. (14 ft.)
2шт.
BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)
14шт.
WASHER - 1/4" plain (95-4)
14шт.
14
F9578
ANGLE - stripper, upper L.H. (12 ft.)
1шт.
BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)
7шт.
WASHER - 1/4" plain (95-4)
7шт.
F12750
ANGLE - stripper, upper L.H. (13 ft.)
1шт.
BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)
7шт.
WASHER - 1/4" plain ( 95-4)
7шт.
F12750
ANGLE - stripper, upper L.H. (13 ft.)
1шт.
BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)
7шт.
WASHER - 1/4" plain ( 95-4)
7шт.
F8292
ANGLE - stripper, upper L.H. (14 ft.)
1шт.
BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)
7шт.
BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)
7шт.
WASHER - 1/4" plain (95-4)
7шт.
15
F9579
ANGLE - stripper, lower L.H. (12 ft.)
1шт.
RIVET - 1/4" x 5/8" rhd. (45-410)
7шт.
F12753
ANGLE - stripper, lower L.H. (13 ft.)
1шт.
RIVET - 1/4" x 5/8" rhd. (45-410)
7шт.
F8294
ANGLE - stripper, lower L.H. (14 ft.)
1шт.
RIVET - 1/4" x 5/8" rhd. (45-410)
7шт.
16
F10794
HOOK RAIL - auger trough R.H. and L.H.
2шт.
RIVET - 1/4" x 5/8" ctsk. hd. (46-410)
6шт.
17
F8289
HOOK RAIL - feeder spout, L.H.
1шт.
RIVET - 5/16" x 7/16" rhd. (45-58)
1шт.
RIVET - 5/16" x 3/4" rhd. (45-512)
3шт.
18
F8288
HOOK RAIL - feeder spout, R.H.
1шт.
RIVET - 5/16" x 1-1/2" rhd. (45-524)
1шт.
RIVET - 5/16" x 3/4" rhd. (45-512)
3шт.
19
F9576
ANGLE - stripper, upper R.H. (12 ft.)
1шт.
BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)
7шт.
WASHER - 1/4" plain (95-4)
7шт.
F12754
ANGLE - stripper, upper R.H. (13 ft.)
1шт.
BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)
7шт.
WASHER - 1/4" plain (95-4)
7шт.
F8290
ANGLE - stripper, upper R.H. (14 ft.)
1шт.
BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)
7шт.
WASHER - 1/4" plain (95-4)
7шт.
20
F9577
ANGLE - stripper, lower R.H. (12 ft.)
1шт.
RIVET - 1/4" x 5/8" rhd. (45-410)
7шт.
F12755
ANGLE - stripper, lower R.H. (13 ft.)
1шт.
RIVET - 1/4" x 5/8" rhd. (45-410)
7шт.
F8291
ANGLE - stripper, lower R.H. (14 ft.)
1шт.
RIVET - 1/4" x 5/8" rhd. (45-410)
7шт.
Выбрано товаров: 101
