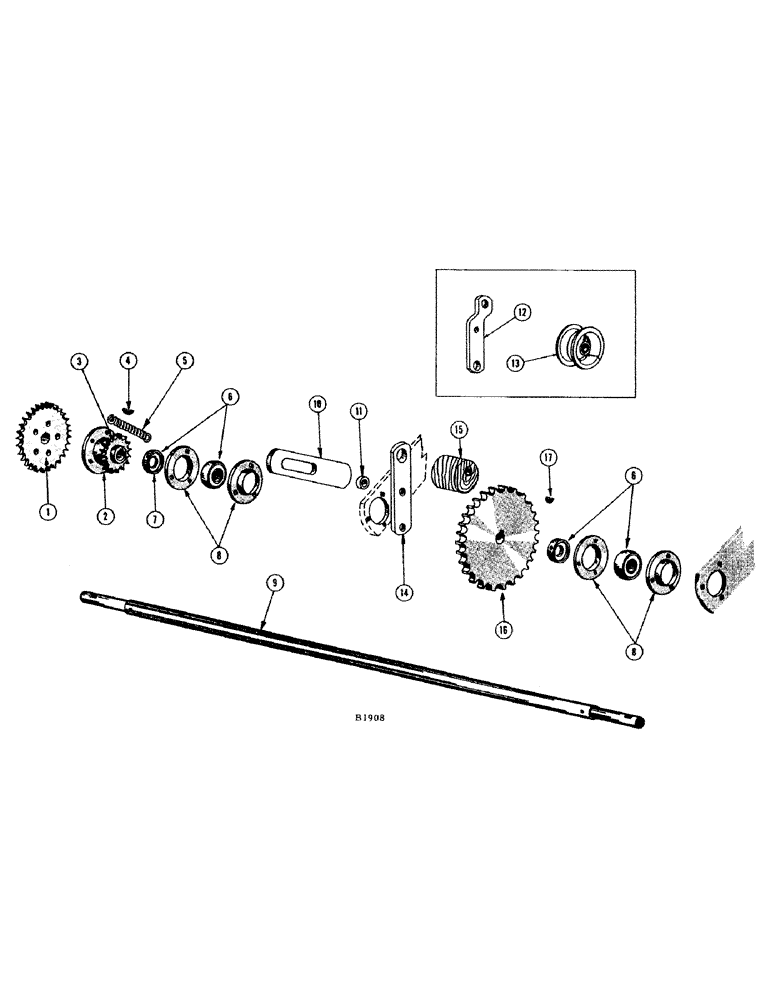

Запчасти Case IH 1010 (066) - MAIN HEADER DRIVE JACKSHAFT (58) - ATTACHMENTS/HEADERS

1

F5530

SPROCKET - (30T) auger drive (120 RPM) See O4929CS and O4930CS

1шт.

BOLT - 3/8" x 1-1/4" N.C. hex. (14-620) nut (25-116)

5шт.

O4929CS

SPROCKET - (25T) auger drive (100 RPM)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

5шт.

O4930CS

SPROCKET - (37T) auger drive (150 RPM)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

5шт.

2

F79868

PLATE - reel drive jackshaft sprocket, with hub

1шт.

KEY - "C" Woodruff (126-29)

1шт.

SCREW - 3/8" x 3/8" N.C. socket hd. set (83-66)

1шт.

3

F79867

SPROCKET - (23T) drives reel drive jackshaft

1шт.

SCREW - 3/8" 3/8" N.C. socket hd. cup pt. set (83-66)

1шт.

4

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

For ref. 3 #C, 5/16" x 1 1/8"

1шт.

5

O4522B

SPRING

- tightener strap

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) dbl. hex. nut (25-116)

1шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (11-620) dbl. hex. nut (25-106)

1шт.

6

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - (Fafnir #RA103PPB2) jackshaft

2шт.

7

O697CB

X

COLLAR

1шт.

8

O650CB

X

FLANGE - for ref. 6

4шт.

BOLT - 3/8" x 1" rhd. sq. nk. (14-616) nut (25-106)

6шт.

9

F11667

JACKSHAFT - main header drive (12 ft. header)

1шт.

F12760

JACKSHAFT - main header drive (13 ft. heavy duty header)

1шт.

F11672

JACKSHAFT - main header drive (14 ft. header)

1шт.

F11675

JACKSHAFT - main header drive (16 ft. and 18 ft. headers)

1шт.

10

F11314

STOP - tightener

1шт.

11

O736N

SPACER - (3/8" x 9/32" long) tightener strap

1шт.

12

F12761

STRAP - tightener #8262501 and after

1шт.

BOLT - 3/8" x 1/2" N.F. hex. (14-624) nut (25-116)

1шт.

WASHER - 3/8" plain (95-6)

1шт.

BOLT - 3/8" x 1/4" N.F. hex. (14-620) dbl. nut (25-116)

1шт.

13

O3511CS

PULLEY

- #8262501 and after

1шт.

BOLT - 1/2" x 2" N.F. hex. (14-8320 nut (25-118)

1шт.

14

F11315

STRAP - tightener (Before serial #8262501)

1шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (11-620) nut (25-106)

1шт.

WASHER - 3/8" plain (95-6)

1шт.

15

305-1/2CH

BLOCK - tightener, reel jackshaft drive (Before serial #8262501)

1шт.

BOLT - 3/8" x 3-1/2" N.F. hex. (114-226) nut (129-123)

1шт.

WASHER - 3/8" plain (195-525)

1шт.

16

F77097

SPROCKET - (50T) drives main header jackshaft

1шт.

PIN - 5/16" x 1-3/4" Type A3 Driv-Loc (135-368)

1шт.

17

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

1шт.

F8392

CHAIN - main header drive (Use 2-B12478 chains, 2-B12479 chains, 1-B12481 chain, 1-B12509 conn. link, 2-B12510 offset links and 1-B12511 roller link) (Not shown)

1шт.
