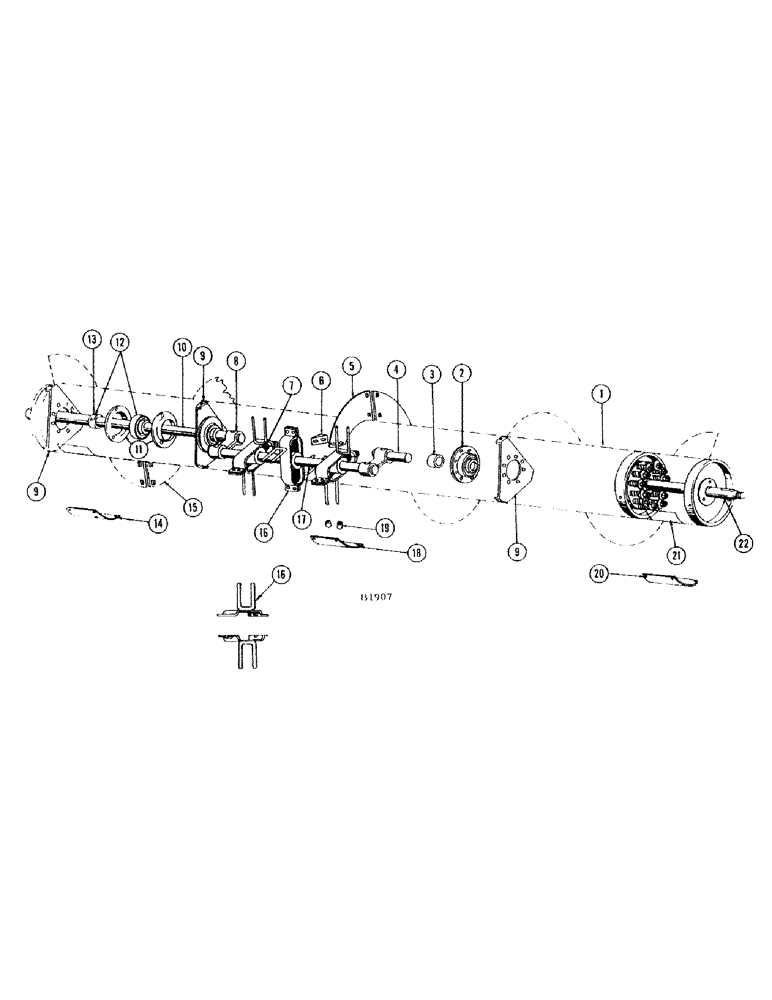

Запчасти Case IH 1010 (064) - AUGER FOR PICKUP HEADERS (58) - ATTACHMENTS/HEADERS

1

F79329M

AUGER - header, 12 ft. (Mchy. item)

1шт.

F79334

TUBE AND FLIGHTING

1шт.

F79746M

AUGER - header, 14 ft. (Mchy. item)

1шт.

F79709

TUBE AND FLIGHTING

1шт.

F79745M

AUGER - heaer, 16 ft. (Mchy. item)

1шт.

F79707

TUBE AND FLIGHTING

1шт.

2

N5077

FLANGED BEARING

BEARING - center mounting plate

2шт.

3

F52076

COLLAR

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

6шт.

4

O4241CS

SHAFT - stub, pivot (For ref. 16)

1шт.

5

F11522

EXTENSION - flight, L.H. spiral

1шт.

See Figure Note.

1шт.

111-222

BOLT - 5/16" x 1/2" rhd. sq. nk.

2шт.

9635082

NUT,5/16" - 18, Gr 5

and fl. wshr. (195-103) 5/16"-18, G5

2шт.

6

F11521

CLIP - mounting, flight extension

2шт.

See Figure Note.

1шт.

111-217

CARRIAGE BOLT,Short NK, 5/16"-18 x 5/8", G2

BOLT - 5/16" x 5/8" rhd. sq. nk.

2шт.

9635082

NUT,5/16" - 18, Gr 5

and fl. wshr. (195-103) 5/16"-18, G5

2шт.

7

F11606

BUSHING

SPOOL - retractable finger

5шт.

8

F7473

ARM

- crank, finger pivot

4шт.

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- 5/16" x 2" N.F. hex. and nut (25-115)

4шт.

9

O5114CS

PLATE - inner, auger tube support

3шт.

76-612

SCREW - 3/8" x 3/4" N.F. rhd. mach. and nut (25-116)

9шт.

10

F10955

SHAFT - control (12 ft. header)

1шт.

F11534

SHAFT - control (14 ft. header)

1шт.

F11533

SHAFT - control (16 ft. header)

1шт.

11

B18282

FLANGE

- ref. 12 bearing

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

3шт.

12

2950CSA

HOUSING ASSY.

BEARING - R.H. mounting plate

1шт.

13

O4233CS

COLLAR

1шт.

14

F11520

PLATE - cover

2шт.

See Figure Note.

1шт.

111-217

CARRIAGE BOLT,Short NK, 5/16"-18 x 5/8", G2

BOLT - 5/16" x 5/8" rhd. sq. nk.

2шт.

9635082

NUT,5/16" - 18, Gr 5

and fl. wshr. (195-103) 5/16"-18, G5

2шт.

15

F11523

EXTENSION - flight, R.H. spiral

1шт.

See Figure Note.

1шт.

111-222

BOLT - 5/16" x 1/2" rhd. sq. nk.

2шт.

9635082

NUT,5/16" - 18, Gr 5

and fl. wshr. (195-103) 5/16"-18, G5

2шт.

16

F86287

FINGER

ASSEMBLY

10шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

20шт.

17

F10956

SHAFT - roller

1шт.

18

F76158

LARGE PLATE

COVER - finger guide

10шт.

19

F6658

BUSHING

- finger

2шт.

187-348

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW - #14 x 5/8" pan hd. tapping

40шт.

20

F9225

DOOR - inspection

2шт.

See Figure Note.

1шт.

187-348

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW - #14 x 5/8" pan hd. tapping

8шт.

21

F9225

DOOR - inspection

2шт.

187-348

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW - #14 x 5/8" pan hd. tapping

8шт.

22

F10375

SHAFT - auger drive

1шт.
