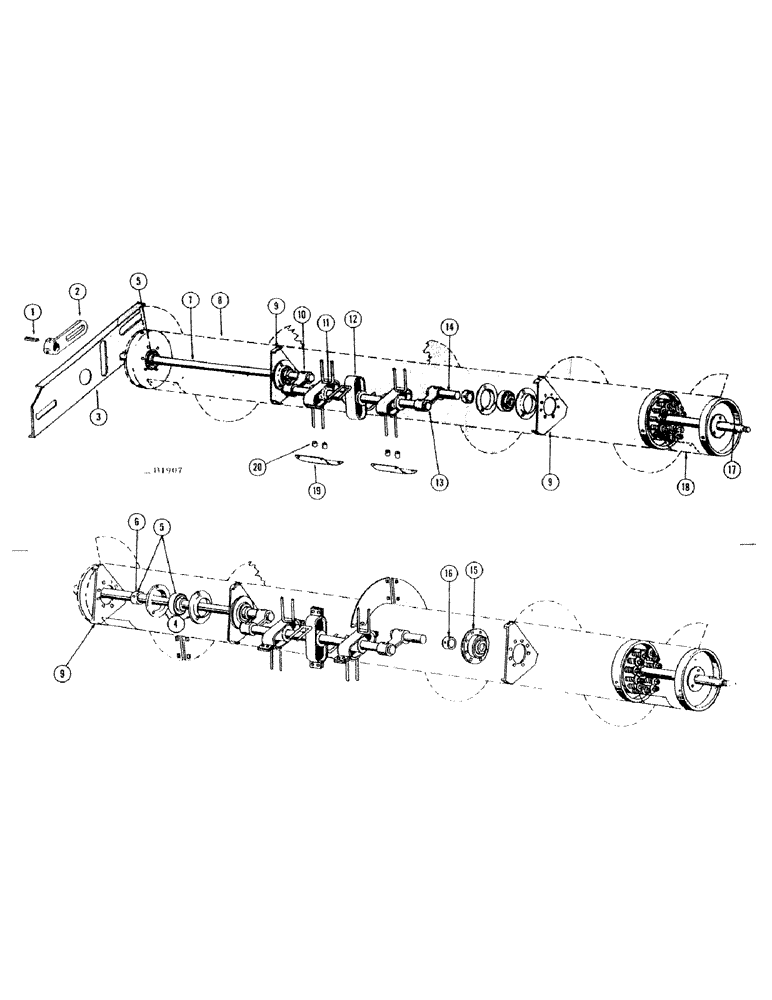

Запчасти Case IH 1010 (062) - RETRACTABLE FINGER TYPE HEADER AUGER (58) - ATTACHMENTS/HEADERS

1

O4284CS

X

KEY - (3/16" x 1") ref. 2 arm

1шт.

2

F1232

FITTING

ARM - finger control

1шт.

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" x 1-1/2" rhd. sq. nk.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. and fl. wshr. (95-8)

1шт.

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - 5/16" x 1/2" N.C. socket hd. cup pt. set

1шт.

3

F77080

SUPPORT - R.H., auger bearing

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex. and fl. wshr. (95-6)

2шт.

4

B18282

FLANGE

- ref. 5 bearing

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

3шт.

5

2950CSA

HOUSING ASSY.

BEARING - R.H. mounting plate

1шт.

6

O4233CS

COLLAR

1шт.

7

F9605

SHAFT - (64-7/32") finger control (12 ft. header)

1шт.

F12773

SHAFT - (69-5/16") finger control (13 ft. heavy duty)

1шт.

F8489

SHAFT - (76-7/32") finger control (14 ft. header)

1шт.

F8587

SHAFT - (83-7/32") finger control (16 ft. header)

1шт.

F10330

SHAFT - (111-13/16") finger control (18 ft. header)

1шт.

8

F78698M

AUGER - header, 12 ft. (Mchy. item)

1шт.

F77837

TUBE AND FLIGHTING

1шт.

F86794M

AUGER - header, 13 ft. (Mchy. item)

1шт.

F86811

TUBE AND FLIGHTING

1шт.

F78701M

AUGER - header, 14 ft. standard (Mchy. item)

1шт.

F77836

TUBE AND FLIGHTING

1шт.

F86678M

AUGER - header, 14 ft. heavy duty (Mchy. item)

1шт.

F86679

TUBE AND FLIGHTING

1шт.

F78704M

AUGER - header, 16 ft. (Mchy. item)

1шт.

F77838

TUBE AND FLIGHTING

1шт.

F78707M

AUGER - header, 18 ft. (Mchy. item)

1шт.

F79159

TUBE AND LIGHTING

1шт.

9

O5114CS

PLATE - inner, auger tube support

3шт.

76-612

SCREW - 3/8" x 3/4" N.F. rhd. mach. and nut (25-116)

9шт.

10

F7473

ARM

- crank, finger pivot

4шт.

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- 5/16" x 2" N.F. hex. and nut (25-115)

4шт.

11

F11606

BUSHING

SPOOL - retractable finger

2шт.

12

F86287

FINGER

ASSEMBLY

6шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

12шт.

13

F6281

SHAFT

- finger assembly

1шт.

14

O4241CS

SHAFT - stub, pivot (For ref. 12)

1шт.

15

N5077

FLANGED BEARING

BEARING - center mounting plate

2шт.

16

F52076

COLLAR

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

6шт.

17

F10375

SHAFT - auger drive

1шт.

131-152

HARDWARE

NUT - 3/4" - 16 Gripco hex. jam and fl. wshr. (95-12)

1шт.

18

F9225

DOOR - inspection

2шт.

187-348

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW - #14 x 5/8" pan hd. tapping

8шт.

19

F76158

LARGE PLATE

COVER - finger guide

6шт.

20

F6658

BUSHING

- finger

2шт.

187-348

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW - #14 x 5/8" pan hd. tapping

24шт.
