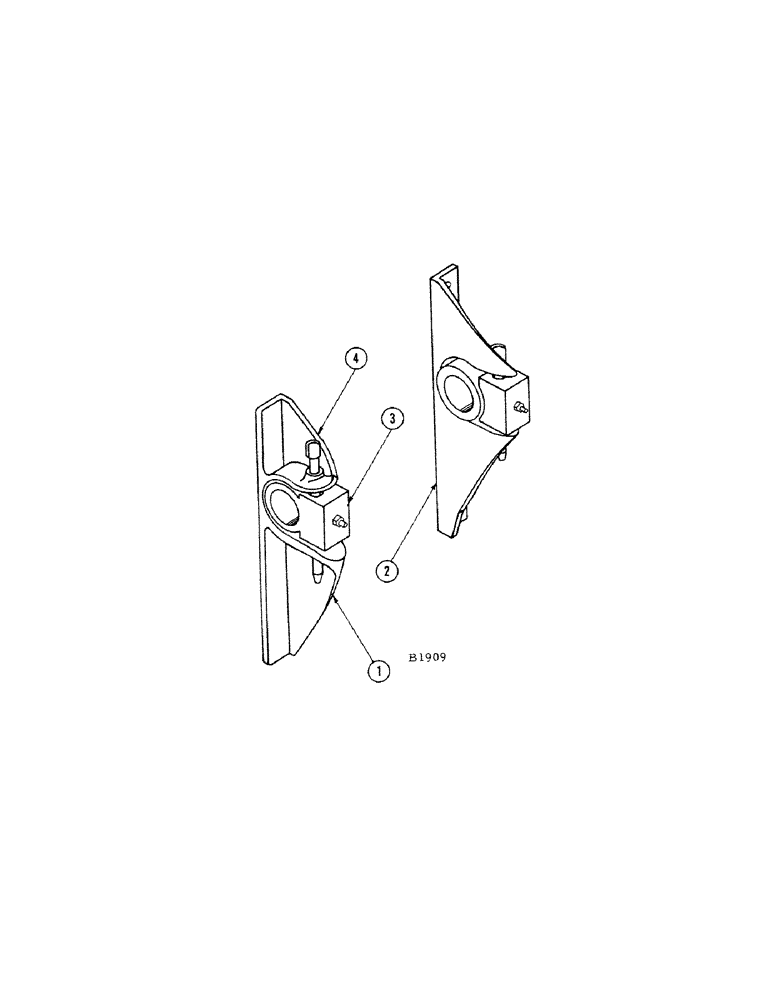

Запчасти Case IH 1010 (060[A]) - HEADER PIVOT BRACKETS (58) - ATTACHMENTS/HEADERS

1

F1337

BRACKET - header pivot, R.H.

1шт.

BOLT - 5/8" x 1-3/4" N.F. hex. (14-1028) nut (25-1110)

4шт.

2

F1338

BRACKET - header pivot, L.H.

1шт.

BOLT - 5/8" x 1-3/4" N.F. hex. (14-1028) nut (25-1110)

4шт.

3

F86049

GUIDE

BLOCK - header pivot bearing

2шт.

FITTING - 1/8" str. Lincoln #5000 (219-1)

2шт.

4

F6266

PIN - locking

2шт.

VC1419

X

COTTER - hair pin, for F6266 locking pin (Not shown)

2шт.
