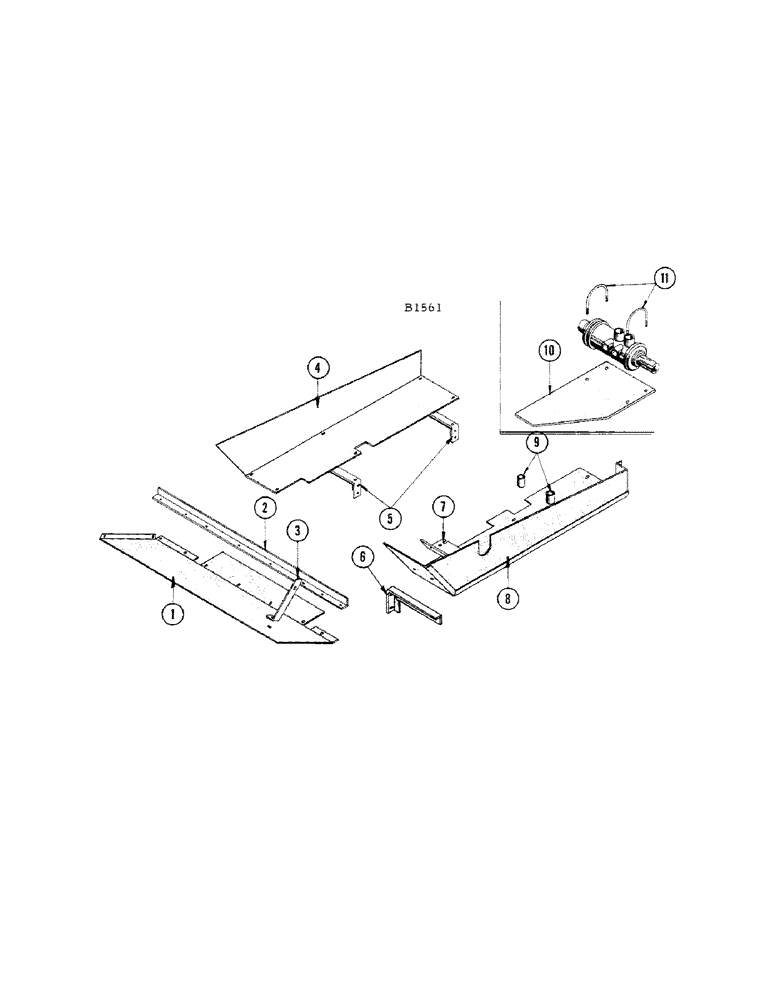

Запчасти Case IH 1010 (058) - FAN TRASH SHIELD ATTACHMENT, FOR USE WITH SORGHUM ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

F10251

SHIELD - center section

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

6шт.

WASHER - 5/16" (195-521)

6шт.

2

F9930

ANGLE - cross

1шт.

3

F10259

STRAP - tie

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121)

1шт.

4

F78476

SHIELD - R.H.

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

6шт.

5

F9510

ANGLE - support

2шт.

BOLT - 5/15" x 3/4" N.F. hex. (114-102) nut (129-122)

4шт.

WASHER - 5/16" (195-521)

4шт.

6

F11681

SUPPORT - front shield L.H. (Serial #8262501 and after)

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

4шт.

WASHER - plain (195-525)

2шт.

7

F10252

BRACKET - front support, L.H. (Before serial #8262501)

1шт.

8

F78474

SHIELD - L.H.

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

2шт.

BOLT - 5/16" x 2-1/2" N.F. hex. (114-114) nut (129-122)

2шт.

9

F10253

SPACER - (Before serial #8262501)

2шт.

O954HS

SPACER - (Serial #8262501 and after)

2шт.

10

F10254

GUARD - hose, power steering valve (Before serial #8262501)

1шт.

11

F10255

"U" BOLT - for power steering valve (Before serial #8262501)

2шт.

NUT - 1/4" N.C. hex. (129-101) L.W. (192-19)

4шт.
