(058[A]) - TIGHTENER, AUGER AND MAIN HEADER DRIVE, SERIAL NUMBER 8262501 AND AFTER

Запчасти Case IH 1010 (058[A]) - TIGHTENER, AUGER AND MAIN HEADER DRIVE, SERIAL NUMBER 8262501 AND AFTER (58) - ATTACHMENTS/HEADERS

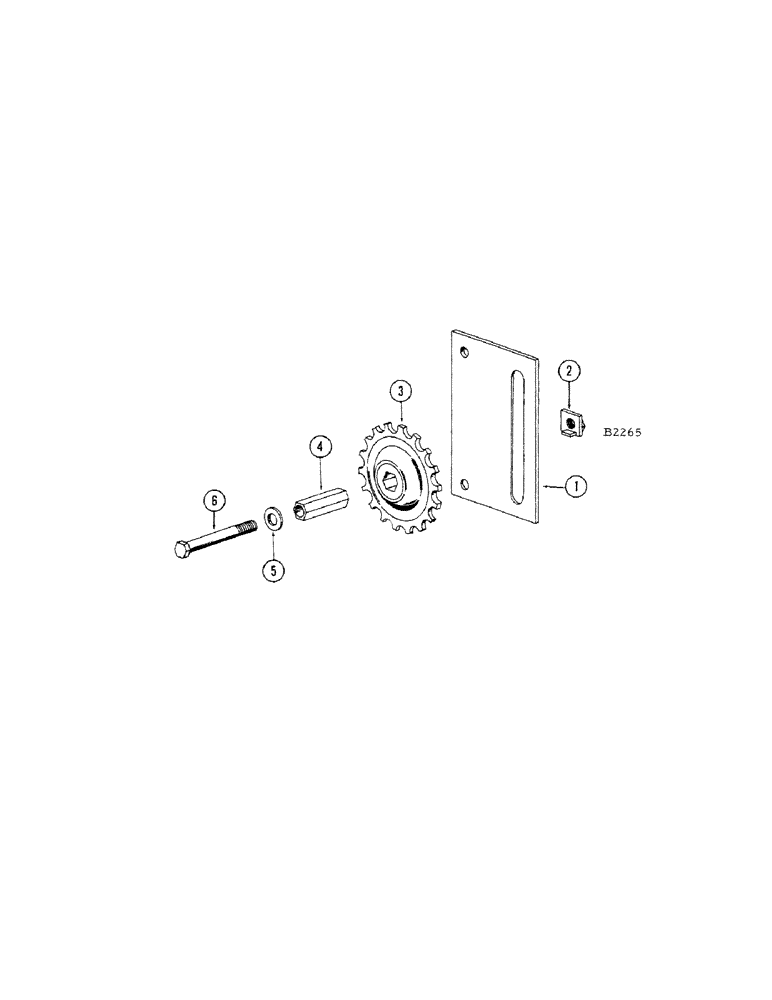

Схема запчастей Case IH 1010 - (058[A]) - TIGHTENER, AUGER AND MAIN HEADER DRIVE, SERIAL NUMBER 8262501 AND AFTER (58) - ATTACHMENTS/HEADERS
2
5
6
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F8346

BRACKET - tightener (Auger drive tightener only)

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

2шт.

2

F75313

LOCKNUT - for ref. 5

2шт.

3

F12640

SPROCKET ASSY.

SPROCKET - idler

2шт.

4

F12623

STUD -

2шт.

5

95-10

WASHER,5/8"

1шт.

6

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.F. hex.

2шт.
