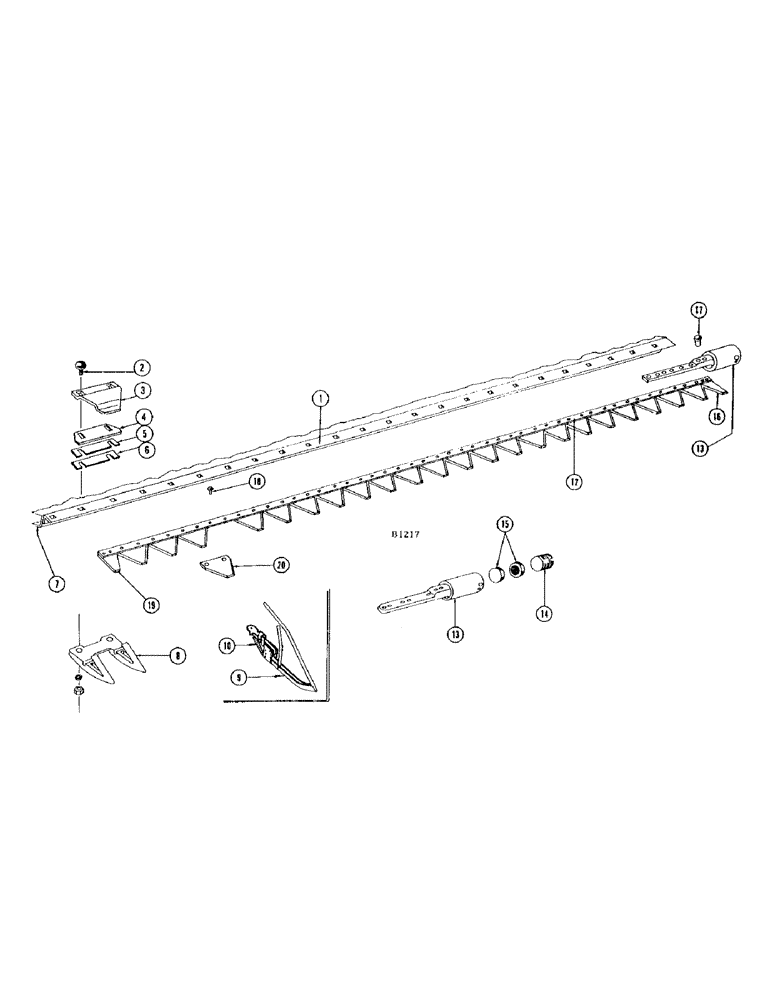

Запчасти Case IH 1010 (052) - SICKLE AND CUTTER BAR, 16 FOOT, 18 FOOT (58) - ATTACHMENTS/HEADERS

1

F8583

RAIL - cutter bar, 16 ft. header

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

6шт.

F10325

RAIL - cutter bar, 18 ft. header

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

4шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 1", G2

16шт.

2

111-321

SQUARE BOLT,Short Nk, 3/8" - 24 x 1 1/4", Gr 5

BOLT - 3/8" x 1-1/4" N.F. rhd. sq. nk. (Grade 5) sickle guard, 60-16 ft. and 68-18 ft. header

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex. and L.W. (92-6)

1шт.

3

F8356

CLIP

- sickle hold down (16-16 ft. and 18-18 ft.)

1шт.

4

F7098

LARGE PLATE

PLATE - chaffing (16-16 ft. and 18-18 ft.)

1шт.

5

F8355

SHIM - (32-16 ft. and 36-18 ft)

1шт.

6

F9392

SHIM - (16-16 ft. and 18-18 ft.)

1шт.

7

F9396

REINFORCEMENT - for 16 ft. cutter bar rail F8583

1шт.

F10324

REINFORCEMENT - for 18 ft. cutter bar rail F10325

1шт.

8

F3146

GUARD

- sickle (Replaces F3132) 31-16 ft. and 35-18 ft.)

1шт.

F3147

GUARD

- sickle, L.H. end (Replaces F3133)

1шт.

9

F84171

GUARD - pickup, grain saving (Special)

1шт.

10

A30455

SPRING

1шт.

F1365

STRAIGHTENER - sickle guard

1шт.

12

F79580

X

SICKLE - 16 ft. (w/F11304 sections) See F88041

1шт.

F79584

SICKLE - 18 ft. (w/F11304 sections)

1шт.

13

F77330

HEAD

- sickle

1шт.

14

F8360

ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"

- adjusting

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str., for head

1шт.

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , For head 3/32" x 1/2"

2шт.

15

A26629

BEARING

2шт.

16

F9956

PLATE

- filler, L.H. end of sickle

1шт.

45-418

RIVET,Button, 6.35mm OD x 28.57mm L

- (1/4" x 1-1/8" rhd.) sickle head

2шт.

17

Z1691

RIVET

- (#5-1 x 7/8" rhd.) sickle head to bar (1 lb. pkg.)

5шт.

18

Z1690

RIVET

- (#5-1/2 x 9/16" rhd.) sections to bar (1 lb. pkg.)

1шт.

19

F9955

LARGE PLATE

PLATE - filler, R.H. end of sickle

1шт.

20

F11304

KNIFE SECTION

SECTION - underserrated (63-16 ft. and 77-18 ft.)

1шт.

F12506

SECTION - top serrated

1шт.

F88048

KNIFE ASSY

SICKLE - 16 ft. (w/F14437 sections) (replaces F88041)

1шт.

F14437

KNIFE SECTION

SECTION - underserrated, chrome plated (Also includes ref. 13, 16, 17, 18 and 19)

1шт.

F14477

KNIFE SECTION

SECTION - top serrated, chrome plated

1шт.

T13492

RIVET

- #5-1/2 x 7/8" rhd. pltd. (1 lb. pkg.) chrome sections

1шт.

T13489

RIVET

- #5-1/2 x 9/16" rhd. pltd. (lb. pkg.) chrome sections

1шт.
