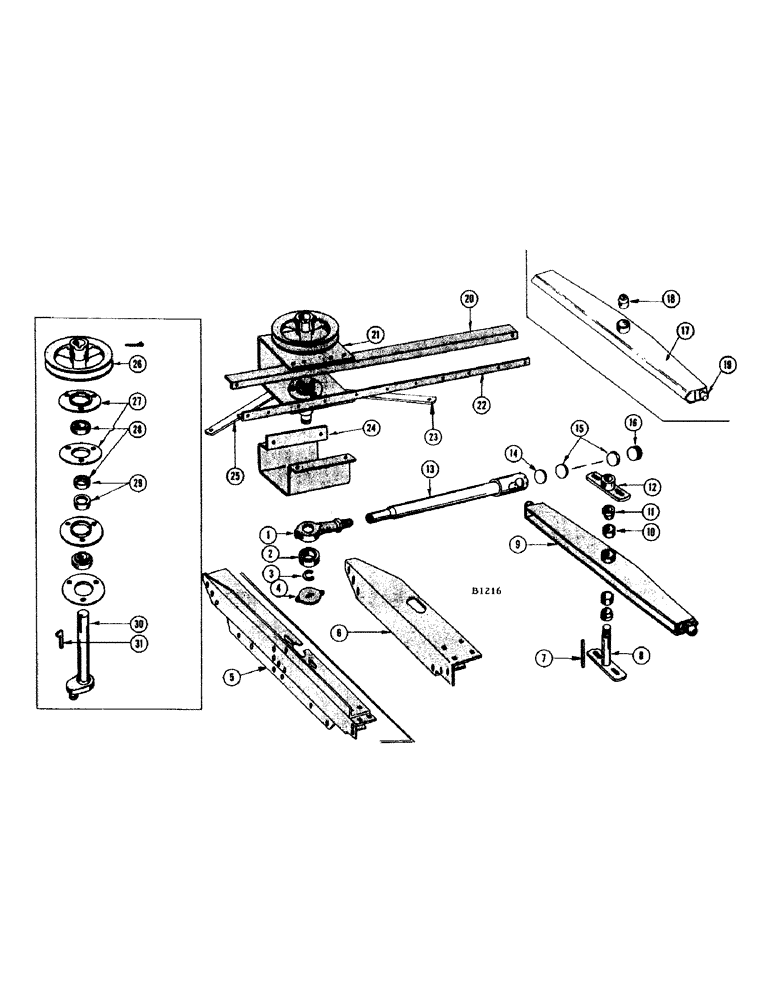

Запчасти Case IH 1010 (046) - SICKLE DRIVE (58) - ATTACHMENTS/HEADERS

1

F3087

END - Pitman

1шт.

FITTING - 1/8" str. Lincoln #5000 (219-1)

1шт.

NUT - 3/4" N.F. hex. jam (25-1512)

1шт.

2

O7285A

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING - (N.D. #3205) Pitman

1шт.

3

O6563AB

X

SNAP RING - Pitman bearing

1шт.

4

O2400B

CAP - Pitman bearing

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) L.W.(92-5)

2шт.

5

F86073

PLATE - support, sway bar (Extended cutter bar) See ref. 6

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

2шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

1шт.

WASHER - 5/16" plain (95-5)

3шт.

6

F79564

PLATE - support, sway bar (See ref. 5) Before #8262501

1шт.

BOLT - 1/2" x 1/4" N.F. hex. (14-820) nut (25-118)

4шт.

WASHER - 1/2" plain (95-8)

8шт.

F86798

PLATE - support, swaybar (#8262501 and after)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516)

4шт.

BOLT - 5/16" x 1-1/8" N.F. hex. (14-518)

3шт.

NUT - (25-115) L.W. (92-5) plain wshr. (95-5)

7шт.

7

F10665

KEY - for ref. 8 and 11

1шт.

8

F78922

SHAFT

- pivot, sway bar (For extended cutter bar and/or before #8262501)

1шт.

NUT - 7/8" N.F. hex. (25-1114) jam nut (25-1514)

1шт.

O906AB

WASHER - (1-1/8" O.D. x 1-1/32" I.D. #12 ga.) pivot shaft not shown

1шт.

9

F77890

SWAY BAR - sickle drive (before #8262501) See F78896

1шт.

10

F8372

BEARING

CUP - (Tyson #11910-SL) bearing, sway bar

2шт.

FITTING - 1/8" Lincoln #5007 (219-5)

1шт.

F78896

SWAY BAR - sickle drive (Extended cutter bar) See F77890

1шт.

FITTING - 1/8" str. Lincoln #5007 (219-5)

1шт.

11

F8373

CONE

- bearing, sway bar

2шт.

12

F78483

BUSHING

PLATE - adjustment (Extended cutter bar) and/or before #8262501

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118)

4шт.

WASHER - 1/2" plain (95-8)

8шт.

13

F77087

PITMAN

- sickle drive

1шт.

PIN - 3/32" x 1/2" cotter (132-24)

2шт.

14

F9513

BLANK-OFF PLUG

SLUG - Pitman (To prevent grease from entering tube)

1шт.

15

O2004AB

BEARING - Pitman socket (Set of 2 each side of head)

4шт.

16

F8360

ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"

- adjusting, Pitman

1шт.

FITTING - 1/8" str. Lincoln #5000 (219-1)

1шт.

17

F86796

SWAY BAR - sickle drive (8262501 and after)

1шт.

18

F18852

RUBBER BUSHING

PIVOT

2шт.

19

F8370

BALL

2шт.

BOLT - 7/8" x 6" N.F. hex. (14-1496) jam nut (25-1514) and nut (25-114)

1шт.

WASHER - plain (95-14)

2шт.

03885A

WASHER - for ref. 17, not shown

2шт.

20

F9055

ANGLE - sickle drive support, upper (12' header)

1шт.

F12749

ANGLE - sickle drive support, upper (13' header)

1шт.

F8295

ANGLE - sickle drive support, upper (14' header)

1шт.

F8577

ANGLE - sickle drive support, upper (16' headers)

1шт.

21

F10808

SUPPORT - bearing, sickle drive

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

8шт.

22

F11485

ANGLE - sickle drive support, lower (12' header)

1шт.

F12752

ANGLE - sickle drive support, lower (13' header)

1шт.

F10809

ANGLE - sickle drive support, lower (14' header)

1шт.

F10810

ANGLE - sickle drive support, lower (16' and 18' headers)

1шт.

23

F12277

BRACE - sickle drive shield (12' and 13' headers)

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

F10787

BRACE - L.H. sickle drive shield (See feeder spout braces illustration)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

2шт.

24

F8366

SHIELD - sickle drive

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

4шт.

F10367

SHIELD - sickle drive (Heavy duty headers)

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

4шт.

25

F10786

BRACE - R.H. sickle drive shield (See feeder spout braces)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

2шт.

26

F1260

SHEAVE - (6-3/4" O.D.) sickle drive (12', 14' and 16' headers)

1шт.

PIN - 1/4" x 2-1/2" cotter (132-157)

1шт.

F1302

SHEAVE

- (7-1/2" O.D.) sickle drive (18 ft. headers)

1шт.

PIN - 1/4" x 2-1/2" cotter (132-157)

1шт.

27

O650CB

X

FLANGE - for ref. 28

4шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (11-614) nut (25-106)

6шт.

28

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - (Fafnir #RA 103 PPB-2) drive shaft

2шт.

29

O697CB

X

COLLAR

1шт.

30

F77084

SHAFT - crank, sickle drive

1шт.

31

O164CU

GIB KEY - (2-3/16" long) sickle drive sheaves to F77084 shaft

1шт.

F9587

"V" BELT - sickle drive (12' header) Not shown

1шт.

F12765

V-BELT

"V" BELT - sickle drive (13' header) Not shown

1шт.

F8398

V-BELT

"V" BELT - sickle drive (14' header) Not shown

1шт.

F8819

V-BELT

"V" BELT - sickle drive (16' and 18' headers) Not shown

1шт.
