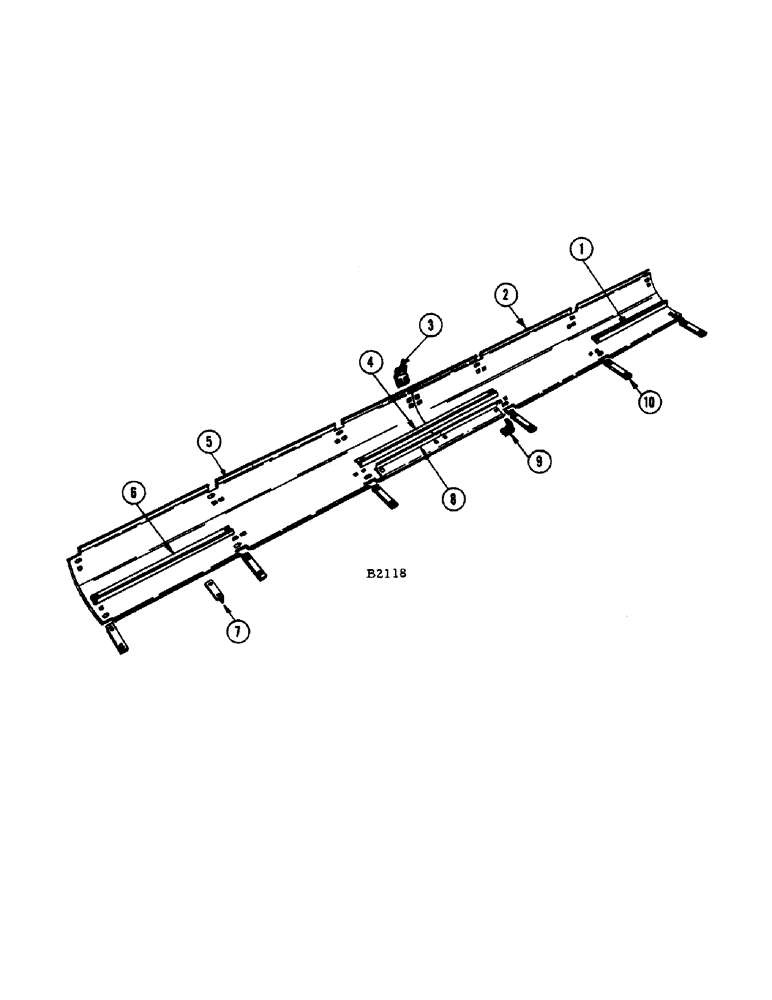

Запчасти Case IH 1010 (044) - 13 FOOT AND 14 FOOT HEADER SKID ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

F12834

REINFORCEMENT - outer L.H. (13' header)

1шт.

F12407

REINFORCEMENT - outer L.H. (14' header)

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk. and cut (129-103)

2шт.

2

F12832

PLATE - skid, L.H. (13' header)

1шт.

F12405

PLATE - skid, L.H. (14' header)

1шт.

3

F19989

SPLICE - skid plate

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk. and nut (129-103)

4шт.

4

F12408

REINFORCEMENT - inner

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk. and nut (129-103)

4шт.

5

F12833

PLATE - skid, R.H. (13' header)

1шт.

F12406

PLATE - skid, R.H. (14' header)

1шт.

6

F12835

REINFORCEMENT - outer R.H. (13' header)

1шт.

F12413

REINFORECEMENT - outer R.H. (14' header)

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk. and nut (129-103)

2шт.

7

F12412

SUPPORT

1шт.

114-104

BOLT,Hex, 5/16" - 24 x 1", Gr 5

- 5/16" x 1" N.F. hex. and nut (129-122)

2шт.

8

F12409

PLATE - space

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk. and nut (129-103)

8шт.

9

F12411

CLIP - rear

6шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

and nut (129-122) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

and nut (129-122) Hex, 5/16"-24 x 7/8", G5, Full Thd

2шт.

114-218

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5, Full Thd

- 3/8" x 7/8" N.F. hex

6шт.

195-104

WASHER,3/8"

- flat and L.W. (192-21) 3/8"

6шт.

10

F12410

CLIP - front

6шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk. and nut (129-103)

12шт.
