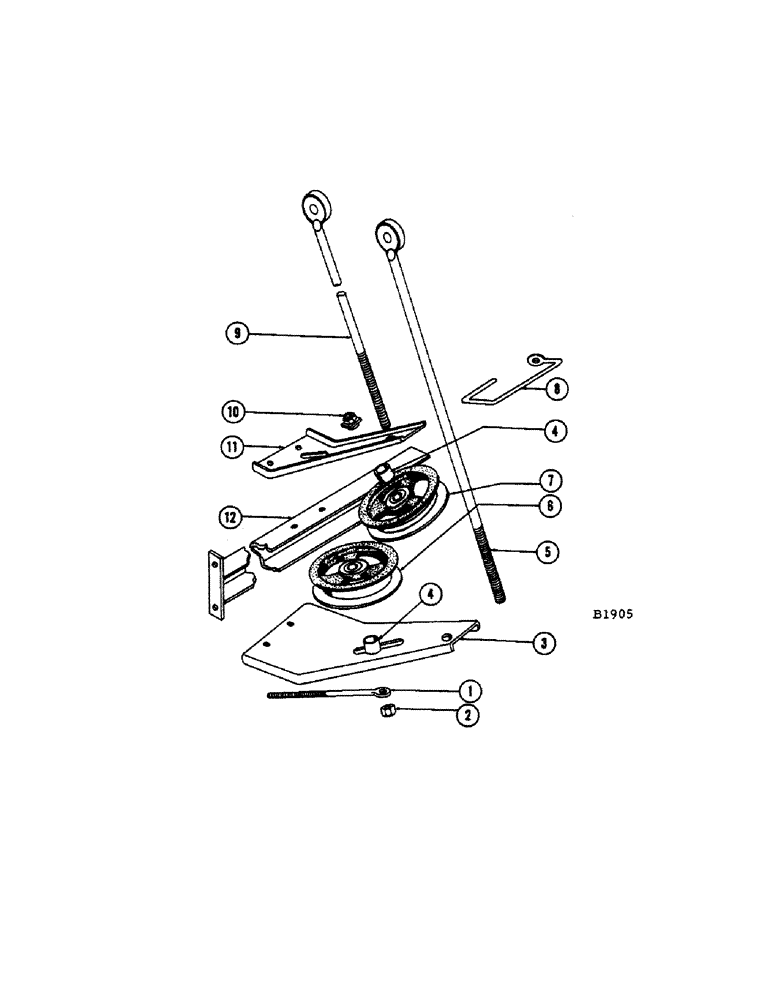

Запчасти Case IH 1010 (044[A]) - SICKLE DRIVE IDLER AND TIGHTENER (58) - ATTACHMENTS/HEADERS

1

F9585

EYEBOLT - belt tightener

1шт.

2

25-1010

NUT,5/8"-11, G5

2шт.

3

F79674

BRACKET

- lower idler

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex. and nut (25-116)

2шт.

4

F10566

SPACER - idler sheaves

2шт.

195-41

WASHER,5/8"

- flat 5/8"

2шт.

5

F11434

EYEBOLT - lower bracket

1шт.

25-157

JAM NUT,Jam, 7/16"-20, G5

- 7/16" N.F. hex. jam

2шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

3/8" x 1" N.F. hex. and nut (25-116)

1шт.

6

F86210

SHEAVE - lower idler

1шт.

F16246

BEARING, BALL

BEARING

1шт.

O3338BF

SNAP RING

1шт.

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- 5/8" x 3" N.F. hex. and nut (25-1110)

1шт.

7

F86211

SHEAVE - upper idler

1шт.

F16246

BEARING, BALL

BEARING

1шт.

O3338BF

SNAP RING

1шт.

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

and L.W. (92-10) Hex, 5/8"-18 x 2 1/4", G5

1шт.

8

F11539

GUIDE - sickle drive belt

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex. and nut (25-116)

1шт.

9

F11433

EYEBOLT - upper bracket

1шт.

25-157

JAM NUT,Jam, 7/16"-20, G5

- 7/16" N.F. hex. jam

2шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex. and nut (25-116)

1шт.

10

F75313

LOCKNUT - upper idler sheave

1шт.

11

F11431

BRACKET - upper idler

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex. and nut (25-116)

2шт.

12

F79673

CHANNEL - support (12 ft. header)

1шт.

F79520

CHANNEL - support (13 ft. and 14 ft. headers)

1шт.

F79682

CHANNEL - support (16 ft. and 18 ft. headers)

1шт.
