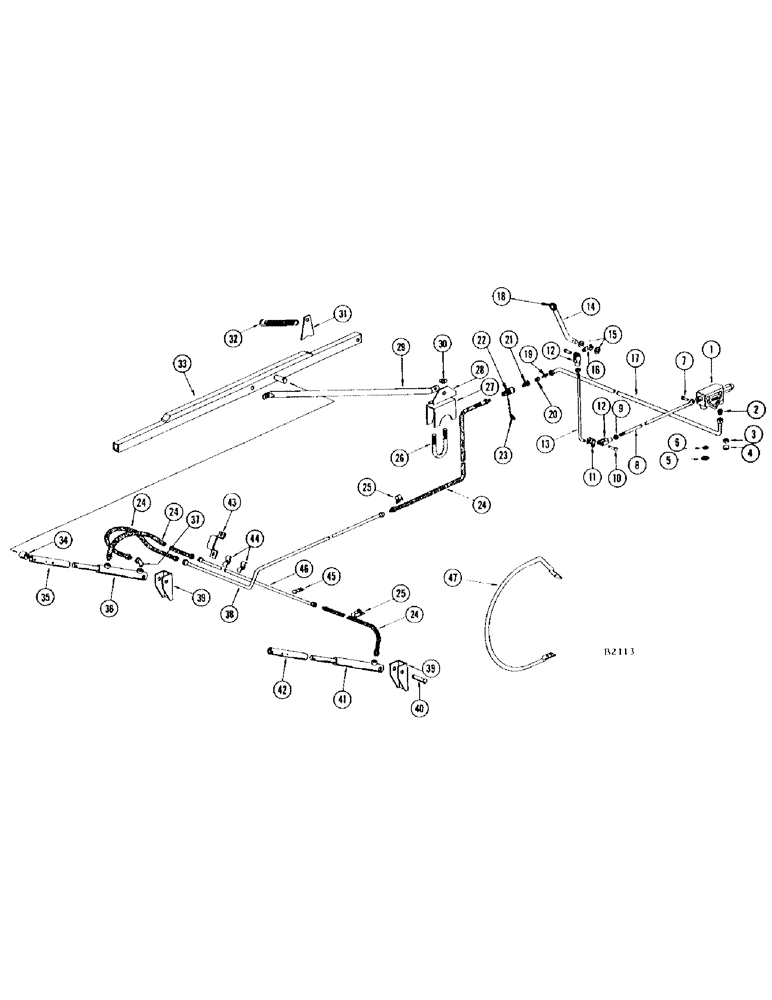

Запчасти Case IH 1010 (040) - HYDRAULIC REEL LIFT ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

F77045

VALVE - (See F86223 page 250 - also page 250 ref. 13)

1шт.

13-5104

BOLT - 5/16" x 6-1/2" N.C. hex. and L.W. (92-5)

3шт.

2

222-3001

CONNECTOR - 3/8" tube, Lenz #100-6-6 male

1шт.

3

F12260

ORIFICE - valve

1шт.

4

F8245

RETAINER - orifice, valve

1шт.

5

F8220

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

"O" RING - (3/32" x 1-1/2" I.D.) valve body

1шт.

6

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

"O" RING - (1/16" x 3/4" I.D. - 90 durometer) valve body

10шт.

7

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Control rod 3/8" x 1.060"

1шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

8

F12435

ROD - bellcrank, valve

1шт.

9

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex. jam

1шт.

10

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Control rod 3/8" x 1.060"

2шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

11

F1082

BELLCRANK

1шт.

12

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS

2шт.

13

F12381

ROD - bellcrank, steering column

1шт.

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex. jam

1шт.

14

F13172

LEVER - control

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

15

195-29

WASHER,7/16"

- flat 7/16"

2шт.

16

F86484

ARM - lever

1шт.

135-54

ROLL PIN

PIN - 3/16" x 1" driv-loc

1шт.

17

F13218

SCREW

LINE - hydraulic, Serial Range: valve-coupling

1шт.

18

F21683

KNOB

- lever control

1шт.

19

222-3000

CONNECTOR - 3/8" tube, Lenz #100-6, male

1шт.

20

F13219

SCREW

GROMMET

1шт.

21

F87147

NIPPLE - quick connect, Pioneer #4010-2

1шт.

22

F87146

COUPLER - quick connect, Pioneer #4050-2

1шт.

23

F87149

PLUG - dust, Pioneer #4005-2

1шт.

24

F12397

HOSE - hydraulic

4шт.

25

F12398

CLAMP - hose

3шт.

175-403

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

- 1/4" x 3/4" N.C. rhd. mach. and nut (129-101)

2шт.

195-518

WASHER,1/4", SAE

- 1/4" flat

2шт.

26

F8341

"U" BOLT

2шт.

129-123

NUT,3/8"-24, G5

and L.W. (192-21) 3/8"-24, G5

4шт.

27

F8298

SUPPORT - torque tube

2шт.

28

F10558

BRACKET - brace anchor

2шт.

29

F86482

BRACE

2шт.

114-307

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- 7/16" x 1-3/4" N.F. hex.

2шт.

114-604

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

and nut (129-127) Hex, 5/8"-18 x 2 3/4", G5

1шт.

114-617

SCREW,Hex, 5/8"-18 x 6", G5

BOLT - 5/8" x 6" N.F. hex. and nut (129-127)

1шт.

30

195-529

WASHER,7/16", SAE

- 7/16" flat

6шт.

31

F8314

SUPPORT - reel arm

2шт.

32

F12391

SPRING - reel idler

1шт.

33

F86480

ARM - L.H., reel support

1шт.

F86481

ARM - R.H., reel support

1шт.

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

1шт.

114-305

BOLT,Hex, 7/16" - 20 x 2-3/4", Gr 2

- 7/16" x 2-3/4" N.F. hex.

1шт.

425-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

2шт.

34

O727HT

SPACER

2шт.

35

F12403

EXTENSION - ram, R.H.

1шт.

36

F86478

RAM - R.H., reel lift

1шт.

37

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male, Parker

1шт.

38

F86487

LINE - hydraulic, feeder spout (12' header)

1шт.

F86838

LINE - hydraulic, feeder spout (13' header)

1шт.

F86489

LINE - hydraulic, feeder spout (14' header)

1шт.

F86491

LINE - hydraulic, feeder spout (16' header)

1шт.

F86493

LINE - hydraulic, feeder spout (18' header)

1шт.

39

F12401

BRACKET - ram mounting

2шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

4шт.

WASHER - 3/8" plain (195-525) L.W. (192-21)

4шт.

40

MT2854S

PIN

2шт.

PIN - 3/16" x 1" cotter (132-9)

2шт.

41

F86479

RAM - L.H. reel lift

1шт.

42

F12402

EXTENSION - ram, L.H.

1шт.

BOLT - 1/2" x 2-1/4" N.F. hex. (114-411) and lockout - 1/2" Gripco (131-168)

1шт.

43

F12399

CLAMP - double, hose

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

2шт.

44

F12067

CLIP - double, hydraulic line

3шт.

BOLT - 1/4" x 1" N.F. hex. (114-1) nut (129-121)

3шт.

45

O6168AB

CLIP - hydraulic line

2шт.

46

F86486

LINE - hydraulic, auger trough (12' header)

1шт.

F86837

LINE - hydraulic, auger trough (13' header)

1шт.

F86488

LINE - hydraulic, auger trough (14' header)

1шт.

F86490

LINE - hydraulic, auger trough (16' header)

1шт.

F86492

LINE - hydraulic, auger trough (18' header)

1шт.

47

F86494

LOOP - divider (Use with pickup reels)

2шт.

F86627

PACKAGE, REPAIR

KIT - seal, for ref. 36 (Includes 2 poppets, 1 spring, 1 seat plug, 1 washer, 1 seal and 4 "O" rings) Not shown

1шт.

F86628

KIT

- seal, for ref. 41 (Includes 1 backup washer, 1 "O" ring, 1 seal, 1 lock ring, 1 seal washer and 1 screw) Not shown

1шт.
