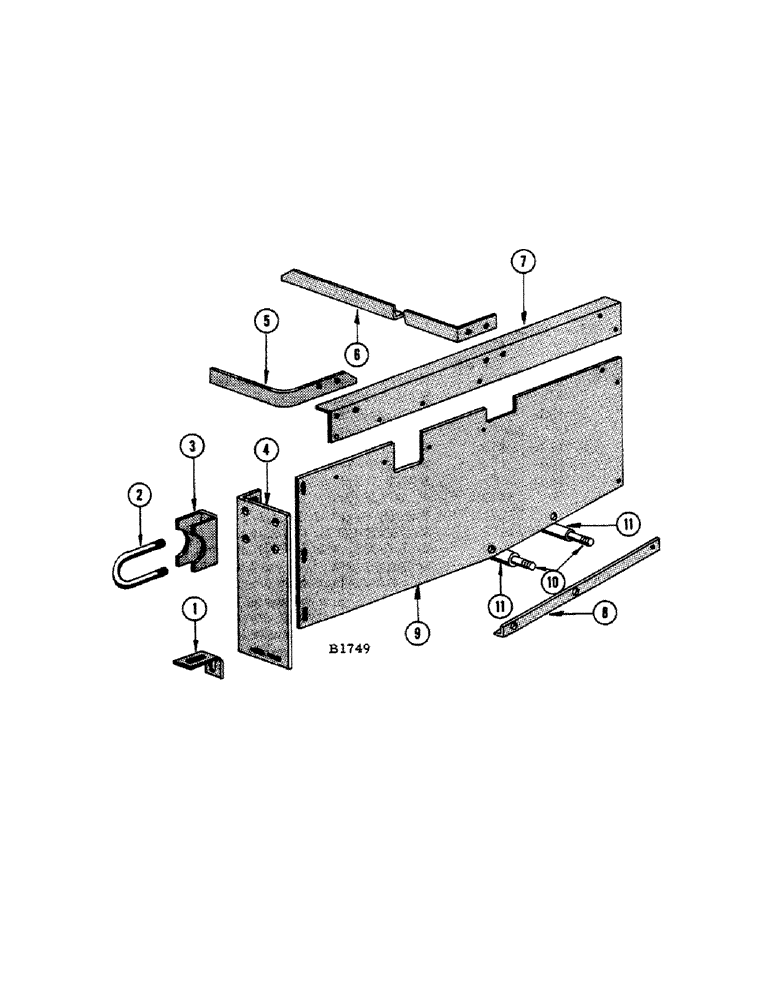

Запчасти Case IH 1010 (038[A]) - SICKLE DRIVE MUD SHIELD ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

F11586

BRACE - front shield

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

1шт.

2

F8341

"U" BOLT - torque tube support

2шт.

NUT - 3/8" N.F. hex. (129-123) L.W. (192-21)

4шт.

3

F8298

SUPPORT - torque tube

2шт.

4

F11585

FRONT SECTION - shield

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

1шт.

WASHER - 1/4" plain (195-102)

2шт.

5

F11578

SUPPORT - front, top section shield

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122)

2шт.

6

F11579

SUPPORT - rear, top section shield

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122)

2шт.

7

F11580

TOP SECTION - shield

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

6шт.

8

F11584

STIFFENER - side section

1шт.

9

F11581

SIDE SECTION - shield

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

3шт.

10

F12169

ROD - side section shield spacer

2шт.

NUT - 5/16" N.F. hex. (129-122) L.W. (192-20)

4шт.

11

F12170

SPACER - (3/8" O.D. x 9-7/8" long) side shield rod

2шт.
