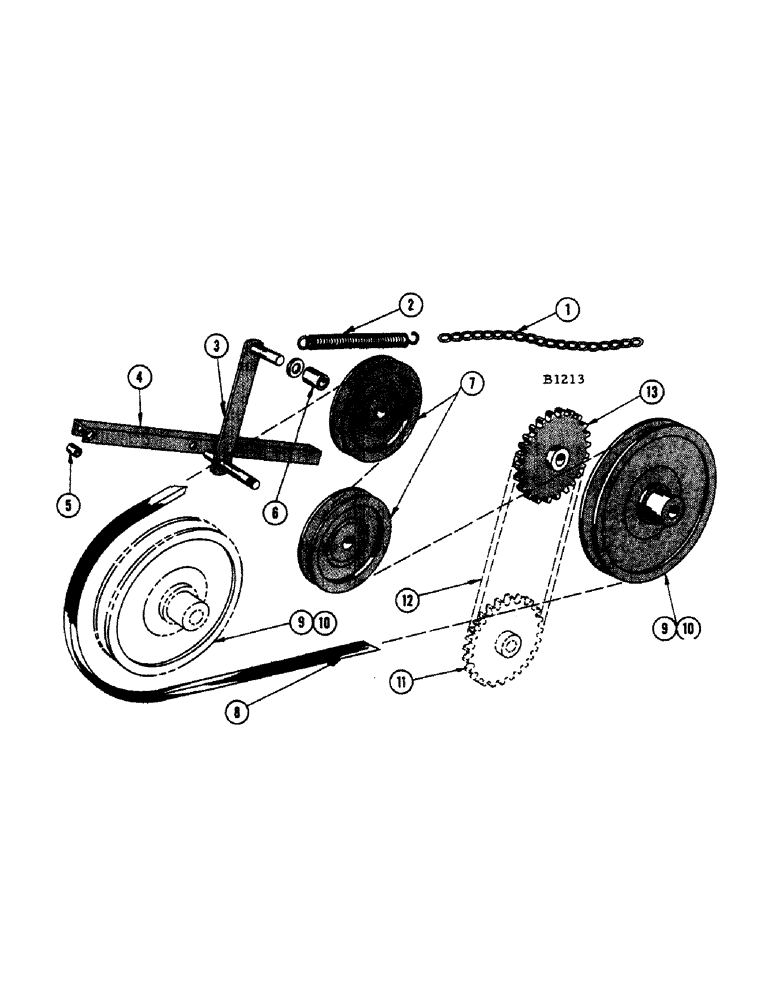

Запчасти Case IH 1010 (036[A]) - JACKSHAFT DRIVE (58) - ATTACHMENTS/HEADERS

1

O1876CH1

CHAIN - tightener tension

1шт.

2

146EB

SPRING - tightener tension

1шт.

3

F77600

BRACKET - tightener, jackshaft drive

1шт.

251110

NUT - 5/8" N.F. hex., L.W. (92-10) flat wshr. (95-10)

1шт.

13289

HOSE

PIN - 3/16" x 3/4" cotter

1шт.

4

F8870

CHANNEL - jackshaft drive tightener

1шт.

114213

BOLT - 3/8" x 2-1/4" N.F. hex. and nut (129-123)

1шт.

195104

WASHER - 3/8" flat

1шт.

114304

BOLT - 7/16" x 2-1/4" N.F. hex. and nut (129-124)

1шт.

5

C3690S

SPACER - (3/8" O.D. x 1-1/4" long) tightener channel

2шт.

6

11524K

BUSHING - (1" O.D. x 1-1/2" long) for ref. 7 sheave

2шт.

7

F11626

BEARING

SHEAVE - (6" O.D.) idler and tightener, jackshaft drive

2шт.

141060

BOLT - 5/8" x 3-3/4" N.F. hex. and nut (25-1110)

1шт.

9510

WASHER - 5/8" flat and L.W. (92-10)

1шт.

8

F14230

BELT

"V" BELT - jackshaft drive (Replaces F9428 when stocks are exhausted)

1шт.

F9428

BELT

"V" BELT - jackshaft drive (Replaced by F14230 when stocks are exhausted)

1шт.

9

F1313

SHEAVE

HALF - variable speed (Drives jackshaft) driven

1шт.

10

F1314

SHEAVE HALF - variable speed (Drives jackshaft) driven

1шт.

11

F79867

SPROCKET - (23T) drives reel drive jackshaft (Reference - see main header drive jackshaft)

1шт.

12

F9427

CHAIN (AG)

CHAIN - pickup main drive (See chain page)

1шт.

13

F77182

SPROCKET - (15T) on reel drive jackshaft (Displaces F79869)

1шт.
