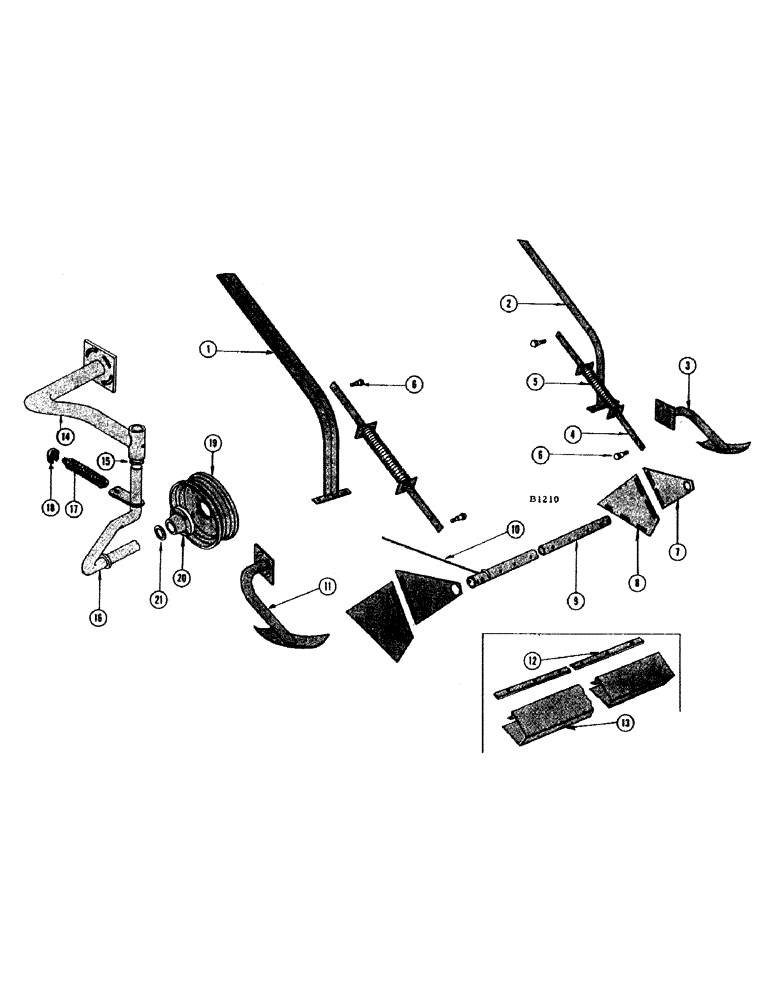

Запчасти Case IH 1010 (032) - CASE DRAPER PICKUP ATTACHMENT, PICKUP SUPPORTS (58) - ATTACHMENTS/HEADERS

1

F77180

ANGLE - mounting, R.H.

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

4шт.

WASHER - 3/8" plain (195-104) L.W. (192-21)

4шт.

2

F77179

ANGLE - mounting, L.H.

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-103)

2шт.

WASHER - 3/8" plain (195-104)

2шт.

3

F77372

RUNNER - L.H.

1шт.

NUT - 3/8" N.C. hex. (25-106) L.W. (92-6) wshr. (95-6)

4шт.

4

F77374

SUPPORT ARM - spring seat

4шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) nut (129-122)

2шт.

5

V13820

SPRING - for support arms

2шт.

6

O156CB

BOLT - shoulder, connects support arms

4шт.

NUT - 3/8" N.C. hex. (129-103) L.W. (192-21)

4шт.

7

F9981

BRACKET - windguard pipe (See F9633)

2шт.

BOLT - 7/16" x 2" N.C. tap (123-300)

2шт.

NUT - Gripco jam (131-353)

4шт.

8

F9631

BRACKET - beater support

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

4шт.

WASHER - 5/16" plain (195-103)

8шт.

9

F9638

PIPE - Windguard

1шт.

BOLT - 7/16" x 4" N.C. tap (123-301)

2шт.

NUT - Gripco jam (131-353)

4шт.

PIN - 3/16" x 2" cotter (132-99)

2шт.

10

F9639

TINE - Windguard

15шт.

NOTE: F9639 tine must be shortened 13 inches when used with feeder roll attachment.

1шт.

11

F77373

RUNNER - R.H.

1шт.

NUT - 3/8" N.C. hex. (25-106) L.W. (92-6) wshr. (95-6)

4шт.

12

F9643

WIPER - finger

2шт.

BOLT - 1/4" x 5/8" N.F. hex. ((14-410) nut (25-114)

10шт.

WASHER - 1/4" plain (95-4) L.W. (92-4)

10шт.

13

F9642

SHIELD - sickle drive

2шт.

14

F78891

ARM - L.H. support, gauge wheel, castor attachment

1шт.

FITTING - 1/8" str. Lincoln #5010 (219-8), castor wheel attachment

1шт.

F78892

ARM - R.H. support, gauge wheel, castor attachment

1шт.

FITTING - 1/8" str. Lincoln #5010 (219-8), castor wheel attachment

1шт.

15

O124GR

WASHER

- (1-1/2" O.D. x 1-1/32" I.D. #12 ga.) axle, castor wheel attachment

4шт.

16

F86973

AXLE - gauge wheel, castor attachment

2шт.

PIN - 1/4" x 1-3/4" cotter (132-307), castor wheel attachment

4шт.

17

O2818BF

SPRING - gauge wheel axle, castor attachment

2шт.

18

F12970

CLAMP - spring, castor wheel attachment

2шт.

BOLT - 1/4" x 1-1/4" N.F. hex. (14-420) dbl. nut (25-114), castor wheel attachment

2шт.

19

F11478

WHEEL - gauge, 2-disc halves, for 12 x 3.50 semipneumatic tire, castor attachment

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115), castor wheel attachment

8шт.

20

F1355

HUB - gauge wheel, castor attachment

2шт.

FITTING - 1/8" str. Lincoln #5000 (219-1), castor wheel attachment

2шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115), castor wheel attachment

8шт.

21

O46FG

WASHER - (1-3/4" O.D. x 1-1/32" I.D. #16 ga.) axle, castor wheel attachment

6шт.
