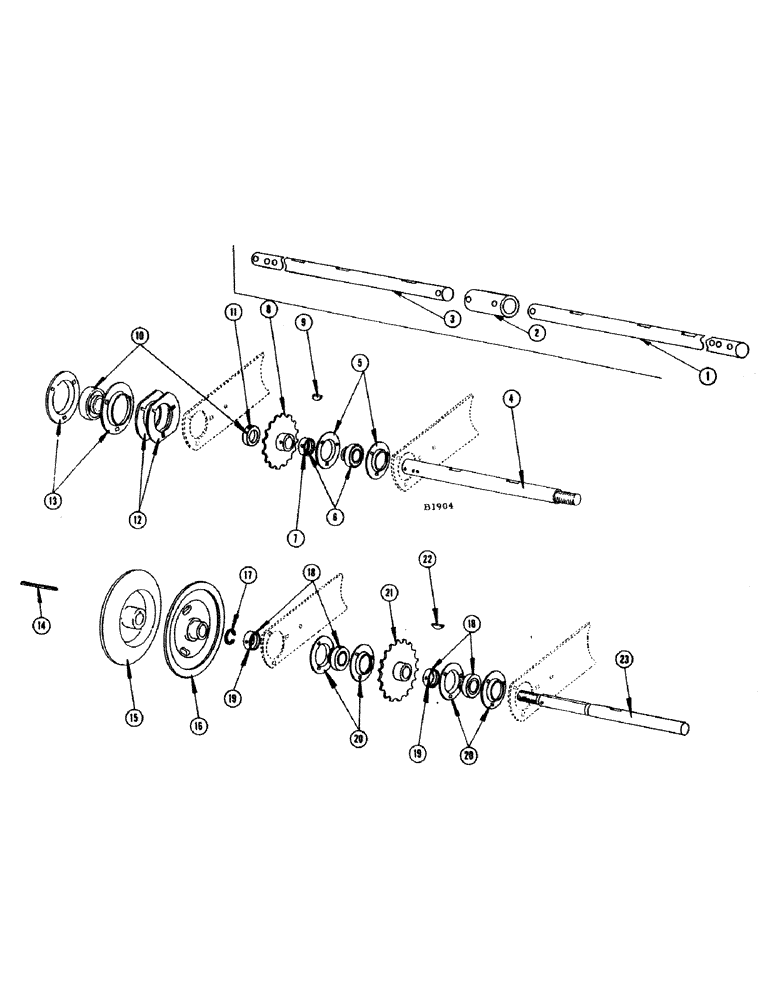

Запчасти Case IH 1010 (030) - REEL DRIVE JACKSHAFT, HEAVY DUTY HEADER AND CUTTER BAR EXTENSION (58) - ATTACHMENTS/HEADERS

1

F11911

SHAFT - reel, L.H. (Extended cutter bar)

1шт.

KEY - #15 Woodruff (126-24)

1шт.

PIN - 3/16" x 2-1/2" cotter (132-102)

1шт.

2

F11913

COUPLER - reel shafts (Extended cutter bar)

1шт.

BOLT - 3/8" x 2" N.F. hex. (14-632) dbl. nut (25-116)

2шт.

3

F11912

SHAFT - reel, R.H. (Extended cutter bar)

1шт.

KEY - #15 Woodruff (126-24)

1шт.

PIN - 3/16" x 2-1/2" cotter (132-102)

1шт.

4

F11673

JACKSHAFT - reel drive (See F11911 - F11912 and F11913)

1шт.

5

O799CB

X

FLANGE - (For ref. 6)

2шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) nut (25-105)

3шт.

6

3074CSA

BALL BEARING

- (Fafnir #RA 100 NPPB) inner end of jackshaft

1шт.

7

O3785CS

X

COLLAR

1шт.

F8393

CHAIN - drives reel drive jackshaft (Use 1-B12474 chain and 3-B12477 chain #50) Not illustrated

1шт.

8

F79881

SPROCKET ASSY.

SPROCKET - (24T and 38T dbl.) drives reel drive jackshaft

1шт.

9

126-25

WOODRUFF KEY,#B, 5/16" x 1"

KEY - "B" Woodruff (For ref. 8)

1шт.

PIN - 1/8" x 2" cotter (132-56)

1шт.

10

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - (Fafnir #RA 103 PPB-2) outer end of jackshaft

1шт.

11

O697CB

X

COLLAR

1шт.

12

F10879

SPACER - for ref. 10

2шт.

13

O650CB

X

FLANGE - for ref. 10

2шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (11-620) nut (25-106)

3шт.

14

F8896

KEY - (1/4" sq. x 3-3/4") for reel drive sheaves, standard headers

1шт.

15

F1313

SHEAVE

HALF - reel drive, standard headers

1шт.

16

F1314

SHEAVE HALF - reel drive, standard headers

1шт.

17

O5872AB

X

SNAP RING - jackshaft, standard headers

1шт.

18

3074CSA

BALL BEARING

- (Fafnir #RA 100 NPPB) jackshaft, standard headers

2шт.

19

O3785CS

X

COLLAR, standard headers

1шт.

20

O799CB

X

FLANGE - (For ref. 18), standard headers

4шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) nut (25-105), standard headers

6шт.

F8393

CHAIN - drives reel drive jackhaft (Use 1-B12474 chain and 3-B12477 chain #50) Not illustrated, standard headers

1шт.

21

F79869

SPROCKET - (26T and 38T dbl.) drives reel drive jackshaft, standard headers

1шт.

22

126-24

WOODRUFF KEY,#15, 1/4" x 1"

(For ref. 21), standard headers #15, 1/4" x 1"

1шт.

PIN - 1/8" x 2" cotter (132-56), standard headers

1шт.

23

F11670

JACKSHAFT - reel drive, standard headers

1шт.

FITTING - 1/8" str. Lincoln #5000 (219-1), standard headers

1шт.

NUT - 3/4" N.F. hex. (25-1512), standard headers

2шт.

WASHER - 3/4" plain (95-12), standard headers

1шт.
