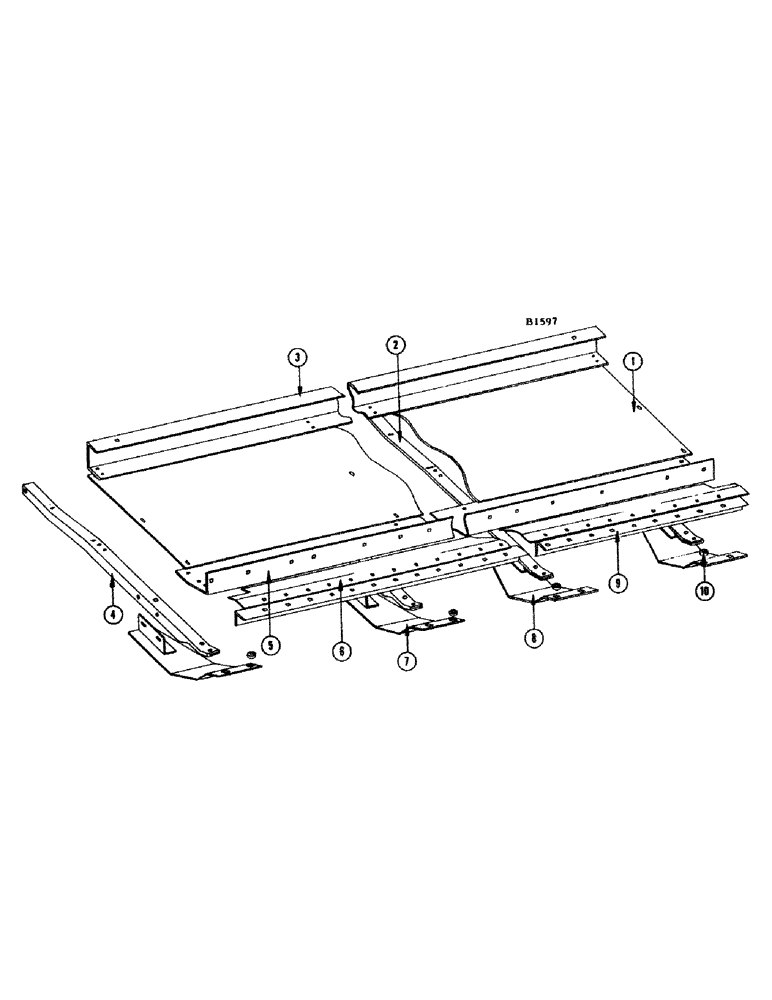

Запчасти Case IH 1010 (028) - RAILS, CUTTER BAR AND SKIDS, HEAVY DUTY EXTENDED CUTTER BAR (58) - ATTACHMENTS/HEADERS

1

F10506

FLOOR - auger trough extension

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

6шт.

2

F10501

RAIL - support, L.H.

3шт.

BOLT - 5/16" x 3/4" N.F. hex.(14-512) nut (25-115)

2шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)

3шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

6шт.

WASHER - 5/16" plain (95-5)

9шт.

3

F10502

CHANNEL - transverse

1шт.

4

F10500

RAIL - support, R.H.

3шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)

3шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

6шт.

WASHER - 5/16" plain (95-5)

3шт.

5

F10505

SUPPORT - cutter bar

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106)

6шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (11-620) nut (25-106)

6шт.

6

F10507

STRIPPER - cutter bar

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

2шт.

7

F78802

SKID PLATE - R.H., cutter bar extension

3шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (11-620) nut (25-106)

3шт.

BOLT - 3/8" x 7/8" N.F. hex. (11-614) nut (25-116)

6шт.

8

F78803

SKID PLATE - L.H., cutter bar extension

3шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (11-620) nut (25-106)

3шт.

BOLT - 3/8" x 7/8" N.F. hex. (11-614) nut (25-116)

6шт.

9

F8352

RAIL - cutter bar (Reference - see sickle and cutter bar)

1шт.

10

O437HT

SPACER - (3/8") 1 for each skid plate (Ref. 7 and 8)

6шт.
