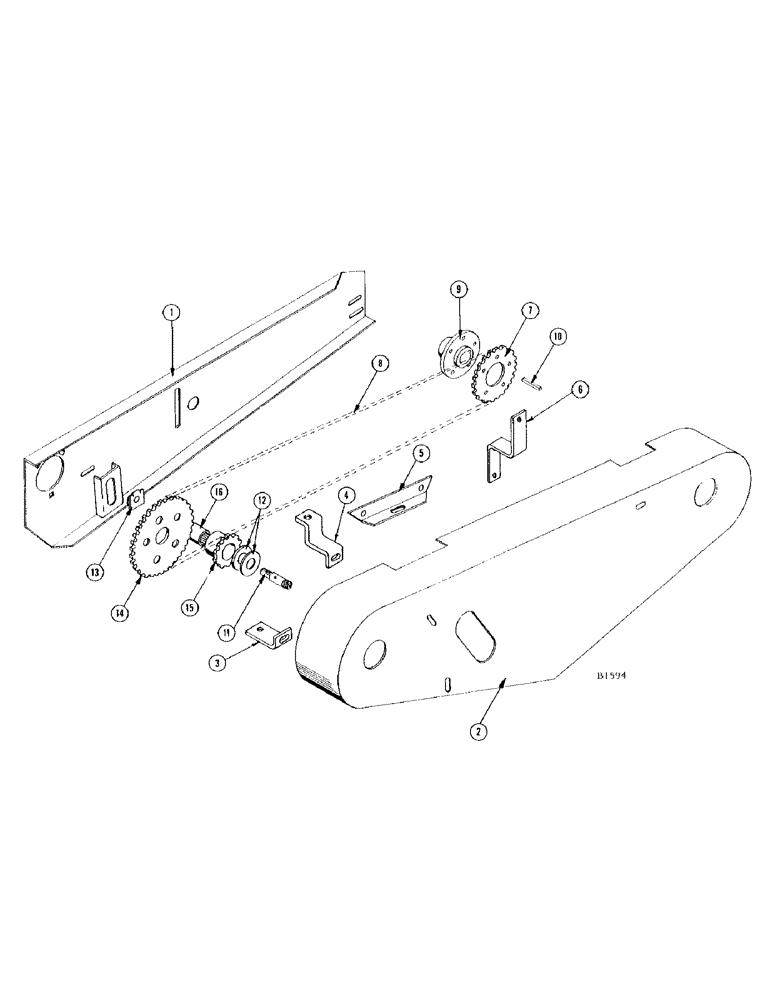

Запчасти Case IH 1010 (020) - DRAPER DRIVES, HEAVY DUTY EXTENDED CUTTER BAR (58) - ATTACHMENTS/HEADERS

1

F78813

SUPPORT - R.H., auger bearing (Replaces F77080)

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

WASHER - 3/8" plain (95-6) L.W. (92-6)

2шт.

2

F86072

SHIELD - draper drive

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

1шт.

WASHER - 5/16" plain (95-5)

2шт.

3

F11908

BRACKET - lower rear shield

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

1шт.

WASHER - 5/16" plain (95-5)

1шт.

4

F11907

BRACKET - upper rear shield

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

1шт.

WASHER - 5/16" plain (95-5)

1шт.

5

F10563

BRACKET - lower front

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)

1шт.

WASHER - 5/16" plain (95-5)

1шт.

6

F11906

BRACKET - upper front shield

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)

2шт.

7

O3540CS

SPROCKET - (26T) draper drive, driven

1шт.

8

N3305

X

CHAIN - rear draper roller drive (Use 2-B12474 chains, 1-B12475 chain, 1-B12477 chain and 1-B12506 offset link #50)

1шт.

9

2879CSA

HUB - for draper drive sprockets

1шт.

10

O4751TF

KEY - (1-1/2" tapered)

2шт.

BOLT - (14-620) NUT (25-106) L.W. (92-6)

5шт.

11

O2948BF

STUD - tightener sprocket

1шт.

FITTING - 1/8" str. Lincoln #5000 (219-1)

1шт.

12

O236CH

WASHER - (1-7/8" O.D. x 1-1/32" I.D. #16 ga.) For ref. 11

2шт.

13

F78816

LOCKNUT - for ref. 11

1шт.

14

O3539CS

SPROCKET - (35T) draper drive

1шт.

15

3554CSA

SPROCKET - (15T) auger drive tightener

1шт.

16

O2167CK

X

BEARING - (Torrington #BL 1628 OH)

1шт.
