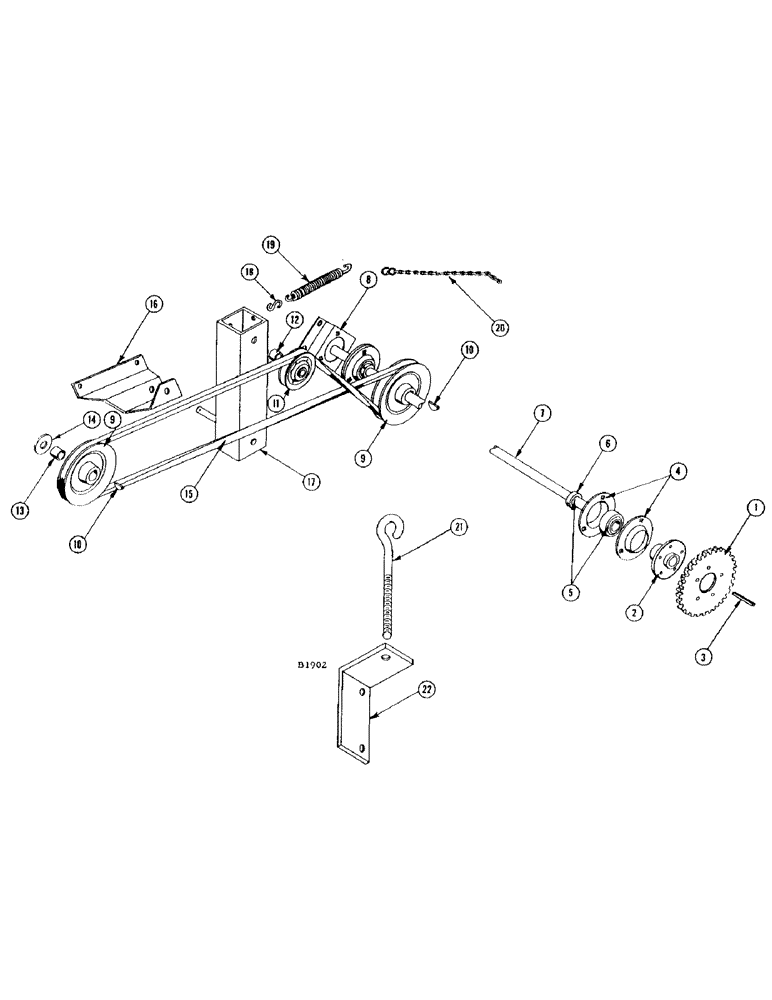

Запчасти Case IH 1010 (018) - CROSS SHAFT DRIVE, HEAVY DUTY EXTENDED CUTTER BAR (58) - ATTACHMENTS/HEADERS

1

O3539CS

SPROCKET - (35T) draper drive

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

5шт.

2

2879CSA

HUB - for draper drive sprockets

1шт.

3

O4751TF

KEY - (1-1/2" tapered)

2шт.

BOLT - (14-620) nut (25-106) L.W. (92-6)

5шт.

4

O650CB

X

FLANGETTE - for ref. 5

4шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

6шт.

5

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - (Fafnir #RA 103 PPB2)

2шт.

6

O697CB

X

COLLAR

1шт.

7

F10522

JACKSHAFT - main header drive

1шт.

8

F10521

BRACKET - bearing

1шт.

BOLT -3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

4шт.

9

A100CS

SHEAVE - cross shaft drive

2шт.

10

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

2шт.

PIN - 1/4" x 1-3/4" cotter

2шт.

11

F6845

SHEAVE

- (4-3/8" O.D.) upper idler

1шт.

BOLT - 5/8" x 3-3/4" N.F. hex. (14-1060) nut (25-1110)

1шт.

12

VC1438

SPACER - for upper idler sheave, ref. 11

1шт.

13

O2813TS1

SPACER - for ref. 9

1шт.

14

O468CH

WASHER - (2-13/16" O.D. x 1-9/32" I.D. #16 ga.) For ref. 9

1шт.

15

O754CS

V-BELT 127.87" L, Sickle drive 127.87" L

1шт.

16

F12240

BRACKET - idler pivot

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

2шт.

17

F77109

SCREW

BRACKET - reel drive tightener

1шт.

18

O5481HT

"S" HOOK - for ref. 20

1шт.

19

146EB

SPRING - reel belt tightener

1шт.

20

O293CS

CHAIN - reel belt tightener, with hook

1шт.

21

F60924

EYEBOLT - for ref. 20

1шт.

NUT - 3/8" N.C. hex. (25-106)

2шт.

22

F12239

BRACKET - drawbolt

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

1шт.

BOLT - 5/16" x 7/8" N.F. hex (14-514) nut (25-115)

1шт.
