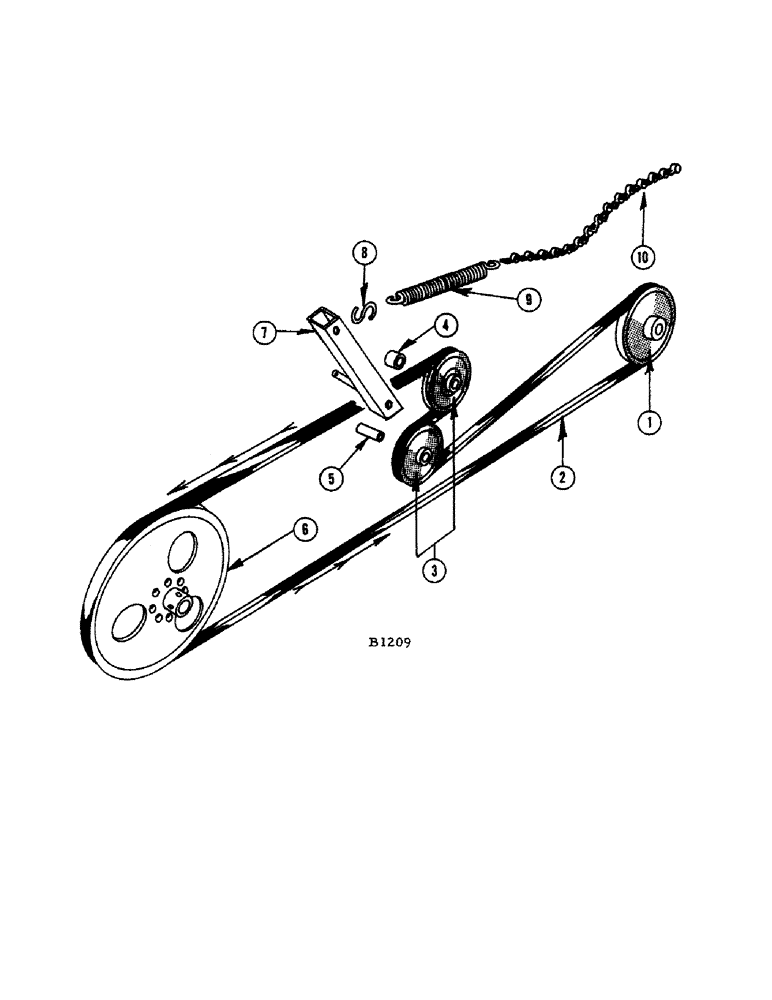

Запчасти Case IH 1010 (016) - REEL DRIVE (58) - ATTACHMENTS/HEADERS

1

F1313

SHEAVE

HALF - reel drive

1шт.

F1314

SHEAVE HALF - reel drive

1шт.

2

F8419

V-BELT

"V" BELT - reel drive

1шт.

3

F11626

BEARING

SHEAVE - idler

2шт.

BOLT - 5/8" x 3-3/4" N.F. hex. (114-609) nut (129-127)

1шт.

BOLT - 5/8" x 5-1/2" N.F. hex. (114-610) nut (129-127)

1шт.

4

VP328

SPACER - for upper idler sheave, ref. 3

1шт.

5

F10816

SPACER

- for lower idler sheave, ref. 3

1шт.

6

F82542

SHEAVE

- (23-1/8" O.D.) reel drive

1шт.

BOLT - 1/2" x 2-3/4" N.F. hex. (14-844)

1шт.

NUT - jam (25-158)

2шт.

7

F77109

SCREW

BRACKET - reel drive tightener

1шт.

PIN - 3/16" x 3/4" cotter (132-89)

1шт.

8

F20641

"S" HOOK - for ref. 10

2шт.

9

O1158FS1

SPRING - reel belt tightener

1шт.

10

F20640

CHAIN - reel belt tightener

1шт.
