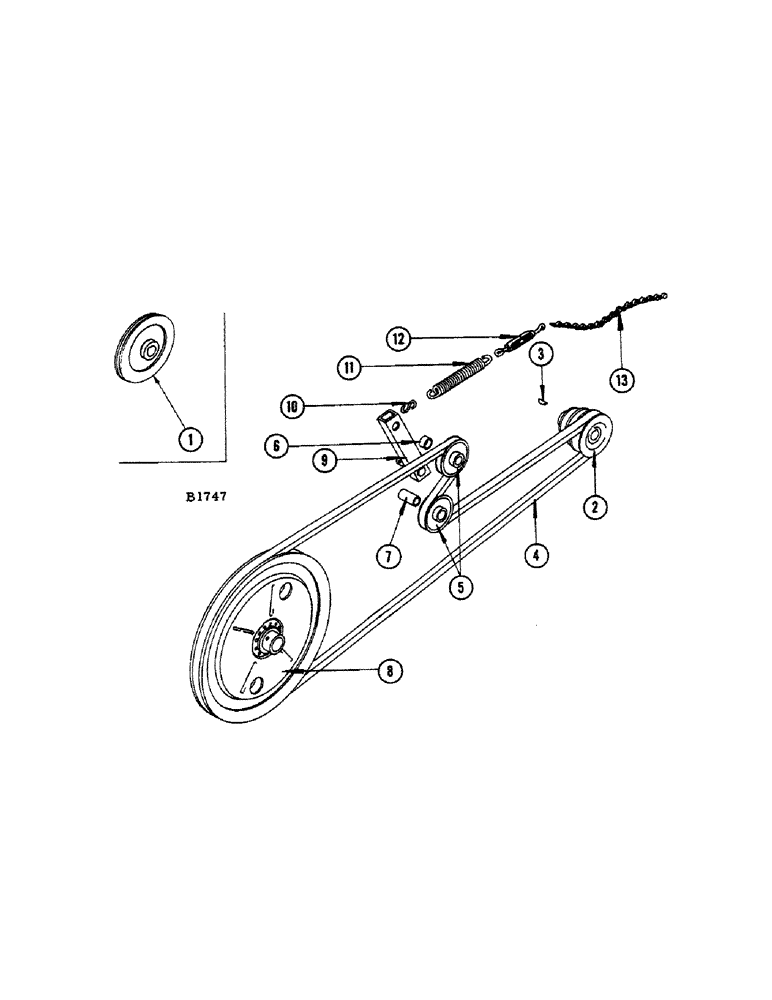

Запчасти Case IH 1010 (016[A]) - HEAVY DUTY REEL DRIVE (58) - ATTACHMENTS/HEADERS

1

F1372

SHEAVE - (Single groove) reel drive (Special - use with hydraulic controlled variable speed) Extended cutter bar

2шт.

2

F1373

SHEAVE - (Triple groove) reel drive (Extended cutter bar) See F1326

2шт.

F1326

SHEAVE - (Triple groove) reel drive (18-24-30 RPM) See F1373

1шт.

3

126-25

WOODRUFF KEY,#B, 5/16" x 1"

KEY - 5/16" x 1" ("B" Woodruff)

1шт.

PIN - 3/16" x 2-1/2" cotter (132-102)

1шт.

4

F8819

V-BELT

"V" BELT - reel drive (See F10559)

1шт.

F10559

"V" BELT - reel drive (Extended cutter bar) See F8819

1шт.

5

F11626

BEARING

SHEAVE - (6" O.D.) idler, reel drive (4 used with extended cutter bar)

2шт.

BOLT - 5/8" x 3-3/4" N.F. hex. (114-609) nut (129-127)

1шт.

BOLT - 5/8" x 5/1/2" N.F. hex. (114-610) nut (129-127)

1шт.

6

VP328

SPACER - for upper idle sheave (2 used with extended cutter bar)

1шт.

7

F10816

SPACER

- for lower idler sheave (2 used with extended cutter bar)

1шт.

8

F82845

SHEAVE - reel drive (On reel shaft) 2 used with extended cutter bar

1шт.

BOLT - 1/2" x 2-1/4" N.F. hex. (14-844)

1шт.

NUT - jam (25-158)

2шт.

9

F77109

SCREW

BRACKET - reel drive tightener (2 used with extended cutter bar)

1шт.

10

F20641

"S" HOOK - for ref. 13

2шт.

11

O1158FS1

SPRING - reel belt tightener (2 used with extended cutter bar)

1шт.

12

F10915

TURNBUCKLE - reel drive belt adustment (2 used with extended cutter bar)

1шт.

NUT - 1/4" N.C. hex. (129-101)

1шт.

13

F20640

CHAIN - reel belt tightener (2 used with extended cutter bar)

1шт.

F79192

DRIVE - reel chain

1шт.
