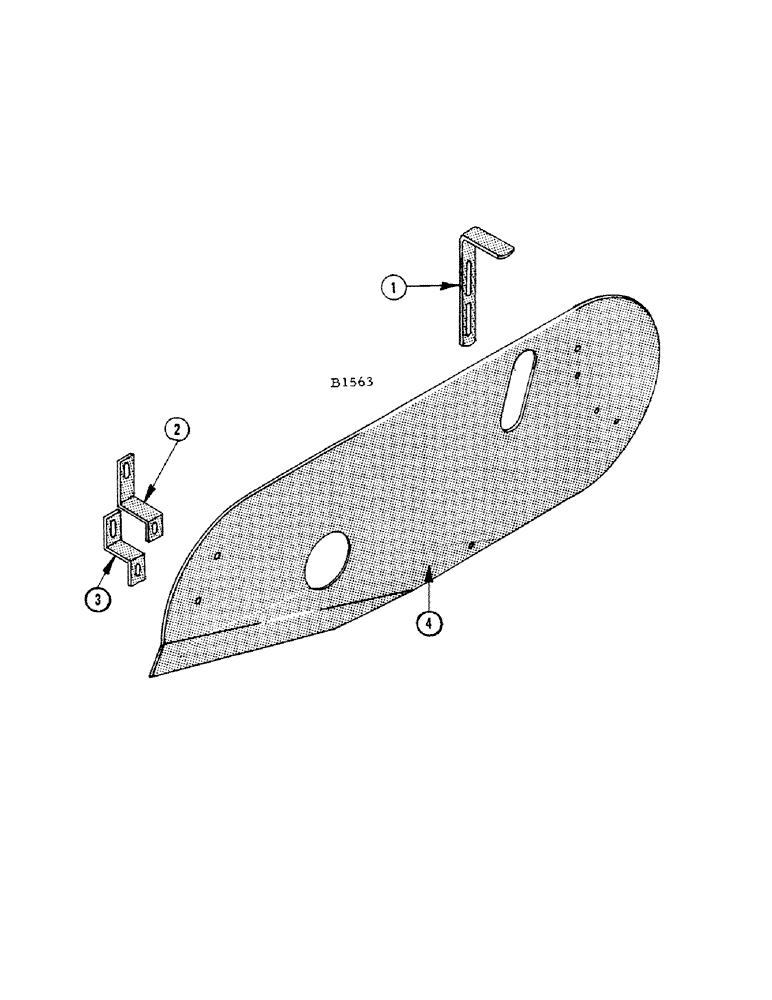

Запчасти Case IH 1010 (014) - REEL AND AUGER GUARD ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

F10546

STRAP - reel drive shield

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121)

2шт.

WASHER - 1/4" plain (195-102) L.W. (192-19)

2шт.

2

F10547

CLIP - auger shield

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

1шт.

WASHER - 1/4" plain (195-102) L.W. (192-19)

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)

1шт.

WASHER - 5/16" plain (95-5) L.W. (92-5)

1шт.

3

F10548

CLIP - auger shield

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

2шт.

WASHER - 1/4" plain (195-102) L.W. (192-19)

2шт.

4

F78831

SHIELD - auger and reel chain

1шт.
