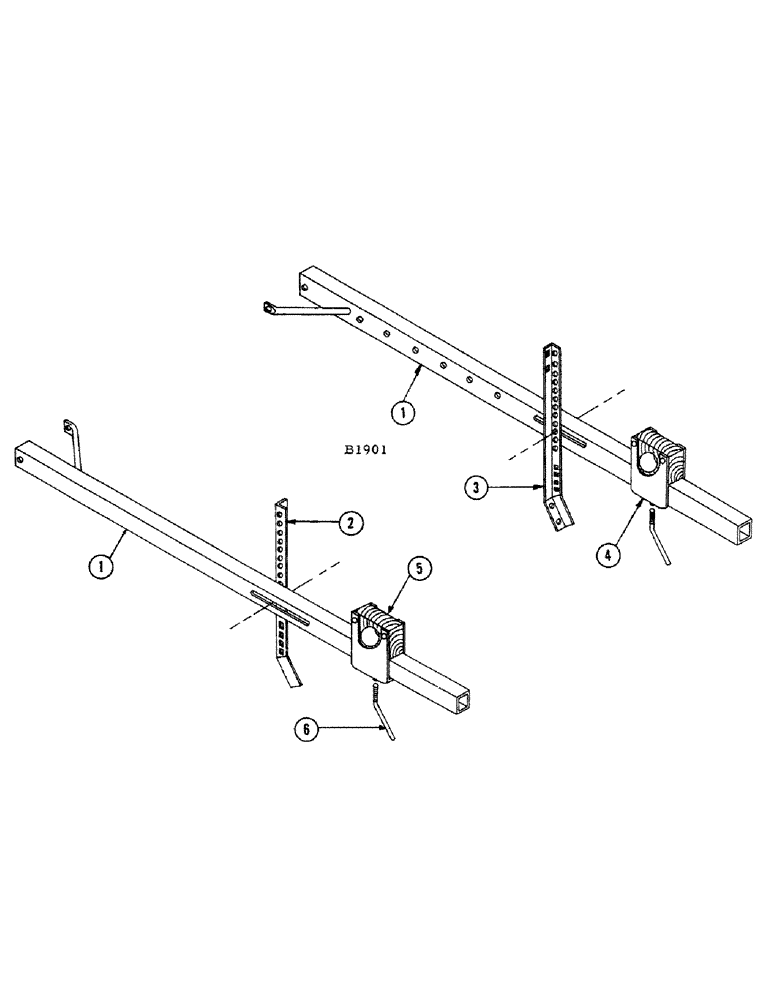

Запчасти Case IH 1010 (014[A]) - REEL SUPPORTS (58) - ATTACHMENTS/HEADERS

1

F77107

SCREW

ARM - reel support

2шт.

BOLT - 7/16" x 1-1/2" N.F. hex. (114-303) dbl. nut (129-124)

2шт.

BOLT - 7/16" x 2-3/4" N.F. hex. (114-305) dbl. nut (129-124)

2шт.

BOLT - 3/8" x 2-1/4" N.F. hex. (114-213) nut (129-123)

2шт.

WASHER - 3/8" plain (195-104) L.W. (192-21)

2шт.

2

F8408

RAIL - reel support, R.H.

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) nut (129-102)

2шт.

3

F8407

RAIL - reel support, L.H.

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) nut (129-102)

2шт.

4

F79591

BEARING

SUPPORT - reel shaft

2шт.

5

F4082

BEARING - (Wood)

1шт.

RIVET - 1/4" x 1-7/8" rhd. (45-430)

2шт.

6

F11320

HANDLE - locking

2шт.
