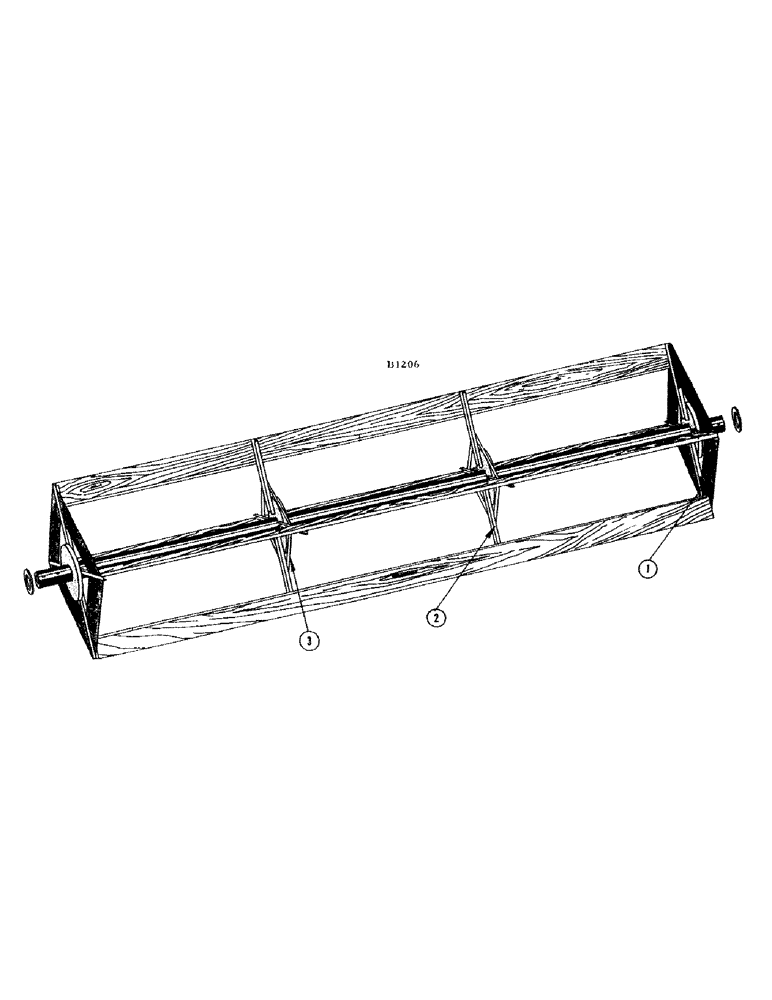

Запчасти Case IH 1010 (012) - REEL CONVERSION KIT, FOUR BAT TO SIX BAT (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
F8463
CLOSURE - reel end (For 6 bat reel)
12шт.
BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)
16шт.
F8463
CLOSURE - reel end (13 ft. header)
12шт.
BOLT - 1/4" x 1/2" N.C. hex. (113-1) nut (129-101)
16шт.
2
F9236
ARM
- reel
8шт.
BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)
16шт.
F9236
ARM
- reel (13 ft. header)
6шт.
BOLT - 1/4" x 1/2" N.C. hex. (113-1) nut (129--101)
12шт.
3
F9239
STRAP - tie, reel arms (For 6 bat reel)
12шт.
BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)
4шт.
F9239
STRAP - tie, reel arms (13 ft. header)
6шт.
BOLT - 1/4" x 1/2" N.C. hex. (113-1) nut (129-101)
2шт.
F10036
STRAP - tie, reel arm, 4 or 6, Serial Range: bat-3
12шт.
BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121), 4 or 6, Serial Range: bat-3
12шт.
F86622M
REEL - 12 ft. pickup (Machinery item), harrison
1шт.
F86849M
REEL - 13 ft. pickup (Machinery item), harrison
1шт.
F86623M
REEL - 14 ft. pickup (Machinery item), harrison
1шт.
F86624
REEL - 16 ft. pickup (Machinery item), harrison
1шт.
F12855
BAT - reel filler - for 12, 13, 14, and 16 ft. (#8262501 and after), attachment
12шт.
BOLT - 1/4" x 1" rhd sq. nk. (111-111) nut (129-101), reel filler attachment
24шт.
BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121), reel filler attachment
24шт.
F8898
BAT - (metal) reel filler, L.H. (Before #826501), attachment
6шт.
BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121), reel filler attachment
6шт.
BOLT - 1/4" x 1" rhd. sq. nk. (111-111) nut (129-101), reel filler attachment
15шт.
F8899
BAT - (metal) reel filler, R.H. (Before #8262501), attachment
6шт.
BOLT - 1/4" x 1/2" N.F. hex (114-2) nut (129-121), reel filler attachment
6шт.
BOLT - 1/4" x 1" rhd. sq. nk. (111-111) nut (129-101), reel filler attachment
15шт.
F10271
BAT - reel filler, center (16 ft. reels), attachment
6шт.
BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121), reel filler attachment
12шт.
O708CK
STRAP - tie, reel arm, filler attachment
24шт.
BOLT - 1/4" x 1-1/4" N.F. hex. (114-6) nut (129-121), reel filler attachment
12шт.
O134B
WASHER, reel filler attachment
12шт.
Выбрано товаров: 32
