Запчасти Case IH 1010 (420) - A21281 STARTER, 301 DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

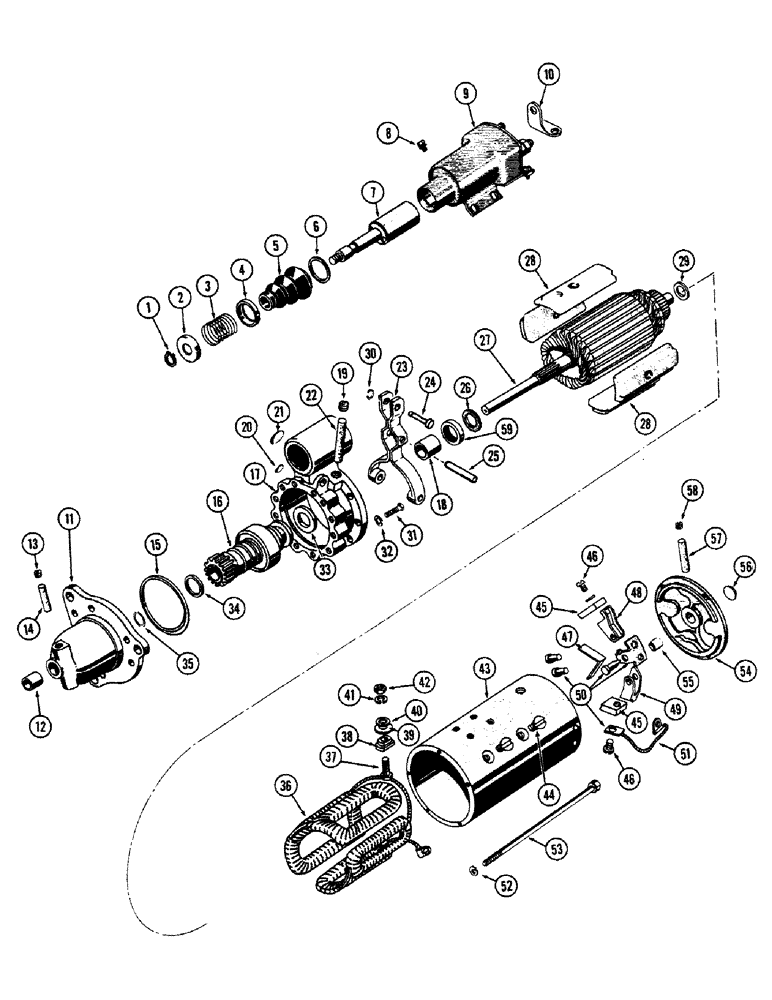

Схема запчастей Case IH 1010 - (420) - A21281 STARTER, 301 DIESEL ENGINE (55) - ELECTRICAL SYSTEMS
4
21
17
40
16
14
10
56
11
50
49
55
24
28
19
29
39
28
41
12
45
27
3
1
52
18
42
23
31
34
22
36
20
47
35
43
15
6
53
25
45
48
33
54
58
38
5
46
57
8
2
59
9
44
51
7
26
37
30
46
13
32

Артикул

Название

Примечание

Количество

A21281

STARTING MOTOR

MOTOR ASSY. - starter (Delco-Remy #1113634)

1шт.

1

A40422

RING

RING - snap, starter spring

1шт.

2

NSS

NOT SOLD SEPARAT

RETAINER - plunger spring

1шт.

3

R21569

X

SPRING - return, plunger

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - spring, plunger

1шт.

5

R21576

BOOT

BOOT - dust, switch

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - retainer, spring

1шт.

7

A25394

PLUNGER

PLUNGER - switch, starter

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - attaching, switch

4шт.

9

A40461

IGNITION SWITCH

SWITCH ASSY. - solenoid, starter

1шт.

10

A25370

CONNECTOR, ELEC

CONNECTOR CONNECTOR - switch

1шт.

11

A25347

SPARE PART HOUSING - drive, starter

1шт.

12

R15046

SPACER

BUSHING - drive housing

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG - pipe, housing

1шт.

14

NSS

NOT SOLD SEPARAT

WICK - oil, drive housing

1шт.

15

NSS

NOT SOLD SEPARAT

GASKET - drive hsg., to lever hsg.

1шт.

16

A25338

DRIVE

DRIVE ASSY. - starter

1шт.

16

87421542

REMAN-STARTER DRIVE

Drive Assy, Starter

1шт.

16

87421543

CORE-STARTER

Return Part Number

1шт.

17

A25405

HOUSING

HOUSING - starter lever

1шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - lever housing

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - pipe, lever housing

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG - expansion, lever hsg. (1/2" dia.)

1шт.

21

NSS

NOT SOLD SEPARAT

PLUG - expansion, lvr. hsg. (1-3/16" dia.)

1шт.

22

NSS

NOT SOLD SEPARAT

WICK - oil, lever housing

1шт.

23

A25398

LEVER

LEVER - shift, starter

1шт.

24

A25400

PIN

PIN - lever, starter shifter

1шт.

25

A25402

STUD

STUD - lever, starter shift

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - spacer, lever hsg. & arm

1шт.

27

A25312

X

ARMATURE ASSY. - starter

1шт.

28

R15115

SHOE

SHOE - pole

4шт.

29

NSS

NOT SOLD SEPARAT

WASHER - spacer

1шт.

30

A25406

OIL SEAL

RING - lever pin

1шт.

31

NSS

NOT SOLD SEPARAT

LOCKWASHER - attach. bolt

4шт.

32

NSS

NOT SOLD SEPARAT

BOLT - attach., lever & drive hsg.

4шт.

33

NSS

NOT SOLD SEPARAT

WASHER - brake, lever hsg. & drive

1шт.

34

R15049

COLLAR

COLLAR - pinion stop

1шт.

35

R15048

RING

RING - pinion stop retaining

1шт.

36

R21557

COIL ASSY.

COIL ASSY. - field, starter

1шт.

37

R15017

STUD

STUD - terminal

1шт.

38

NSS

NOT SOLD SEPARAT

BUSHING - terminal stud

1шт.

39

NSS

NOT SOLD SEPARAT

WASHER - insulated, term. stud

1шт.

40

NSS

NOT SOLD SEPARAT

WASHER - plain, term. stud

1шт.

41

NSS

NOT SOLD SEPARAT

LOCKWASHER - terminal stud

1шт.

42

NSS

NOT SOLD SEPARAT

NUT - terminal stud

1шт.

43

NSS

NOT SOLD SEPARAT

BODY - starter (Order A21281)

1шт.

44

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

4шт.

45

A20897

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

4шт.

46

NSS

NOT SOLD SEPARAT

SCREW - attaching, brush

4шт.

47

R15025

SPRING

SPRING - brush

2шт.

48

R21590

HOLDER

HOLDER - insulated, brush

2шт.

49

A40217

HOLDER

HOLDER - ground, brush

2шт.

50

R15029

BRUSH

KIT - replacement, brush holder

1шт.

51

R15030

ELECTRICAL WIRE

WIRE LEAD - ground, brush

2шт.

52

NSS

NOT SOLD SEPARAT

LOCKWASHER - thru bolt

2шт.

53

A25373

BOLT

BOLT - thru, starter body

2шт.

54

R15019

FUNNEL

FRAME END ASSY. - frame, commutator

1шт.

55

R15020

BUSHING

BUSHING - end assy., commutator

1шт.

56

NSS

NOT SOLD SEPARAT

PLUG - expansion, end frame

1шт.

57

NSS

NOT SOLD SEPARAT

WICK - oil, end frame

1шт.

58

NSS

NOT SOLD SEPARAT

PLUG - pipe, end frame

1шт.

59

A25407

OIL SEAL

SEAL - oil lever housing

1шт.

Выбрано товаров: 62
