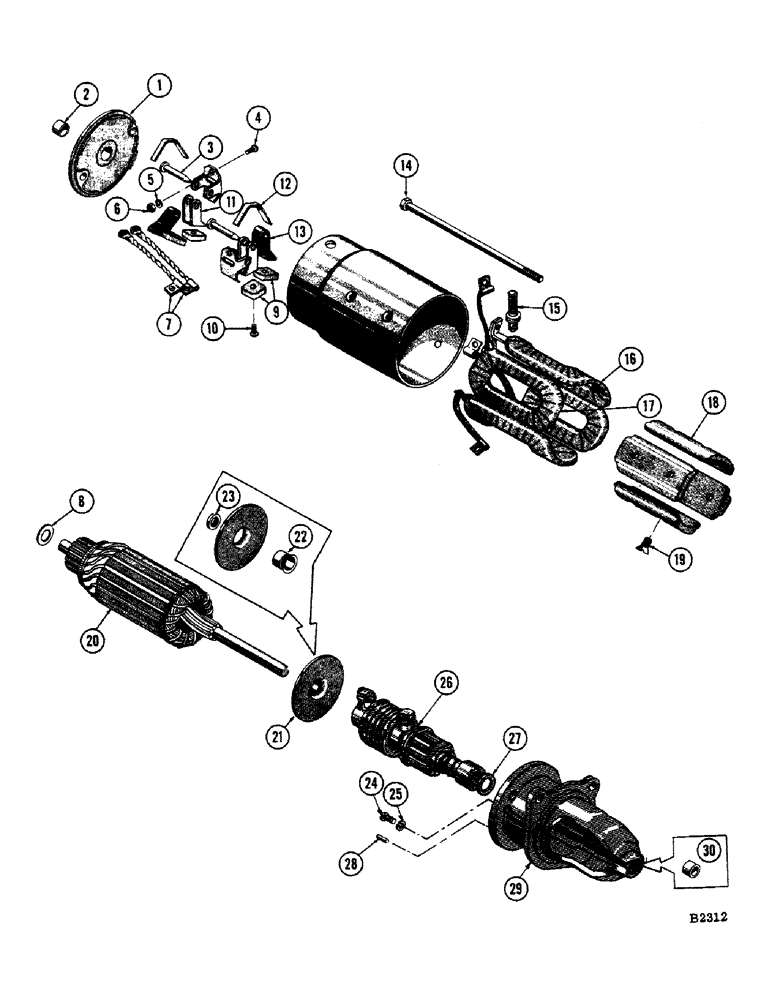

Запчасти Case IH 1010 (345C) - MODEL GO 298 ENGINE, STARTER (55) - ELECTRICAL SYSTEMS

F86518

STARTER

1шт.

1

A25302

FUNNEL

FRAME ASSEMBLY - commutator end

1шт.

2

NSS

NOT SOLD SEPARAT

BUSHING - commutator end

1шт.

A25379

KIT

- service, brush holder support

2шт.

3

NSS

NOT SOLD SEPARAT

PIN - brush support

2шт.

4

NSS

NOT SOLD SEPARAT

SCREW - attaching, support

4шт.

5

NSS

NOT SOLD SEPARAT

LOCKWASHER - support, attaching screw

4шт.

6

NSS

NOT SOLD SEPARAT

NUT - support attaching screw

4шт.

7

A25363

ELECTRICAL WIRE

LEAD - brush ground

2шт.

8

NSS

NOT SOLD SEPARAT

WASHER - space, commutator end

1шт.

9

A20893

BRUSH

4шт.

10

NSS

NOT SOLD SEPARAT

SCREW AND LOCKWASHER - brush attaching

4шт.

11

A40217

HOLDER

- ground brush

2шт.

12

A25359

SPRING

- brush

2шт.

13

A40521

HOLDER

- insulated brush

2шт.

14

A25375

X

BOLT - thru

2шт.

15

A25328

STUD - terminal, starter

1шт.

16

A40754

COIL ASSEMBLY - field

1шт.

17

A40753

COIL - shunt

1шт.

18

A40747

SHOE - pole

4шт.

19

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

4шт.

20

A40752

ARMATURE

1шт.

21

A40215

PLATE ASSY.

PLATE - center bearing

1шт.

22

NSS

NOT SOLD SEPARAT

BUSHING - center bearing

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - oil, center bearing

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW - attaching center bearing

2шт.

25

NSS

NOT SOLD SEPARAT

LOCKWASHER - center bearing attaching

2шт.

26

A40687

DRIVE ASSEMBLY - motor

1шт.

27

A25381

WASHER - space, drive end

1шт.

28

NSS

NOT SOLD SEPARAT

PIN - dowel, drive end

1шт.

29

A40751

HOUSING - drive

1шт.

30

A25386

BUSHING - drive end

1шт.
