Запчасти Case IH 1010 (344) - MODEL GO 298 ENGINE, GENERATOR (55) - ELECTRICAL SYSTEMS

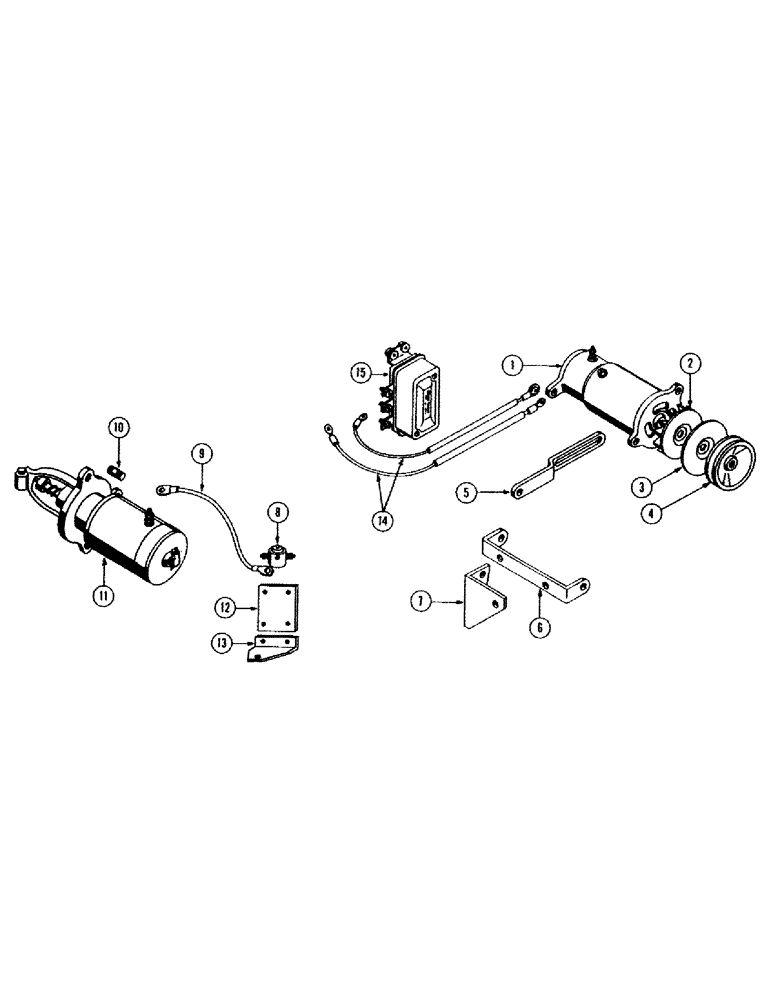

Схема запчастей Case IH 1010 - (344) - MODEL GO 298 ENGINE, GENERATOR (55) - ELECTRICAL SYSTEMS
12
2
14
4
8
3
13
7
5
10
1
15
6
11
9

Артикул

Название

Примечание

Количество

1

F78942

GENERATOR - (Delco #1102023)

1шт.

2

R16180

FAN

- generator

1шт.

3

B50533

BAFFLE - generator fan

1шт.

4

B50675

PULLEY - generator

1шт.

5

B50676

ARM - generator adjusting

1шт.

6

B50640

BRACKET - generator

1шт.

7

B50639

SUPPORT - generator

1шт.

F10672

BELT - fan and generator drive (Delco #203855) not shown

1шт.

8

F10667

X

SWITCH - starter solenoid

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114), starter

2шт.

9

F10683

CABLE - solenoid to starting motor

1шт.

10

B50365

STUD - starting motor

1шт.

11

F86518

MOTOR - starting, (Delco #1108181)

1шт.

12

F10777

BRACKET - solenoid mounting, starter

1шт.

BOLT - 5/16" x 1-1/4" N.F. hex. (14-620) nut (25-116), starter

2шт.

13

F10778

BRACKET - mounting, battery tray, voltage regulator

1шт.

BOLT - 5/16" x 1-1/4" N.F. hex. (14-520) nut (25-115), voltage regulator

1шт.

14

O5224AB

CABLE - regulator to generator field, regulator to generator arm, voltage regulator

2шт.

15

F10770

REGULATOR - voltage (Delco-Remy #118896)

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114), voltage regulator

3шт.

Выбрано товаров: 20
