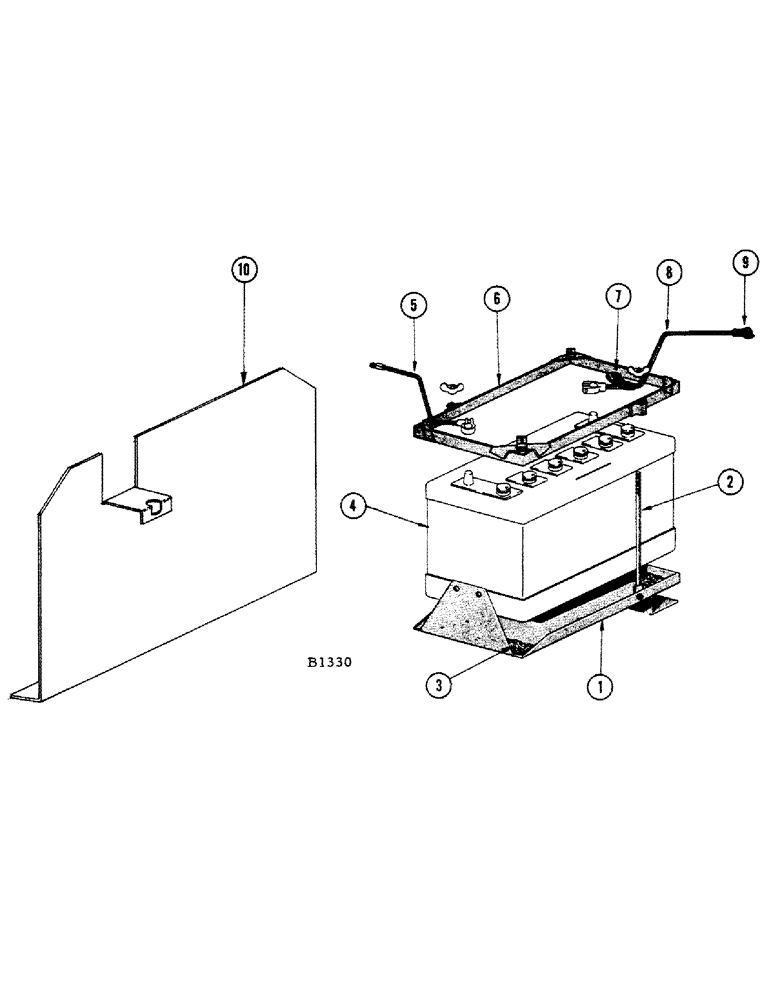

Запчасти Case IH 1010 (234) - BATTERY TRAY, GASOLINE (55) - ELECTRICAL SYSTEMS

1

F77032

TRAY - battery

1шт.

F86762

TRAY - battery (Chrysler only)

1шт.

2

A7368

ROD - hold down

2шт.

49-510

RIVET - 5/16" x 5/8" W.B. hd.

2шт.

129-410

WING NUT,3/8"-16

NUT - 3/8" N.C. wing

2шт.

3

A7390

PAD - rubber

2шт.

4

A11163

X

BATTERY - 12 volt

1шт.

5

A7441

CABLE

- battery ground

1шт.

A21363

CABLE

- battery ground (Hercules engine only)

1шт.

6

A11243

FRAME - battery clamp

1шт.

7

A27072

COVER

- positive terminal

1шт.

8

A21363

CABLE

-, Serial Range: battery-starter

1шт.

A20634

CABLE - battery to starter (Chrysler only)

1шт.

G44027

CABLE - battery to starter (Hercules only)

1шт.

F12300

CLIP - for A20634 cable (Not shown)

1шт.

9

A21753

CAP

NIPPLE - (Rubber) positive terminal

1шт.

F10778

BRACKET - mounting, battery tray (Hercules only)

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.F. hex and nut (25-115)

2шт.

10

F13227

HEAT SHIELD

SHIELD - heat (Chrysler only)

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

and nut (25-115) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

195-21

WASHER,5/16"

- flat and L.W. (92-5) 5/16"

2шт.
