Запчасти Case IH 1010 (234[A]) - BATTERY TRAY, DIESEL (55) - ELECTRICAL SYSTEMS

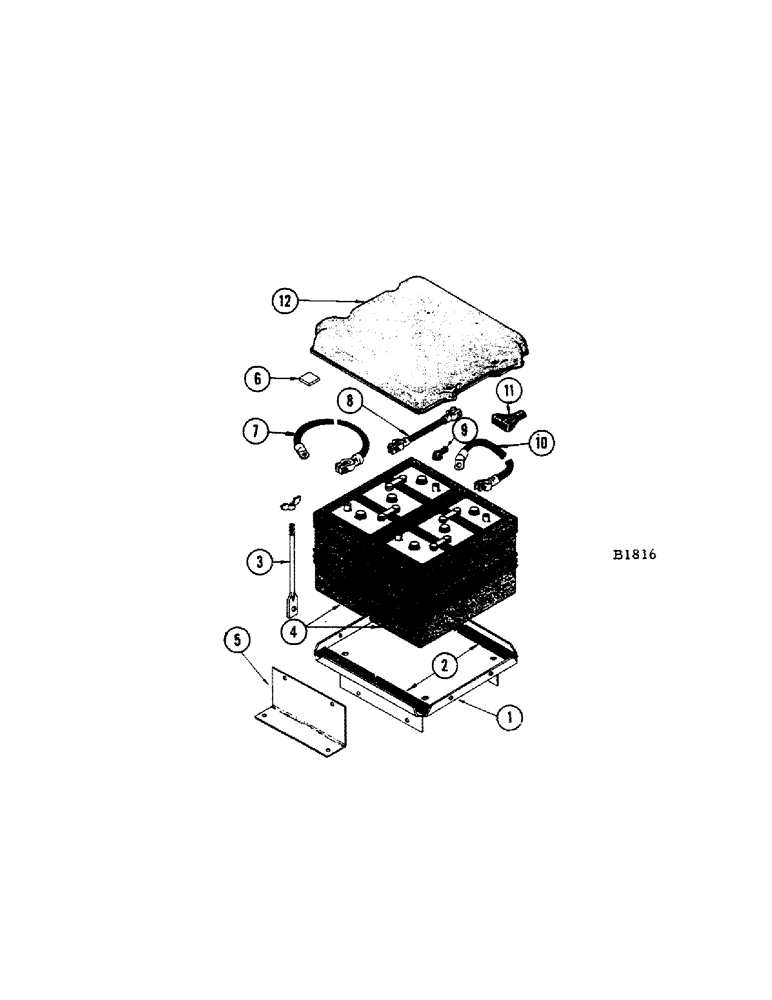

Схема запчастей Case IH 1010 - (234[A]) - BATTERY TRAY, DIESEL (55) - ELECTRICAL SYSTEMS
2
6
5
10
7
8
1
3
11
4
9
12

Артикул

Название

Примечание

Количество

1

F86586

TRAY - battery (Replaces F77881)

1шт.

2

A7390

PAD - rubber

4шт.

3

A7368

ROD - hold down

4шт.

49-510

RIVET - 5/16" x 5/8" W.B. hd.

4шт.

129-410

WING NUT,3/8"-16

NUT - 3/8" N.C. wing

4шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

and nut (25-115) Hex, 5/16"-24 x 3/4", G5, Full Thd

3шт.

4

A8325

BATTERY - 6 volt

2шт.

5

F12451

BRACKET - battery support

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , and nut (25-115) Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex. and nut (25-114)

2шт.

6

A27203

WASHER

PAD - rubber, For ref. 12

4шт.

7

A7441

CABLE

-, Serial Range: battery-ground

1шт.

8

A7440

CABLE

-, Serial Range: battery-battery

1шт.

9

A21753

CAP

NIPPLE - (Rubber) positive terminal

1шт.

10

A21363

CABLE

-, Serial Range: battery-starter

1шт.

11

A27072

COVER

- positive terminal

2шт.

12

A7382

COVER - battery

1шт.

Выбрано товаров: 17
