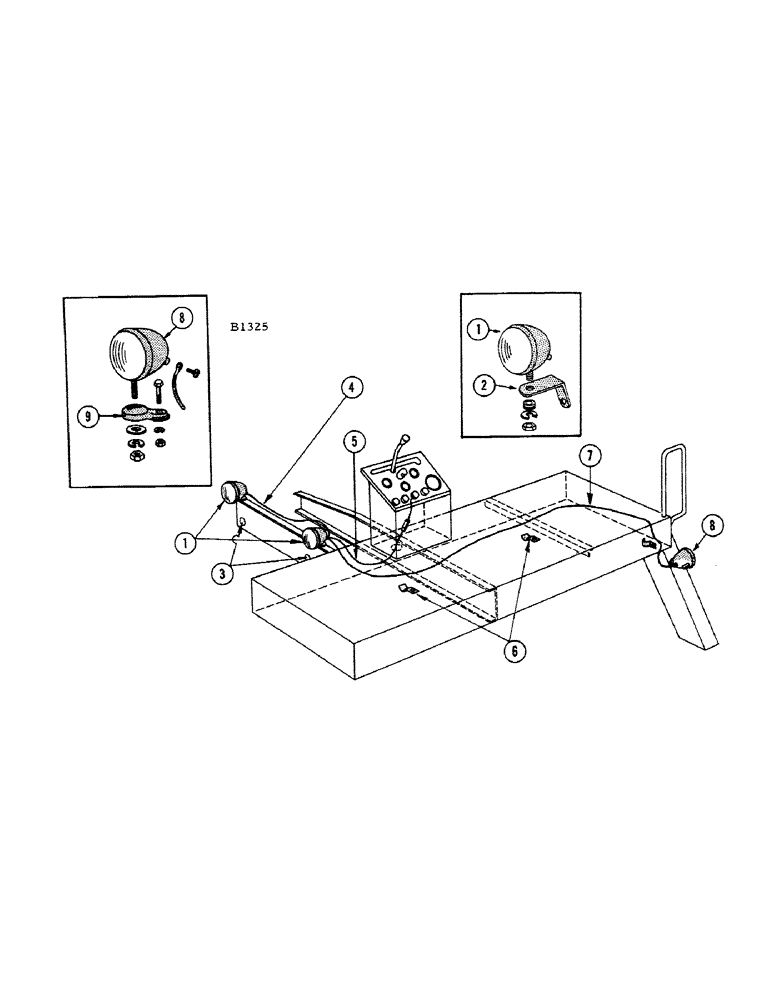

Запчасти Case IH 1010 (230) - LIGHTING ATTACHMENT (55) - ELECTRICAL SYSTEMS

1

F82077

LAMP BASE

LAMP - head (12-16 volt)

2шт.

NUT - 1/2" N.C. hex. (129-105) L.W. (192-23) and plain wshr. (195-106)

2шт.

2

F11398

BRACKET - head lamp mounting

2шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) nut (129-123)

1шт.

WASHER - 1/4" plain (195-518)

1шт.

3

O3692N

GROMMET - rubber, head lamp

2шт.

4

F11397

WIRE - (56-1/2" long) head lamp to head lamp

1шт.

5

F11396

WIRE - (57-1/2" long) light switch to outlet socket

1шт.

FUSE - 9 amp. (223-9)

1шт.

6

O6168AB

CLIP - wire, head and tail lamp

2шт.

SCREW - 1/4" x 1/2" N.C. mach. (173-201) nut (129-101)

2шт.

7

F12193

WIRE - (141" long) head lamp to tail lamp

1шт.

8

A20965

LAMP BASE

LAMP - combination, flood and tail

1шт.

NUT - 1/2" N.C. hex. (129-105) L.W. (192-23) and plain wshr. (195-106)

1шт.

9

6122A

X

BRACKET - tail lamp

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) nut (129-123)

1шт.
