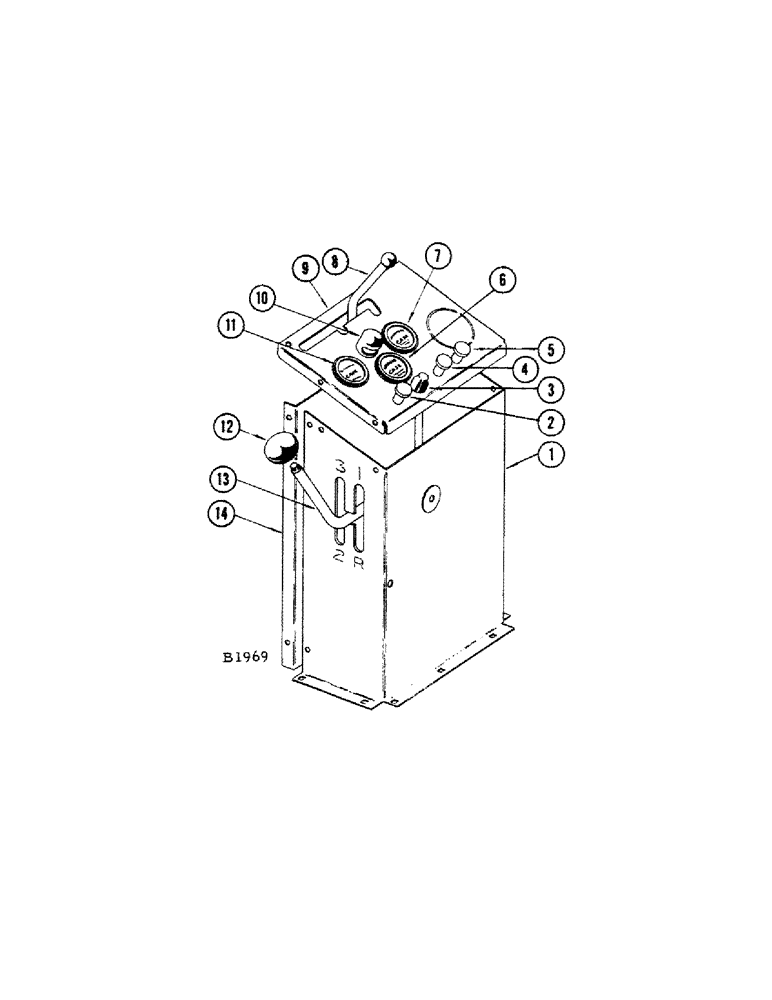

Запчасти Case IH 1010 (220) - INSTRUMENT PANEL, GASOLINE (55) - ELECTRICAL SYSTEMS

1

F79388

STAND - instrument panel

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) nut (25-104)

4шт.

2

A7935

SWITCH

- ignition

1шт.

A7819

KNOB

- ignition switch

1шт.

3

O9995AB

X

SWITCH - starter

1шт.

O10463AB

BOOT

- rubber (Not shown)

1шт.

4

A7934

SWITCH

- light

1шт.

A7817

KNOB

- light switch

1шт.

FUSE - (SAE 20 amp.) (223-20)

1шт.

5

F20913

SPARE PART

CHOKE - flexible control (Replaces O3435CS)

1шт.

6

F11953

GAUGE - oil pressure

1шт.

7

F11954

GAUGE

- temperature

1шт.

8

F11493

LEVER - throttle control

1шт.

9

F11079

PANEL - instrument

1шт.

SCREW - 3/16" x 1/2" rhd. N.C. mach. (173-97) L.W. (92-3) and plain wshr. (95-3)

4шт.

10

A7642

LAMP

- instrument panel

1шт.

SCREW - type "F" metal (187-1007)

2шт.

11

O3601AB1

X

AMMETER - w/clamp

1шт.

12

O3501AB

X

KNOB - gear shift lever

1шт.

13

F11076

LEVER - shift (See gear shift illustration)

1шт.

14

F12343

COVER - instrument panel rear

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114)

4шт.

F12859

HARNESS - electric cable (See illustration of electrical system) Replaces F11077

1шт.
