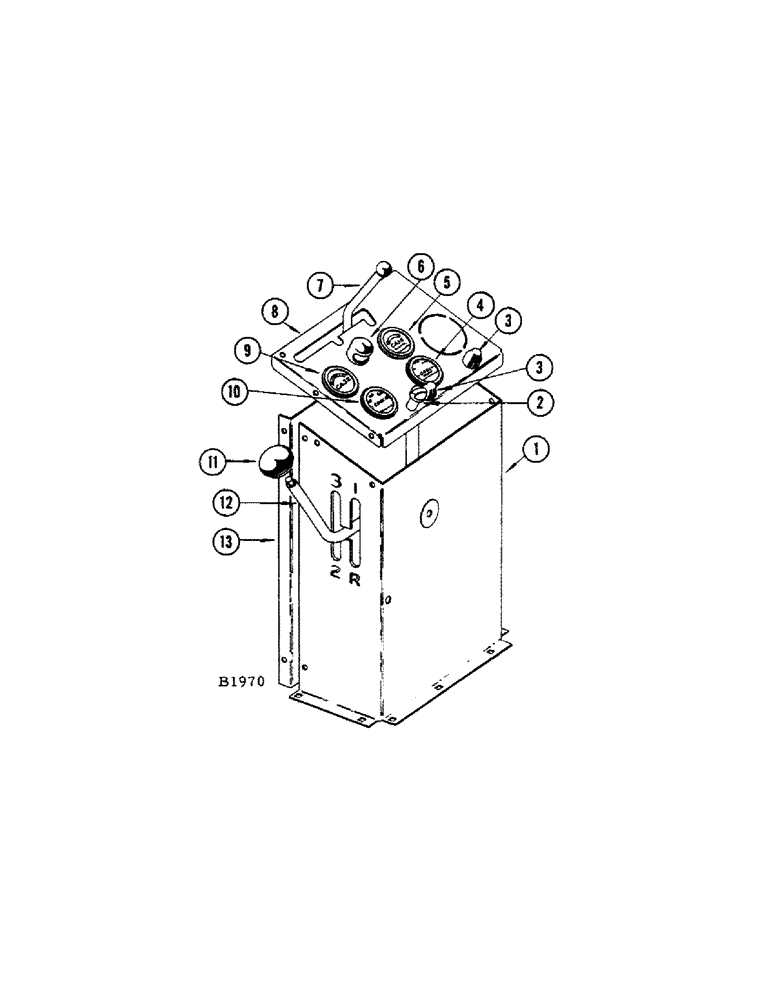

Запчасти Case IH 1010 (220[A]) - INSTRUMENT PANEL, DIESEL (55) - ELECTRICAL SYSTEMS

1

F79388

STAND - instrument panel

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) nut (25-104)

4шт.

2

A7934

SWITCH

- light

1шт.

A7817

KNOB

- light switch

1шт.

FUSE - (SAE 20 amp.) (223-20)

1шт.

3

O9995AB

X

SWITCH - (1 starter, 1 diesel starting aid, manifold heater)

2шт.

O10463AB

BOOT

- rubber (Not shown)

1шт.

4

F11954

GAUGE

- temperature

1шт.

5

A11471

X

GAUGE - fuel pressure

1шт.

CONNECTOR - 1/8" O.D. x 1/8" NPT - Imperial Brass #66FL (222-10)

1шт.

6

A7642

LAMP

- instrument panel

1шт.

SCREW - type "F" metal (187-1007)

2шт.

7

F11493

LEVER - throttle control

1шт.

8

F11078

PANEL - instrument

1шт.

SCREW - 3/16" x 1/2" rhd. N.C. mach. (173-97) L.W. (92-3) and plain wshr. (95-3)

4шт.

9

O3601AB1

X

AMMETER - with clamp

1шт.

10

F11953

GAUGE - oil pressure

1шт.

11

O3501AB

X

KNOB - gear shift lever

1шт.

12

F11076

LEVER - shift (See gear shift illustration)

1шт.

13

F12343

COVER - instrument panel rear

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114)

4шт.

F10540

LOOM - for F11385 tube (A301D engine) Not shown

1шт.

F11385

LINE - fuel pressure gauge (A301D engine) Not shown

1шт.

F12859

HARNESS - electric cable (See illus. of electrical system)

1шт.

B50262

SPRING, parts for A7642 dash lamp

1шт.

B50319

COVER, parts for A7642 dash lamp

1шт.

B50320

SOCKET, parts for A7642 dash lamp

1шт.

B50332

WIRE, parts for A7642 dash lamp

1шт.

R11069

X

BULB - 3 CP - 12 volt (Mfg. #67), parts for A7642 dash lamp

1шт.
