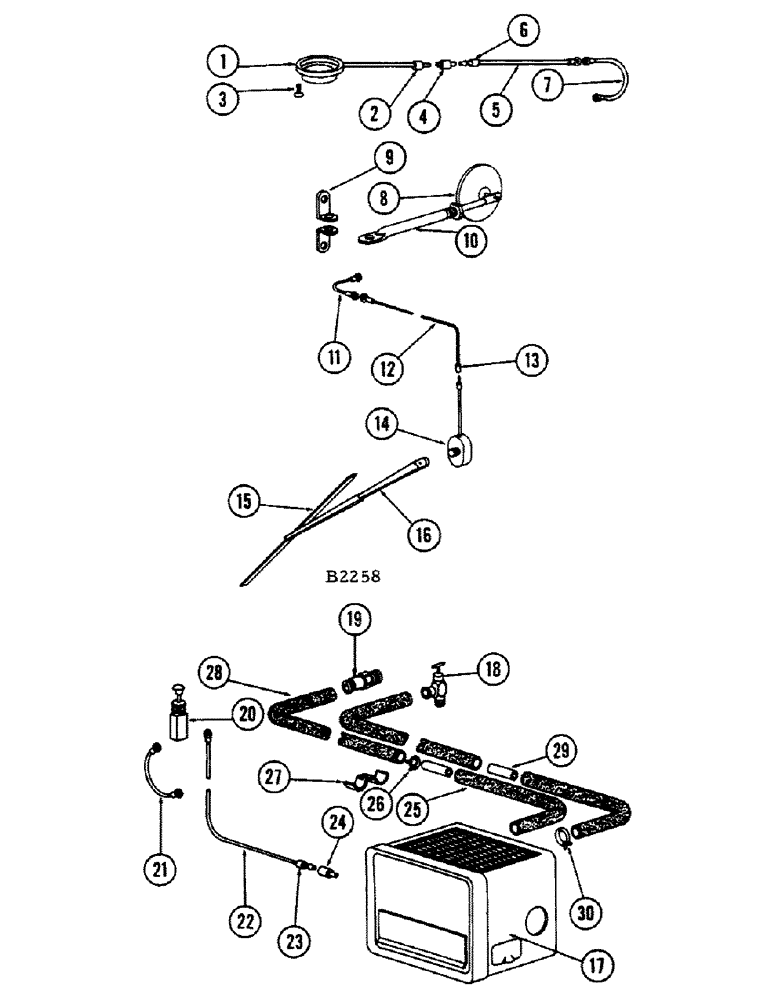

Запчасти Case IH 1010 (218) - CAB ATTACHMENTS, DOMELIGHT (55) - ELECTRICAL SYSTEMS

1

F21299

DOMELIGHT - 12 volt

1шт.

2

F21352

TERMINAL - bullet

1шт.

A14553

BULB

- (Mfg. #57)

1шт.

3

F21350

SCREW - #8 x 1/2" large type "Z" binding hd. sheet metal

3шт.

4

F21330

CONNECTOR

1шт.

5

F84227

WIRE ASSEMBLY - light to switch panel

1шт.

6

F21352

TERMINAL BULLET

1шт.

7

F21300

WIRE - jumper

1шт.

8

F84222

MIRROR - 5" head assembly, rear view

1шт.

9

F84224

BRACKET, rear view mirror

1шт.

175-436

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- 1/4" - 20 x 5/8" N.C. truss hd. and nut (25-104), rear view mirror

2шт.

10

F84223

ARM - extension, rear view mirror

1шт.

11

F21300

WIRE - jumper, windshield wiper

1шт.

12

F84226

WIRE ASSEMBLY, windshield wiper

1шт.

13

F21352

TERMINAL - bullet, windshield wiper

1шт.

214-1101

CLIP - wire, windshield wiper

3шт.

14

F21301

MOTOR - wiper, 12 volt, windshield wiper

1шт.

15

F21303

BLADE - wiper, 10" length, windshield wiper

1шт.

16

A19875

X

ARM - wire, windshield wiper

1шт.

17

F84220

HEATER KIT - 12 volt

1шт.

18

A16764

VALVE

FITTING - 3/8" NPT elbow, hose w/shut-off, heater

1шт.

19

A19940

PIPE

FITTING - 3/8" NPT straight hose, heater

1шт.

20

F21304

BLOWER SWITCH

SWITCH, heater

1шт.

9635082

NUT,5/16" - 18, Gr 5

Heater 5/16"-18, G5

3шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Heater 5/16"

3шт.

21

F21300

WIRE - jumper, heater

1шт.

22

F84221

WIRING ASSEMBLY -, Serial Range: switch-heater

1шт.

23

F21352

TERMINAL - bullet, heater

1шт.

24

F21330

CONNECTOR - bullet, heater

1шт.

25

F21307

HOSE - heater, heater

2шт.

26

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, heater

4шт.

27

F21337

CLAMP - double, hose, heater

4шт.

28

F21306

HOSE - 158" long, heater

2шт.

29

F21305

NIPPLE, heater

2шт.

30

214-1101

CLIP - wire, heater

6шт.
