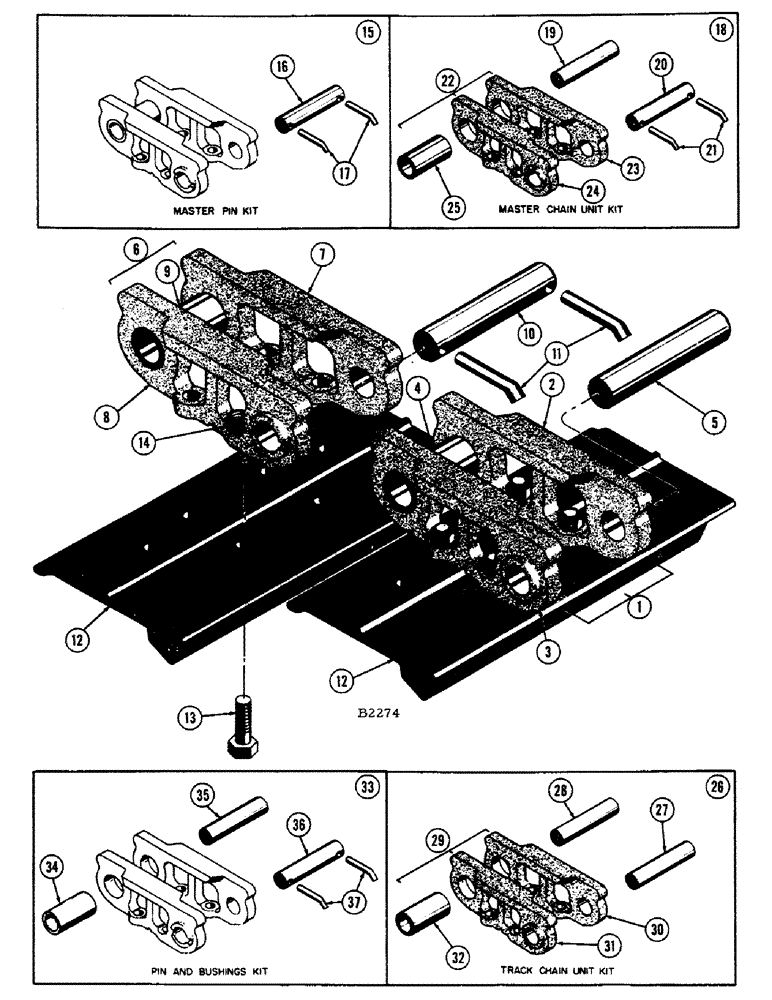

Запчасти Case IH 1010 (302) - TRACK CHAIN (48) - TRACKS & TRACK SUSPENSION

NLS

NO LONGER SERVICED

CHAIN, Includes: Ref. 1 - 11

4шт.

1

34571

KIT

UNIT - track chain (See D21014), Includes: Ref. 2 - 4

14шт.

2

30638

X

LINK - track chain, R.H. (See D21014)

1шт.

3

R41049

DRAG LINK

LINK - track chain, L.H. (See D21014)

1шт.

4

NLS

NO LONGER SERVICED

- track chain, L.H. (See D21014)

1шт.

5

32831

PIN

- track, standard (See D21014; also ref. 19 and 35)

14шт.

6

34589

X

UNIT - track chain, Includes: Ref. 7 - 9

1шт.

7

R41050

LINK

- master, R.H. (See D21013)

1шт.

8

33286

LINK

- master, L.H. (See D21013)

1шт.

9

32830

BUSHING

- track chain (See D21013, D21014 and D21015)

1шт.

10

D21012

PIN

- master (See ref. 15), Includes: Ref. 11

1шт.

11

CASCASCASCASCAS32995

PIN - lock, master pin

1шт.

12

32555

BACK-UP RING

GROUSER - track (20 inch)

60шт.

13

46944

BOLT,Hex, 7/16" - 20 x 1 1/2", Gr 8

- (7/16" x 1-1/2" N.F.) track shoe

240шт.

14

25-277

NUT - 7/16" N.F. hi

240шт.

15

D21012

PIN

KIT - master pin, Includes: Ref. 16 & 17

1шт.

16

NSS

NOT SOLD SEPARAT

PIN - master, Includes: Ref. 17, kit

1шт.

17

CASCASCASCASCAS32995

PIN - lock, master pin, kit

2шт.

18

D21013

KIT

- track chain master unit, Includes: Ref. 19 - 25

1шт.

19

32836

PIN

- track, service (.003 oversize), master chain unit kit

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - master (Use D21012), Includes: Ref. 21, chain unit kit

1шт.

21

CASCASCASCASCAS32995

PIN - lock, master pin, chain unit kit

2шт.

22

34589

X

UNIT - master, Includes: Ref. 23 - 25, chain kit

1шт.

23

R41050

LINK

- master, R.H., chain unit kit

1шт.

24

33286

LINK

- master, L.H., chain unit kit

1шт.

25

NLS

NO LONGER SERVICED

- track chain, master unit kit

1шт.

26

D21014

KIT

- track chain unit, Includes: Ref. 27 - 32

1шт.

27

32831

PIN

- track standard, chain unit kit

1шт.

28

32836

PIN

- track, service (.003 oversize), chain unit kit

1шт.

29

34571

KIT

UNIT - track chain, Includes: Ref. 30 - 32, kit

1шт.

30

30638

X

LINK - track chain, R.H., unit kit

1шт.

31

R41049

DRAG LINK

LINK - track chain, L.H., unit kit

1шт.

32

32830

BUSHING

- track chain, unit kit

1шт.

33

D21015

KIT - pins and bushings, Includes: Ref. 34 - 37

1шт.

34

NLS

NO LONGER SERVICED

- track chain, pins kit

60шт.

35

32836

PIN

- track, service (.003 oversize), bushings kit

56шт.

36

NSS

NOT SOLD SEPARAT

PIN - master (Use D21012), Includes: Ref. 37, bushings kit

4шт.

37

CASCASCASCASCAS32995

PIN - lock, master pin, bushings kit

2шт.
