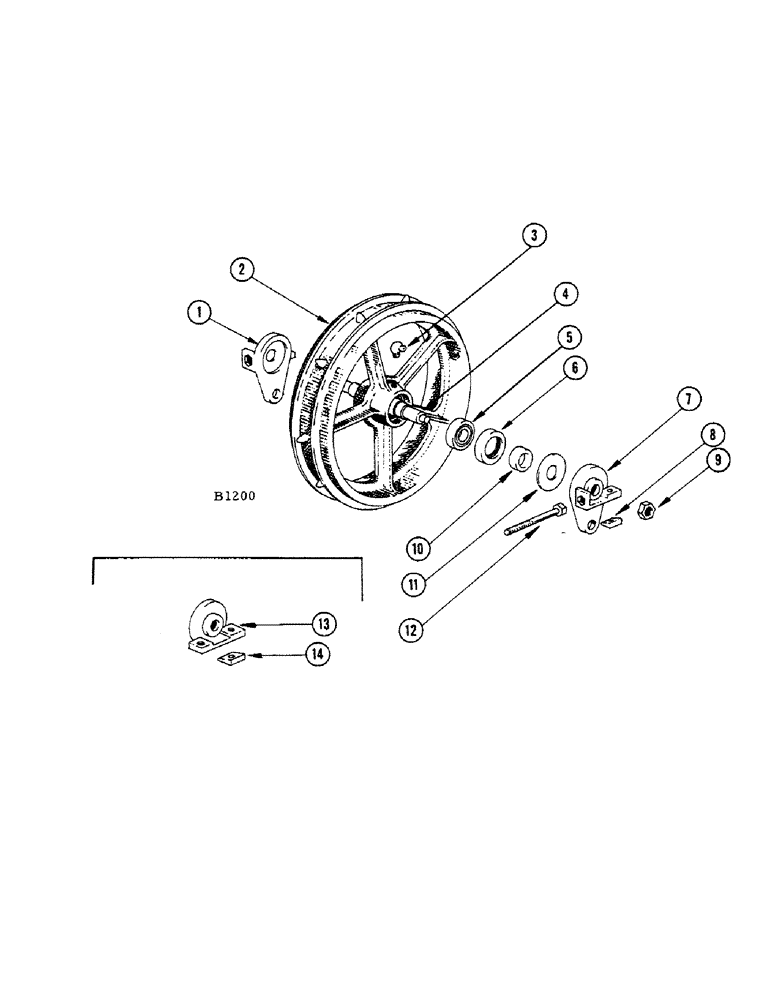

Запчасти Case IH 1010 (300) - IDLER ASSEMBLY (48) - TRACKS & TRACK SUSPENSION

1

F1172

BRACKET - bearing, rear L.H., rear idler

2шт.

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.F. hex. and nut (25-118)

2шт.

195-33

WASHER,1/2"

- flat 1/2"

2шт.

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- 1/2" x 2" N.F. hex. and nut (25-118)

2шт.

195-902

WASHER

- 1-1/4" sq. bevel

2шт.

2

D29967

WHEEL

IDLER - front and rear

4шт.

3

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - grease, 1/4" str.

4шт.

4

32068

SHAFT

- front and rear idlers

4шт.

5

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING

8шт.

6

D29133

SPACER

8шт.

7

F1173

BRACKET - bearing, rear R.H. - rear idler

2шт.

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.F. hex. and nut 925-118)

2шт.

195-33

WASHER,1/2"

- flat 1/2"

2шт.

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- 1/2" x 2" N.F. hex. and nut (25-118)

2шт.

8

195-902

WASHER

- 1-1/4" sq. bevel

2шт.

9

131-370

LOCK NUT

LOCKNUT - (1" - 14 N.F.) idler shaft

8шт.

10

D29138

OIL SEAL

- front and rear idlers

8шт.

11

D29134

SHIELD

- oil seal

8шт.

12

O3062CS

BOLT - track tightener

4шт.

25-1414

NUT,Jam, 7/8"-9, G5

- 7/8" N.C. hex. jam

8шт.

13

F1174

BRACKET - bearing, front idler - R.H. and L.H.

4шт.

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

and nut (25-1110) Hex, 5/8"-18 x 2", G5

4шт.

14

195-903

WASHER

- 1-1/2" sq. bevel

8шт.
