(278) - POWER ADJUSTABLE TREAD DRIVE WHEELS

Запчасти Case IH 1010 (278) - POWER ADJUSTABLE TREAD DRIVE WHEELS (44) - WHEELS

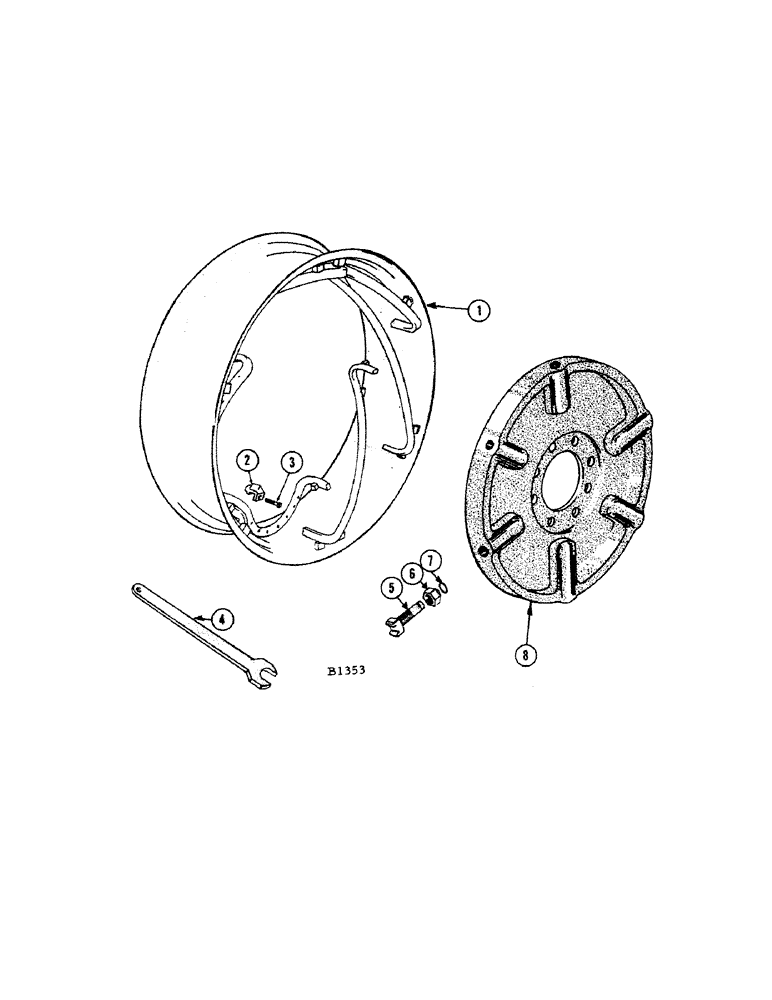

Схема запчастей Case IH 1010 - (278) - POWER ADJUSTABLE TREAD DRIVE WHEELS (44) - WHEELS
1
5
7
2
8
4
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F77667

RIM - for 14 x 26 6 ply tire

2шт.

2

A9406

STOP

- lug, drive wheel

4шт.

3

A9440

STOP

SCREW - drive wheel rim stop

4шт.

4

A9491

WRENCH - drive wheel jack screw

1шт.

5

A11051

SCREW,Jack

JACK SCREW - drive wheel

12шт.

6

A9408

NUT

- drive wheel jack screw

1шт.

7

O8416AB

X

"O" RING - retaining, jack screw

12шт.

8

F1264

WHEEL - drive

2шт.

BOLT - 5/8" x 2-1/2" N.F. grade 5 - 2" min. thrd. (114-611) and jam nut (129-167)

16шт.
