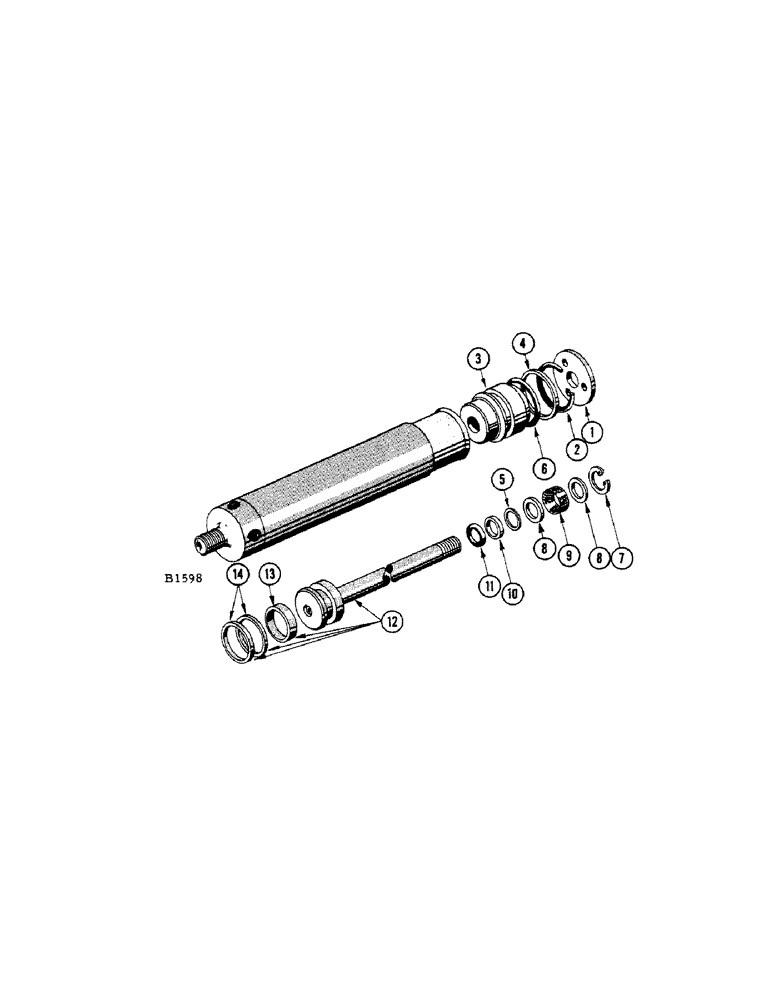

Запчасти Case IH 1010 (292[B]) - F86540 POWER STEERING CYLINDER, SERIAL NUMBER 8243201 AND AFTER (41) - STEERING

1

F10749

X

PLATE - end, cylinder housing

1шт.

SCREW - #10-24 x 1/2" rhd. mach. (173-97) L.W. (92-3)

3шт.

2

F10748

X

RING - snap

1шт.

3

F79038

KIT - repair, For cylinder

1шт.

4

A35884

WASHER

RING - backup, cylinder housing

1шт.

5

F9886

WASHER

RING - retaining, piston rod

1шт.

6

A35883

X

"O" RING - cylinder housing

1шт.

7

A35882

X

RING - retaining

1шт.

8

F9887

WASHER

RING - retaining, piston rod

2шт.

9

A11061

SEAL

- piston rod

1шт.

10

A35879

RING

- backup

1шт.

11

O3991CS

X

"O" RING - piston rod

1шт.

12

F79039

KIT

- repair, piston and rod

1шт.

13

F10745

PISTON

SEAL - piston rod

1шт.

14

1710CKA

PACKAGE

RINGS - (Set of two) piston rod

1шт.

NUT - 3/8" N.F. hex. (25-116)

1шт.
