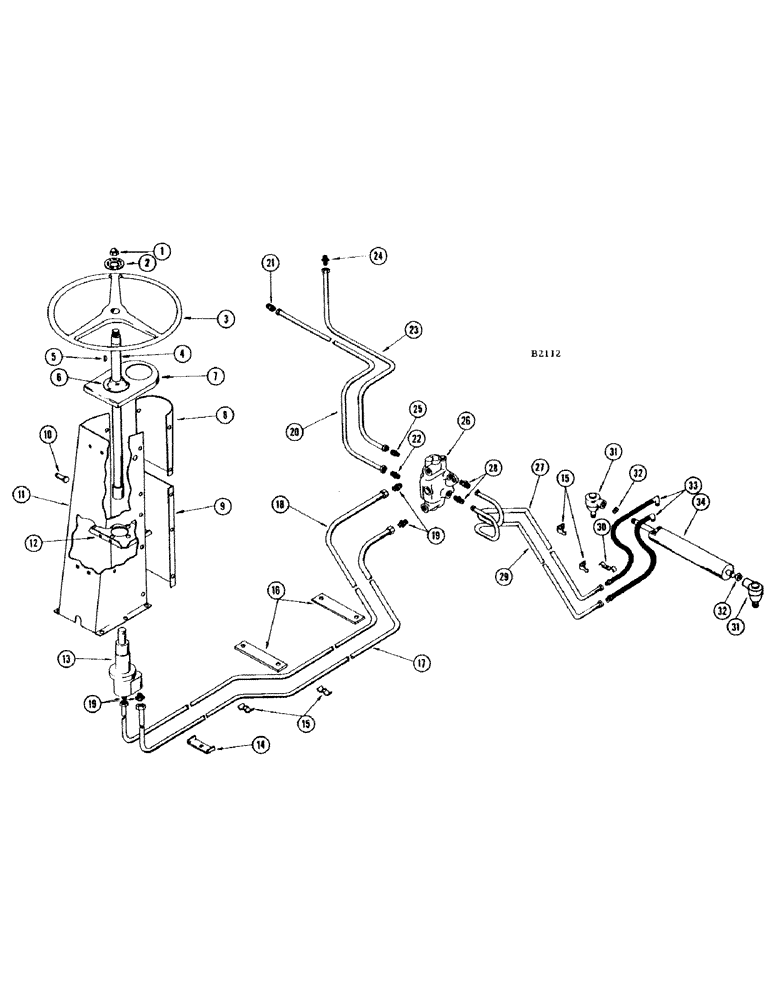

Запчасти Case IH 1010 (288) - HYDROSTATIC STEERING SYSTEM, SERIAL NUMBER 8243201 AND AFTER (41) - STEERING

1

A8744

NUT

- cap

1шт.

2

A8248

PLATE - steering wheel

1шт.

3

A7668

WHEEL

- steering

1шт.

4

F86573

SHAFT - steering

1шт.

5

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - Woodruff, steering wheel

1шт.

6

F12061

BEARING - (Triangle CBH-16-P) steering shaft

1шт.

7

F1358

CAP - steering column

1шт.

8

F11071

PANEL - rear steering column

1шт.

9

F11484

PANEL - rear steering column, lower

1шт.

10

F12502

PIN - clevis, steering shaft coupling

1шт.

PIN - 3/32" x 3/4" cotter (132-26)

1шт.

11

F79460

COLUMN - steering

1шт.

12

F12443

BRACKET - mounting, hydraulic hand pump

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

4шт.

13

F86570

PUMP - hydrostatic hand

1шт.

BOLT - 5/16" x 5/8" N.C. hex. (13-510) L.W. (92-5)

3шт.

14

F12441

CLAMP - hydraulic line

1шт.

BOLT - 5/16" x 1-1/4" N.F. hex. (14-520) nut (25-115)

1шт.

15

F12067

CLIP - hydraulic line

4шт.

16

F12465

BAR - support, hydraulic line

2шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

1шт.

BOLT - 1/4" x 1-1/2" N.F. hex. (14-424) nut (25-114)

1шт.

WASHER - 1/4" plain (195-18)

1шт.

17

F86558

LINE - hydraulic, hand pump to valve, outer (Grain bin machines)

1шт.

CONNECTOR - #8-F50X-S Parker flared (218-5059)

2шт.

F86568

LINE - hydraulic, hand pump to valve, outer (Bagger machines)

1шт.

ELBOW - #8-C50X-S Parker flared (222-1661)

1шт.

CONNECTOR - #8-50X-S Parker flared (218-5059)

1шт.

18

F86557

LINE - hydraulic, hand pump to valve, inner (Grain bin machines)

1шт.

CONNECTOR - #8-F50X-S Parker flared (218-5059)

2шт.

F86569

LINE - hydraulic, hand pump to valve, inner (Bagger machines)

1шт.

ELBOW - #8-C50X-S Parker flared (222-1661)

1шт.

19

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - #8-50X-S Parker flared

1шт.

20

F86555

LINE - hydraulic, pump to valve (Grain bin machines)

1шт.

F86566

LINE - hydraulic, valve to pump (Bagger machines)

1шт.

21

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - #6-FTX-S Parker flared

1шт.

22

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECOTR - #6-F50X-S Parker flared

1шт.

23

F86556

LINE - hydraulic, valve to reservoir (Grain bin machines)

1шт.

F86567

LINE - hydraulic, valve to reservoir (Bagger machines)

1шт.

24

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECOTR - #6-FTX-S Parker flared

1шт.

25

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR - #6-8F50X-S Parker flared

1шт.

26

F82739

VALVE

- hydrostatic, power steering

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) nut (25-106)

3шт.

27

F86559

LINE - hydraulic, valve to cylinder hose, front (Grain bin machines)

1шт.

CONNECTOR - #6-F50X-S Parker flared (218-5057)

1шт.

F86565

LINE - hydraulic, valve to cylinder, lower (Bagger machines)

1шт.

UNION - #6-HTX-S Parker flared (218-734)

1шт.

F86564

LINE - hydraulic, valve to cylinder, inner (Bagger machines)

1шт.

28

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - #6-F50X-S Parker flared

1шт.

29

F86560

LINE - hydraulic, valve to cylinder hose, rear (Grain bin machines)

1шт.

CONNECTOR - #6-F50X-S Parker flared (218-5057)

1шт.

F86563

LINE - hydraulic, valve to cylinder, lower (Bagger machines)

1шт.

UNION - #6-HTX-S Parker flared (218-734)

1шт.

F86562

LINE - hydraulic, valve to cylinder, outer (Bagger machines)

1шт.

CONNECTOR - #6-F50X-S Parker flared (218-5057)

1шт.

30

F8807

CLIP - hose

1шт.

BOLT - 1/4" x 7/8" N.F. hex. (14-414) nut (25-114)

1шт.

31

F86541

SOCKET - steering cylinder

2шт.

PIN - 1/8" x 1" cotter (132-48)

2шт.

NUT - 9/16" N.F. slotted hex. (25-119)

2шт.

32

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" N.F. hex. jam

2шт.

33

F12430

HOSE - hydraulic, steering cylinder

2шт.

34

F86540

CYLINDER - power steering

1шт.
