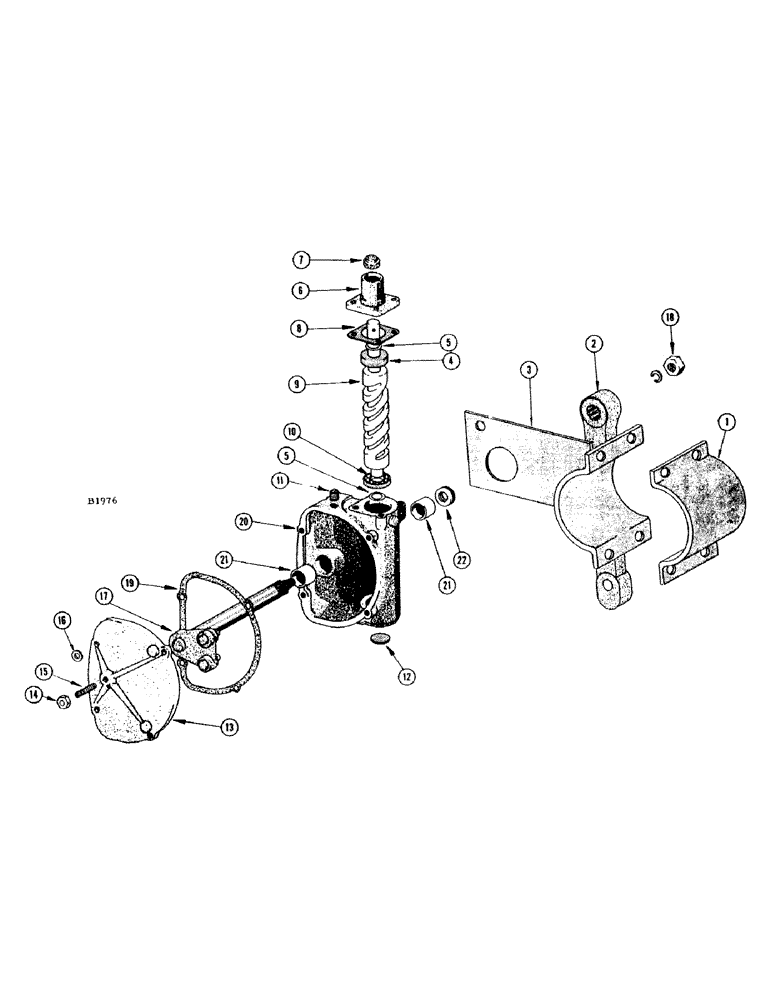

Запчасти Case IH 1010 (286) - F79127 STEERING ASSEMBLY (41) - STEERING

1

F9399

CLAMP - steering support

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118)

4шт.

2

F3129

ARM - steering

1шт.

3

F77589

SUPPORT - steering gear

1шт.

BOLT - 1/2" x 1-1/2" N.F. hex. (14-824) nut (25-118)

1шт.

4

F10002

BEARING, CUP

CUP - ball

2шт.

5

V20956

RING - retaining

2шт.

6

F77991

COVER - upper

1шт.

7

G10728

SEAL

SEAL - oil

1шт.

8

V20707

GAUGE

SHIM - (.003") upper cover

1шт.

V20708

SHIM

- (.010") upper cover

1шт.

V20709

CABLE

SHIM - (.002") upper cover

1шт.

9

F77989

SHAFT - cam and stub

1шт.

10

211-9

BALL,5/16" Dia

- (.) 5/16" Dia

24шт.

11

F10003

PLUG - vent

1шт.

12

41-24

PLUG

- welch (1-1/2" dia.)

1шт.

13

VT728

COVER - side

1шт.

BOLT - 5/16" x 1" N.F. hex. (13-516)

4шт.

14

25-158

JAM NUT,Jam, 1/2"-20, G5

LOCKNUT - adjusting screw

1шт.

15

V14124

O-RING

SCREW - adjusting

1шт.

16

V20220

X

WASHER - side cover

4шт.

17

F77990

SHAFT - lever

1шт.

18

V20312

NUT - lever shaft

1шт.

LOCKWASHER - 7/8" (192-119)

1шт.

19

V20417

GASKET - side cover

1шт.

20

F77988

HOUSING - cam

1шт.

21

V20461

X

BUSHING - steering arm shaft

2шт.

22

V14663

SUPPORT

SEAL - oil

1шт.
