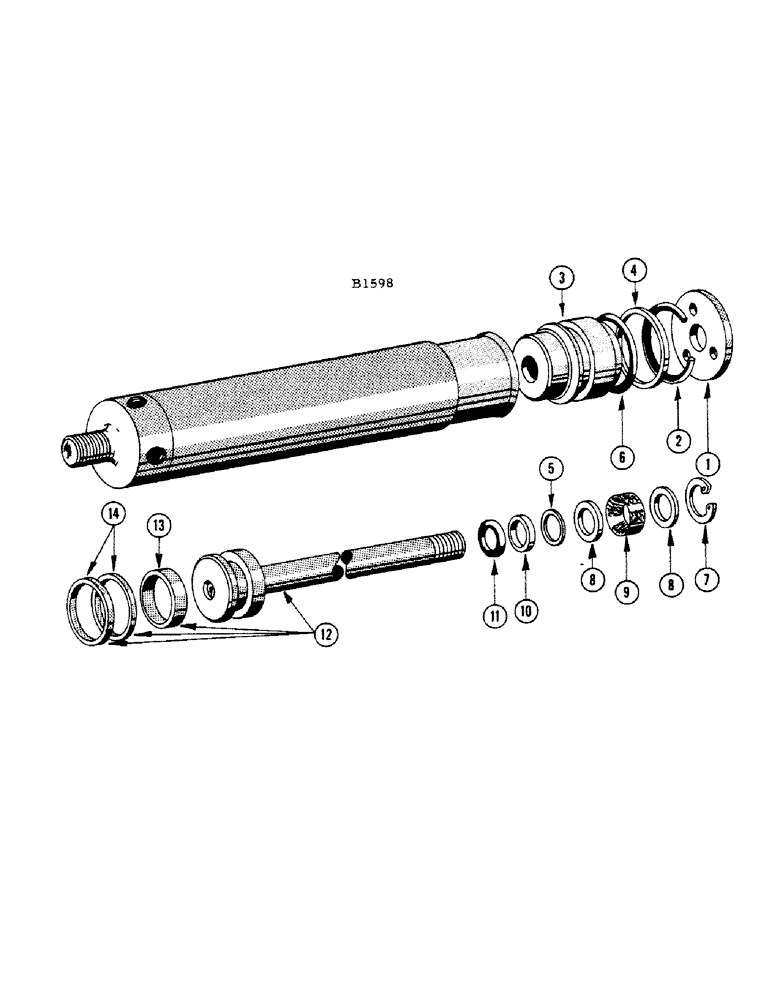

Запчасти Case IH 1010 (284) - F78731 POWER STEERING CYLINDER (41) - STEERING

1

F10749

X

PLATE - end, cylinder housing

1шт.

2

F10748

X

RING - snap, retaining, bearing assembly

1шт.

3

F79038

BEARING

1шт.

4

A35884

WASHER

RING - backup, cylinder housing

1шт.

5

F9886

WASHER

RING - retaining, piston rod

1шт.

6

A35883

X

"O" RING - cylinder housing

1шт.

7

A35882

X

RING - snap

1шт.

8

F9887

WASHER

RING - retaining, piston rod

2шт.

9

A11061

SEAL

- piston rod

1шт.

10

A35879

RING

- backup, piston rod

1шт.

11

O3991CS

X

"O" RING - pistonrod

1шт.

12

F79039

KIT

PISTON AND ROD

1шт.

13

F10745

PISTON

SEAL - piston rod

1шт.

14

1710CKA

PACKAGE

RING - piston (Set of 2)

2шт.
