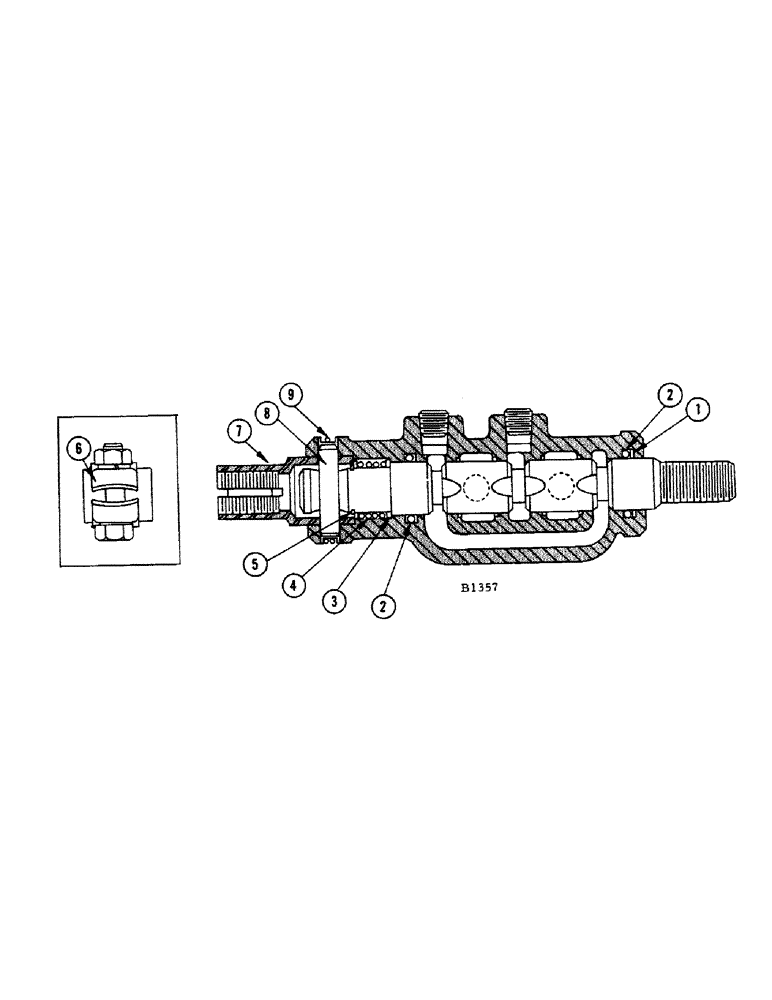

Запчасти Case IH 1010 (284[A]) - F75719 POWER STEERING VALVE (41) - STEERING

1

F9526

WASHER - (1/8" x 7/8" I.D.) backup

1шт.

2

F9525

"O" RING

2шт.

3

F9532

RING - reaction

2шт.

4

F9533

SPRING

1шт.

5

F9534

RING - snap

1шт.

6

F9521

CLAMP

1шт.

7

F9524

SLEEVE

1шт.

8

F9529

AXLE PIN

PIN - dowel (5/16" x 1-1/2")

1шт.

9

F9520

RING - retaining, dowel pin

1шт.

F75719

VALVE - power steering, complete

1шт.

PLUG - 1/4" N.F. pipe (221-841)

4шт.

BOLT - 5/16" x 1-1/4" N.C. hex. (13-520) nut (25-105)

1шт.
