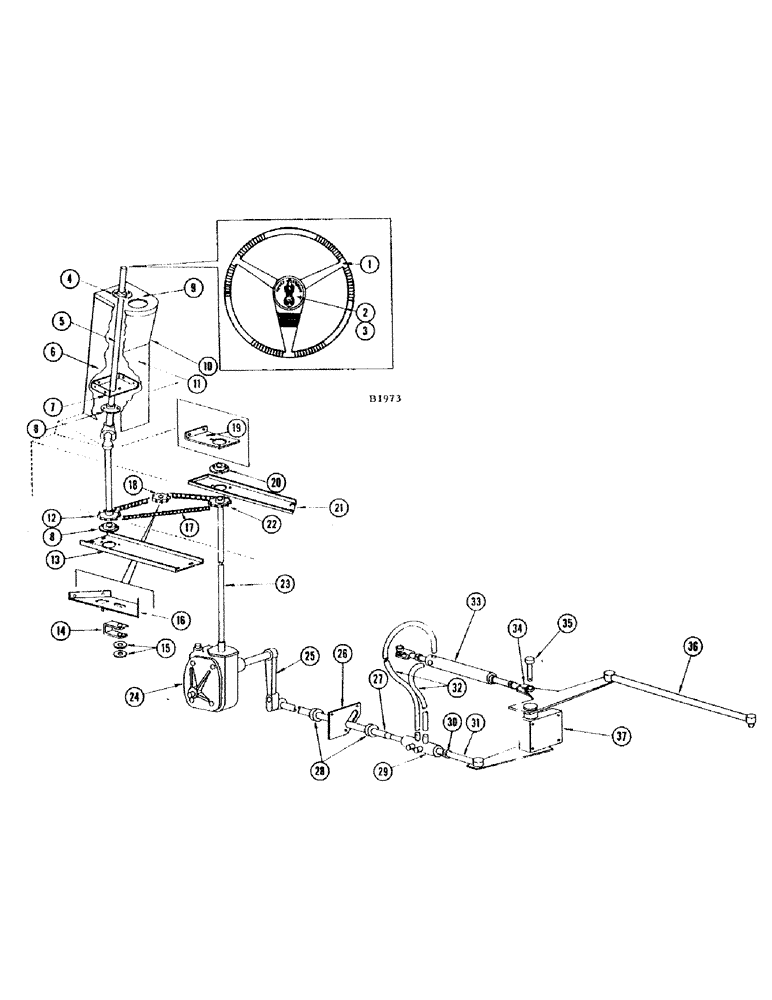

Запчасти Case IH 1010 (280) - STEERING ASSEMBLY, BEFORE SERIAL NUMBER 8243201 (41) - STEERING

1

A20456

WHEEL (STEERING)

WHEEL - steering

1шт.

2

A20475

CAP

MEDALLION - power steering

1шт.

3

O10984AB

X

"O" RING - for medallion

1шт.

4

F12061

BEARING - (Triangle CBH-16-P) (Upper steering shaft)

1шт.

5

F77580

SHAFT - steering, upper and lower w/joint

1шт.

FITTING - Lincoln #5200 (219-36)

1шт.

PIN - 1/4" x 1-3/4" cotter (132-152)

1шт.

KEY - "A" Woodruff (126-21)

1шт.

6

F79460

COLUMN - steering

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114)

6шт.

7

F11946

BRACKET - for ref. 8 (Upper steering shaft)

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

4шт.

WASHER - 5/16" std. (195-21)

4шт.

8

N4807

X

BEARING - (Aetna #AG-1100 w/collar)

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

3шт.

9

F1358

CAP - steering column

1шт.

SCREW - 1/4" x 1" truss hd. N.C. mach. (77-416) nut (25-104)

4шт.

WASHER - 1/4" std. (195-18)

4шт.

10

F11071

PANEL - steering column, upper rear

1шт.

SCREW - 1/4" x 3/8" rhd. N.C. mach. (75-46)

4шт.

11

F11484

PANEL - steering column, lower rear

1шт.

SCREW - 1/4" x 3/8" rhd. N.C. mach. (75-46)

6шт.

12

F77582

SPROCKET - steering, front

1шт.

SCREW - 1/4" x 3/4" N.C. sq. hd. cup pt. set (85-412) and jam nut (25-144)

1шт.

13

F11965

SUPPORT - bearing, front steering shaft

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

4шт.

WASHER - 5/16" flat (195-21)

4шт.

14

F11963

"U" STRAP - for adjusting idler

1шт.

BOLT - 3/8" x 2-1/4" rhd. sq. nk. full thread (111-347)

1шт.

NUT - 3/8" N.C. elastic stop, #29E066 (131-6)

1шт.

15

O7841HT

WASHER - one on each side of F6078

2шт.

16

F11962

BRACKET - idler

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

4шт.

17

F11961

X

CHAIN - steering (Use 2-B12474 chain, 1-B12475 chain, 1-B12477 chain, 1-B12505 conn. link, 1-B12506 offset link and 1-B12507 roller #50)

1шт.

18

F6078

SPROCKET ASSY.

SPROCKET - (17T) idler

1шт.

BOLT - 5/8" x 3" N.F. hex. (14-1048) nut (25-1110)

1шт.

WASHER - 5/8" std. (195-41)

1шт.

19

F12148

BRACKET - upper, rear steering shaft bearing (Rice Track)

1шт.

20

F7579

X

BEARING - (Aetna #AG-1100-P)

1шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (11-510) nut (25-105)

3шт.

21

F11964

BRACKET - shaft bearing holder, lower steering

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

4шт.

22

F77103

SCREW

SPROCKET - steering, rear

1шт.

SCREW - 1/4" x 3/4" N.C. sq. hd. cup pt. set (85-412) and jam nut (25-144)

1шт.

23

F86097

SHAFT - steering, lower (Grain and rice wheel) See F86182

1шт.

BOLT - 5/16" x 1-3/4" N.F. hex. (14-528)

1шт.

KEY - "A" Woodruff (126-21)

1шт.

F86182

SHAFT - steering, lower (Rice Track) See F86097

1шт.

BOLT - 5/16" x 2-1/2" N.F. hex. (14-540)

1шт.

FITTING - 1/8" str. Lincoln #5200 (219-36)

2шт.

24

F79127

STEERING UNIT w/o arm

1шт.

25

F3129

ARM - steering

1шт.

26

F11816

GUIDE - drag link (Rice track) See F12145

1шт.

F12145

GUIDE - drag link (Grain and rice wheel) See F11816

1шт.

27

F79502

LINK - drag, front steering

1шт.

28

F9991

COLLAR - stop, drag link

2шт.

SCREW - 1/2" x 1" N.F. sq. hd. set (86-816)

4шт.

NUT - 1/2" N.F. hex. jam (25-158)

4шт.

29

F75719

VALVE - power steering

1шт.

30

F7510

NUT - (11/16" - 18 N.F. hex. jam nut) For front drag link

1шт.

31

F79503

SOCKET - steering valve

1шт.

32

F9240

HOSE,0.25" ID x 36.00", SAE 100R1

- Hydraulic, Power steering valve to power steering cylinder 0.25" ID x 36.00", SAE 100R1

2шт.

33

F78731

CYLINDER - power steering

1шт.

NUT - 5/8" N.F. hex. jam (25-1510)

2шт.

34

O4380N

CLEVIS

- each end of power steering cylinder

2шт.

35

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, For O4380N

2шт.

PIN - 1/8" x 1" cotter (132-48)

2шт.

36

F78993

LINK - drag, rear steering (Narrow axle) See F78994

1шт.

F78994

LINK - drag, rear steering (Wide axle) See F78993

1шт.

37

F78984

ARM - steering pivot (Narrow axle) See F78986

1шт.

F78986

ARM - steering pivot (Wide axle) See F78984

1шт.

FITTING - 1/8" str. Lincoln #5000 (219-1)

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118)

2шт.
