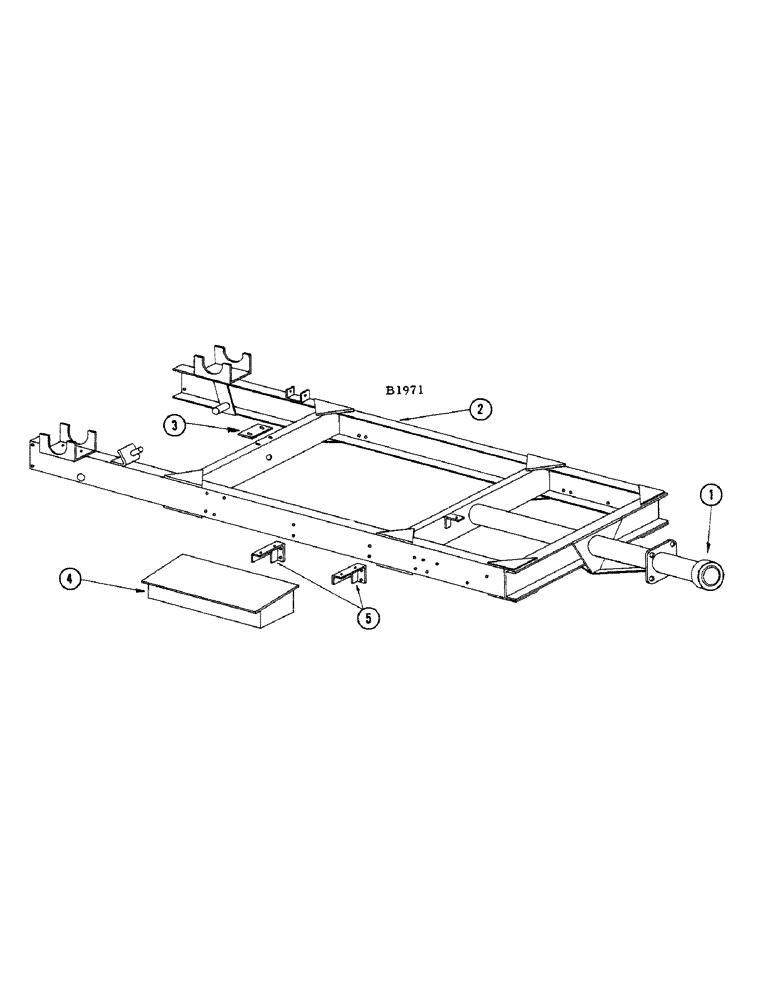

Запчасти Case IH 1010 (278[A]) - MAIN FRAME AND TOOL BOX (39) - FRAMES AND BALLASTING

1

F8120

COLLAR

1шт.

BOLT - 7/16" x 1-1/4" N.F. hex. (14-720) elastic stop nut (131-7)

2шт.

2

F86245

MAIN FRAME - before #8243201

1шт.

F86530

MAIN FRAME - #8243201 and after

1шт.

F86841

FRAME - main (Replaces F86530 and F86245 when stocks are exhausted)

1шт.

3

F12228

PAD - transmission support

1шт.

BOLT - 5/8" x 2-1/2" N.F. hex. (14-1040) ESNA nut (131-13)

2шт.

4

3412HTA

TOOL BOX

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

4шт.

5

F9510

ANGLE - tool box support

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

4шт.

F9511

WRENCH - Pitman adjustment screw (Not shown)

1шт.

F1365

WRENCH - sickle guard straightener (See sickle guards)

1шт.
