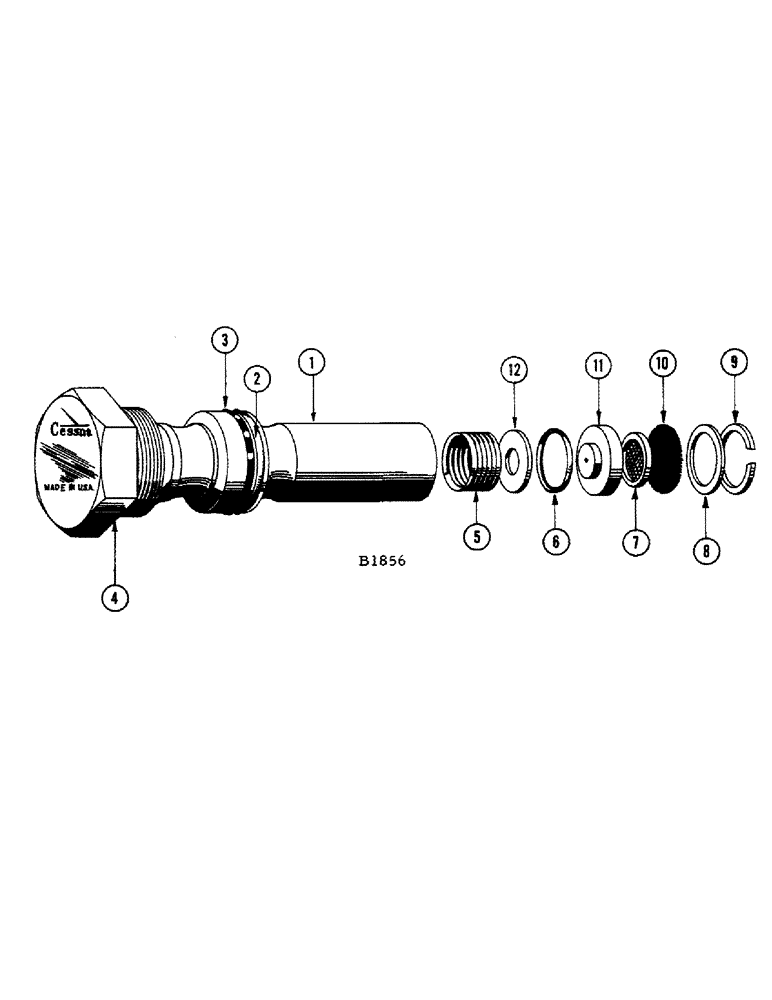

Запчасти Case IH 1010 (248[A]) - RELIEF VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

F84829

VALVE

- relief (For F87262 hydraulic valve)

1шт.

1

F86224

VALVE - relief (For F86223 hydraulic valve)

1шт.

F84831

SEAL

KIT - repair, port plate seal

1шт.

2

NSS

NOT SOLD SEPARAT

"O" RING - (3/32" x 5/8" I.D.) valve

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - (3/32" x 5/8") backup

1шт.

4

NSS

NOT SOLD SEPARAT

"O" RING - port hole, pump body

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

6

NSS

NOT SOLD SEPARAT

"O" RING - (1/16" x 3/8" I.D.) orifice plate

1шт.

7

NSS

NOT SOLD SEPARAT

SCREEN - reinforcing

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - (.020" thick) For filter screen

1шт.

9

NSS

NOT SOLD SEPARAT

SNAP RING - for filter screen washer

1шт.

10

NSS

NOT SOLD SEPARAT

SCREEN - filter

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - orifice

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - (.030" thick) spring

1шт.
