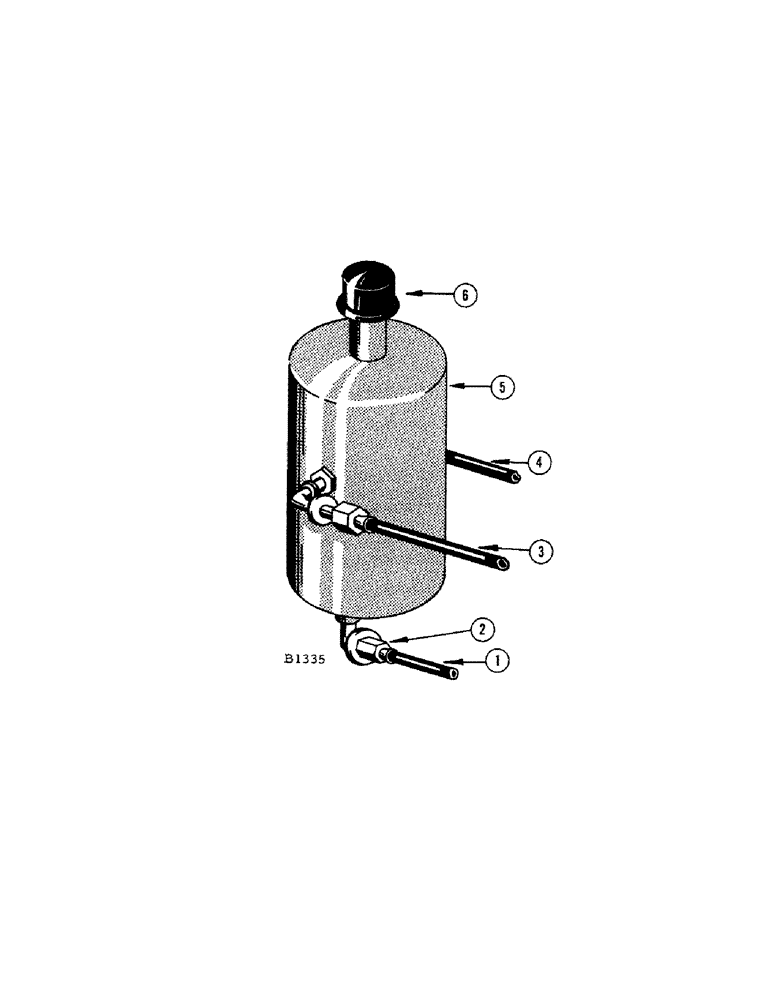

Запчасти Case IH 1010 (246) - OIL RESERVOIR FOR HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

F8050

HOSE - (28-1/4" braid) intake, from, Serial Range: reservoir-pump

1шт.

CLAMP - #11-1/2 hose (214-11)

1шт.

2

F8049

COUPLING - for F8050 intake hose

1шт.

3

F77904

LINE - (3/8" O.D.) power steering valve to reservoir (See hydraulic system)

1шт.

4

F86086

LINE - (1/2" O.D.) from valve to reservoir (See hydraulic system)

1шт.

5

F77978

RESERVOIR - oil, hydraulic (Replaces F78236)

1шт.

6

F77662

DIPSTICK - oil reservoir gauge

1шт.

BOLT - (13-612) L.W. (92-6)

4шт.
