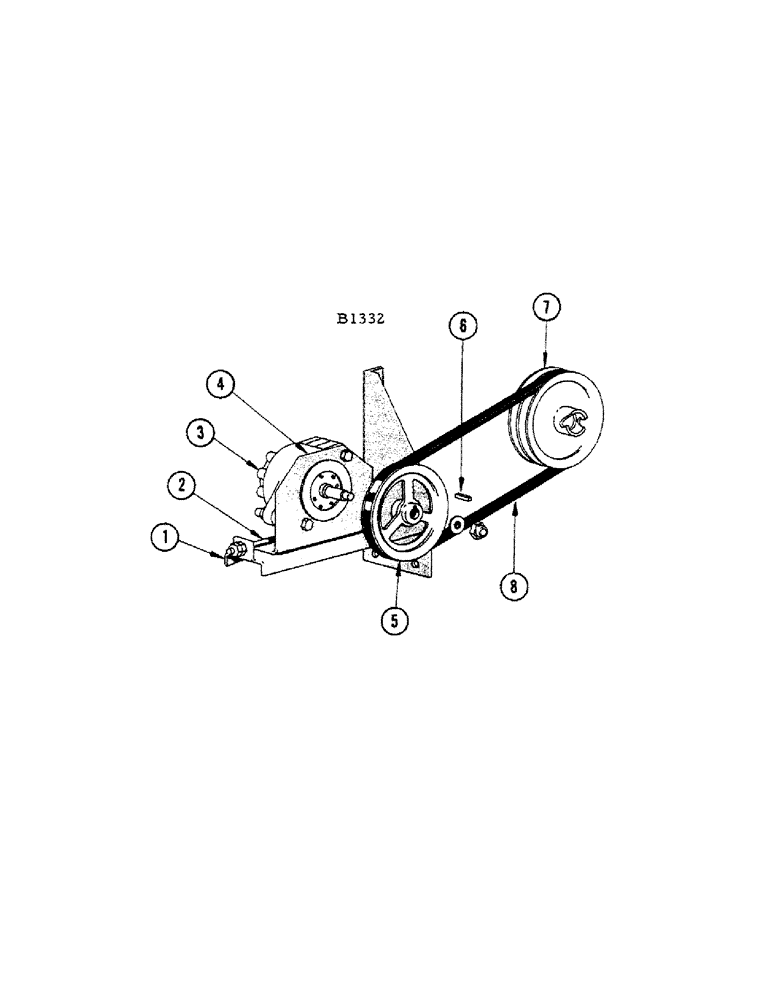

Запчасти Case IH 1010 (244[A]) - HYDRAULIC PUMP DRIVE (35) - HYDRAULIC SYSTEMS

1

F77615

BRACKET - support, engine and hydraulic pump drive

1шт.

2

F9348

BOLT - adjustment

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

and nut (25-106) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

195-25

WASHER,3/8"

- flat and L.W. (92-6) 3/8"

1шт.

3

F86819

PUMP - hydraulic (Replaces F79197)

1шт.

14-722

BOLT - 7/16" x 1-3/8" N.F. hex. and nut (25-117)

2шт.

4

F79196

SUPPORT - plate, adjusting

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , and nut (25-106) Short NK, 3/8"-16 x 1", G2

3шт.

195-25

WASHER,3/8"

- flat and L.W. (92-6) 3/8"

3шт.

5

F1256

SHEAVE - hydraulic pump drive, driven

1шт.

195-33

WASHER,1/2"

- flat 1/2"

1шт.

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - 1/2" N.F. elastic stop

1шт.

6

F9856

KEY

- driven, Serial Range: sheave-shaft

1шт.

7

F1215

SHEAVE - double, drives fan and hydraulic pump (Case engines)

1шт.

F1935

SHEAVE - triple, drives fan, hydraulic pump and governor (Chrysler engine)

1шт.

8

F8047

BELT

Hydraulic Pump Drive

1шт.
