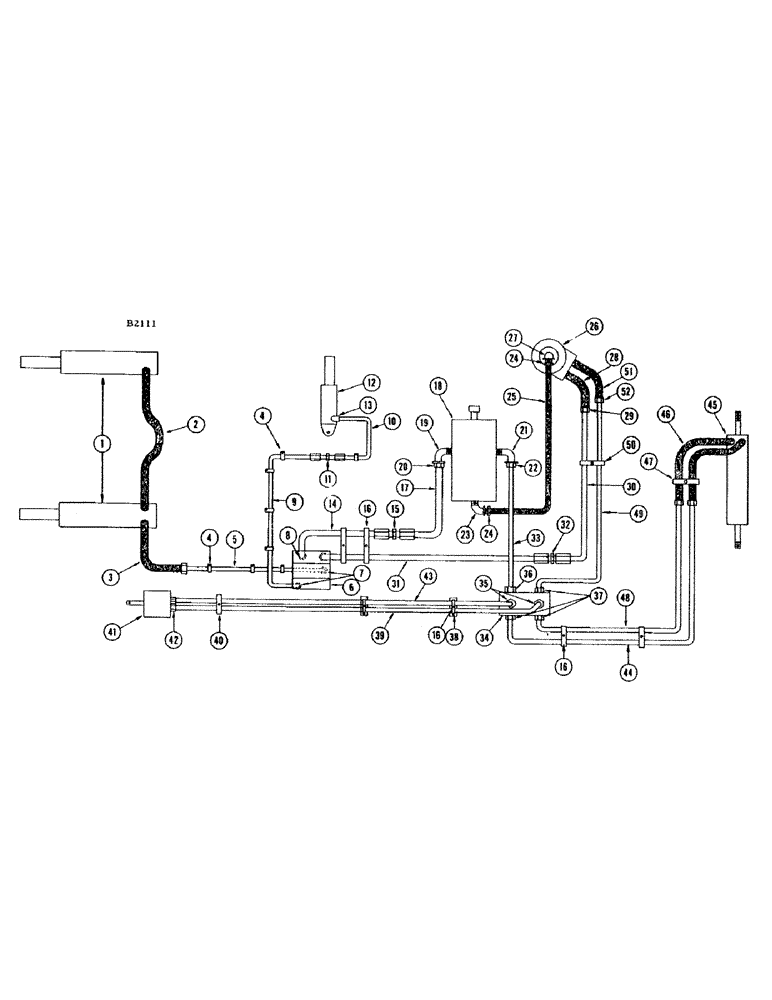

Запчасти Case IH 1010 (240) - HYDRAULIC SYSTEM, SERIAL NUMBER 8243201 AND AFTER (35) - HYDRAULIC SYSTEMS

1

F87112

CYLINDER - header lift (Replaces F78769 when stocks are exhausted)

2шт.

F78769

CYLINDER - header lift (Replaced by F87112 when stocks are exhausted)

2шт.

2

F10835

HOSE - hydraulic, connects header lift cylinders

1шт.

3

F10834

HOSE

- hydraulic, cylinder to ref. 5 line

1шт.

4

F9263

CLIP - hydraulic line

8шт.

5

F86085

LINE - hydraulic, from ref. 3 hose to control valve

1шт.

6

F87262

VALVE

- header lift and variable speed control (Replaces F86223 when stocks are exhausted)

1шт.

F86223

VALVE - header lift and variable speed control (Replaced by F87262 when stocks are exhausted)

1шт.

7

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF, #6-6FTX Parker, control valve

2шт.

8

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

FITTING - #8-8FTX-S Parker (Control valve to reservoir and pump)

2шт.

9

F86930

LINE - hydraulic, control valve to V.S. control cylinder (Replaces F86092)

1шт.

10

F86087

LINE - hydraulic, V.S. cylinder to ref. 9 line

1шт.

11

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- #6HTS-S Parker, Ref. 9 to 10 lines

1шт.

12

F76962

CYLINDER - variable speed control

1шт.

13

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - #6FTX-S Parker, ref. 10 line to V.S. cylinder

1шт.

14

F86148

LINE - hydraulic, control valve to reservoir - front (Grain bin combines)

1шт.

15

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- #8HTX Parker, ref. 14 line to ref. 17 line

1шт.

16

F12067

CLIP - hydraulic lines

6шт.

F9398

CLIP - line (Steering valve to cylinder lines) Before #8262501

2шт.

F12067

CLIP - line (Steering valve to cylinder lines) #8262501 and after

2шт.

17

F86086

LINE - hydraulic, control valve to reservoir - rear (Grain bin combines)

1шт.

F86561

LINE - hydraulic, control valve to reservoir (Bagger comb.)

1шт.

18

F77978

RESERVOIR - hydraulic oil (Replaces F78236)

1шт.

19

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 1/2" NPT x 90 degree street (Control valve to reservoir line)

1шт.

20

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - #8-8FTX-S Parker (Control valve to reservoir line)

1шт.

21

221-412

ELBOW,90 Degree, 1/4"-27, NPT

- 1/4" NPT x 90 degree elbow (Steering valve to reservoir)

1шт.

22

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - #6FTX-S Parker (Steering valve to reservoir line)

1шт.

23

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- 3/4" x 45 degree street (Pump intake hose to reservoir)

1шт.

24

F8049

COUPLING - intake hose, pump and reservoir

2шт.

25

F8050

HOSE - hydraulic, intake -, Serial Range: reservoir-pump

1шт.

214-11

X

CLAMP - #11-1/2 hose

2шт.

26

F86819

PUMP - hydraulic (Replaces F79197)

1шт.

27

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street (Intake coupling) 90º, 3/4"-14, NPT

1шт.

28

F12682

HOSE - hydraulic, pressure line to control valve (Chrysler engine only)

1шт.

F7878

HOSE - hydraulic, pressure line to control valve

1шт.

29

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - #8-8FTX-S Parker, hose to control valve pressure line

1шт.

30

F77905

LINE - hydraulic, pump to control valve (Bagger combines)

1шт.

F86091

LINE - hydraulic, pump to control valve - rear (Grain bin combines)

1шт.

31

F86147

LINE - hydraulic, control valve to pump - front (Grain bin combines)

1шт.

32

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- #8HTX Parker, front line to rear line

1шт.

33

F86556

LINE - hydraulic, valve to reservoir (Grain bin machines)

1шт.

F86567

LINE - hydraulic, valve to reservoir (Bagger machines)

1шт.

34

F82739

VALVE

- power steering, hydrostatic

1шт.

35

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - #8-F50X-S Parker, flared

2шт.

36

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR - #6-8F50X-S Parker, flared

1шт.

37

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - #6-F50X-S Parker, flared

3шт.

38

F12465

BAR - support, hydraulic line - hand pump to valve (Grain bin machines)

2шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

1шт.

BOLT - 1/4" x 1-1/2" N.F. hex. (14-424) nut (25-114)

1шт.

WASHER - 1/4" plain (195-18)

2шт.

39

F86558

LINE - hydraulic, hand pump to valve - outer (Grain bin machines)

1шт.

F86568

LINE - hydraulic, hand pump to valve - outer (Bagger machines)

1шт.

ELBOW - #8-C50X-S Parker flared (222-1661), Serial Range: (F86568-F82739)

1шт.

40

F12441

CLAMP - hydraulic line - hand pump to power steering valve (2 used on bagger machines)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

1шт.

41

F86570

PUMP - hand, hydrostatic

1шт.

42

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - #8-50FX-S Parker flared

2шт.

43

F86557

LINE - hydraulic, hand pump to valve - inner (Grain bin machines)

1шт.

F86569

LINE - hydraulic, hand pump to valve - inner (Bagger machines)

1шт.

ELBOW - #8-C50X-S Parker flared (222-1661), Serial Range: (F86569-F82739)

1шт.

44

F86559

LINE - hydraulic, valve to cylinder hose - front (Grain bin machines)

1шт.

F86564

LINE - hydraulic, valve to cylinder - inner (Bagger machines)

1шт.

UNION - #6HTX-S Parker flared (218-734), Serial Range: (F86564-F86565)

1шт.

F86565

LINE - hydraulic, valve to cylinder - lower (Bagger machines)

1шт.

45

F86540

CYLINDER - power steering

1шт.

46

F12430

HOSE - hydraulic, steering cylinder

2шт.

47

F8807

CLIP - hose (F12430 power steering cylinder, Serial Range: hose-frame)

1шт.

48

F86560

LINE - hydraulic, valve to cylinder hose - rear (Grain bin machines)

1шт.

F86562

LINE - hydraulic, valve to cylinder - outer (Bagger machines)

1шт.

UNION - #6HTX-S Parker flared (218-734), Serial Range: (F86562-F86563)

1шт.

F86563

LINE - hydraulic, valve to cylinder - lower (Bagger machines)

1шт.

49

F86555

LINE - hydraulic, pump to valve (Grain bin machines)

1шт.

F86566

LINE - hydraulic, valve to pump (Bagger machines)

1шт.

50

F12137

CLAMP - hydraulic line (Pressure lines to top deck)

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106)

1шт.

51

F12681

HOSE - hydraulic (1/4" I.D.) pressure line to steering valve (Chrysler engine only)

1шт.

F7875

HOSE - hydraulic (1/4" I.D.) pressure lilne to steering valve

1шт.

52

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - #6FTX-S Parker flared (Hose to P.S. control valve line)

1шт.
