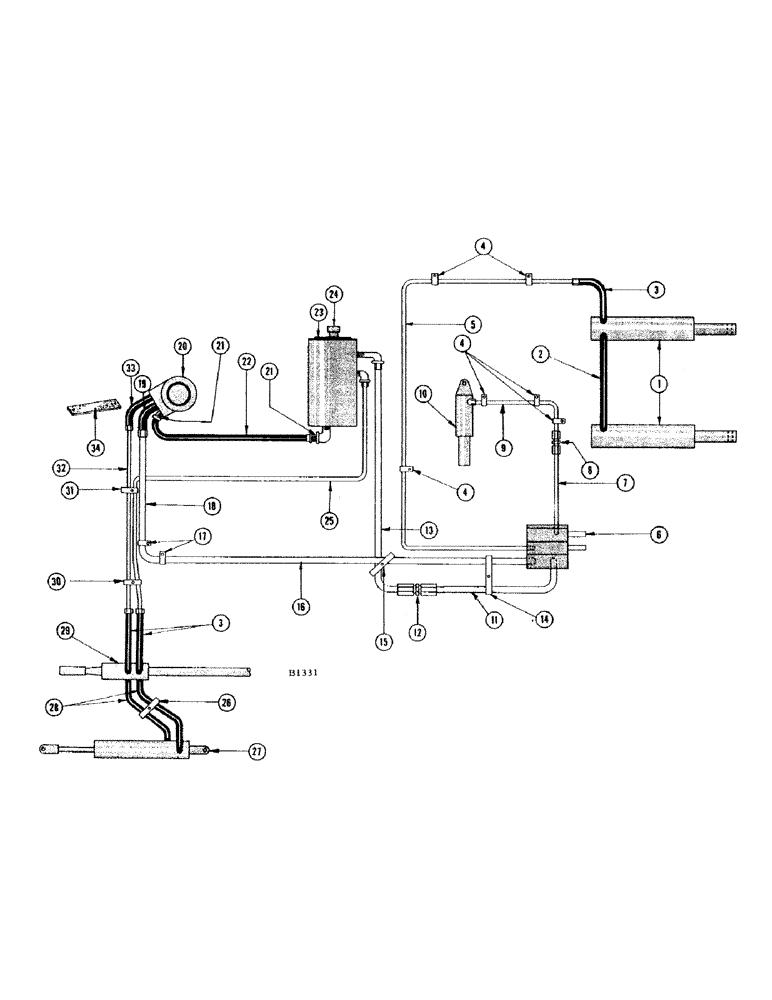

Запчасти Case IH 1010 (236) - HYDRAULIC SYSTEM, BEFORE SERIAL NUMBER 8243201 (35) - HYDRAULIC SYSTEMS

1

F78769

CYLINDER - header lift

2шт.

2

F10835

HOSE - hydraulic, connecting header lift cylinders

1шт.

3

F10834

HOSE

- hydraulic, from header lift ram to F86085 line

1шт.

F10834

HOSE

- hydraulic, from P.S. valve to F77903 and F77904 lines

2шт.

4

F9263

CLIP - hydraulic line

7шт.

5

F86085

LINE - (3/8" O.D.) from F86223 valve to header lift cylinder hose (F10834)

1шт.

CONNECTOR - #6FTX-S Parker flared (218-443)

1шт.

6

F86223

VALVE - header lift and variable speed control

1шт.

7

F86087

LINE - (3/8" O.D.) F86223 valve to F86092 line

1шт.

CONNECTOR - #6FTX-S Parker flared (218-443)

1шт.

8

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR - #6HTX-S Parker, flared

1шт.

9

F86930

LINE - hydraulic (Valve to V.S. upper ram) Replaces F86092

1шт.

10

F76962

RAM - variable speed control

1шт.

11

F78014

LINE - (1/2" O.D.) from F86223 valve to F78016 line (Bagging platform)

1шт.

NUT - (218-344) sleeve (218-364)

2шт.

F86148

LINE - (1/2" O.D.) valve to reservoir, rear

1шт.

NUT - (218-344) sleeve (218-364)

2шт.

12

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- #8HTX Parker

1шт.

CONNECTOR - #8-8FTX Parker (218-456)

1шт.

13

F78016

LINE - (1/2" O.D) from F78014 line to F78236 reservoir (Bagging platform)

1шт.

NUT - (218-344) sleeve (218-364)

2шт.

F86086

LINE - (1/2" O.D.) valve to reservoir rear half

1шт.

NUT - (218-344) sleeve (218-364)

2шт.

UNION - (218-735)

1шт.

14

F7884

CLIP - double, For hydraulic lines F77905 and F78014

1шт.

F7885

SUPPORT - for F7884 clip

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121)

1шт.

15

F12137

CLAMP - hydraulic line

1шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (11-614) nut (25-106)

1шт.

16

F86091

LINE - (1/2" O.D.) valve to pump, rear half

1шт.

NUT - (218-344) sleeve (218-364)

2шт.

F86147

LINE - (1/2" O.D.) valve to pump, front half

1шт.

NUT - (218-344) sleeve (218-364)

2шт.

CONNECTOR - #8-8FTX Parker (218-456)

1шт.

UNION - #8HTX Parker (218-735)

1шт.

17

F12067

CLIP - hydraulic lines (1/2" O.D.)

4шт.

BOLT - 1/4" x 1-1/2" N.F. hex. (114-4) nut (129-121)

4шт.

WASHER - 1/4" plain (195-518) L.W. (192-19)

4шт.

18

F77905

LINE - (1/2" O.D.) hydraulic pump to F86223 control valve (Bagging platform)

1шт.

NUT - (218-344) sleeve (218-364)

2шт.

19

F7878

HOSE - (1/2" I.D. x 14-1/4") from pump to F77905 line

1шт.

20

F86819

PUMP - hydraulic (Replaces F79197)

1шт.

21

F8049

COUPLING - for F8050 intake hose

2шт.

22

F8050

HOSE - (28-1/4" braid) intake, from, Serial Range: reservoir-pump

1шт.

CLAMP - #11-1/2 hose (214-11)

1шт.

23

F77978

RESERVOIR - oil (Replaces F78236)

1шт.

24

F77662

DIPSTICK AND CAP

1шт.

25

F77904

LINE - (3/8" O.D.) power steering valve, Serial Range: hose-reservoir

1шт.

CONNECTOR - #6 FTX-S Parker flared (218-443)

1шт.

26

F8807

CLIP - for F9240 hose

1шт.

BOLT - 1/4" x 7/8" N.F. hex. (14-414) nut (25-114)

1шт.

F9566

COVER - canvas, for F8807

1шт.

27

F78731

RAM - steering

1шт.

28

F9240

HOSE,0.25" ID x 36.00", SAE 100R1

- Swivel end, From F75719 power steering valve to F78731 power steering cylinder 0.25" ID x 36.00", SAE 100R1

2шт.

29

F75719

VALVE - power steering

1шт.

30

F9398

CLIP - for F77903 and F77904 lines

1шт.

F9563

STRIP - cushion, For F9398 clip

1шт.

31

F7778

CLIP - double, For lines F77903 and F77904 (L.H. rear side sheat)

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)

1шт.

F9565

STRIP - cushion, under F7778 clip

1шт.

32

F77903

LINE - (3/8" O.D.) hydraulic pump to power steering hose F10834

1шт.

CONNECTOR - #6FTX-S Parker flared (218-443)

1шт.

33

F7875

HOSE - (1/4" I.D. x 14-1/4") from pump to F77903 line

1шт.

34

F10143

PAD - protection, hydraulic line (2 ply rubber pulley cover)

1шт.
