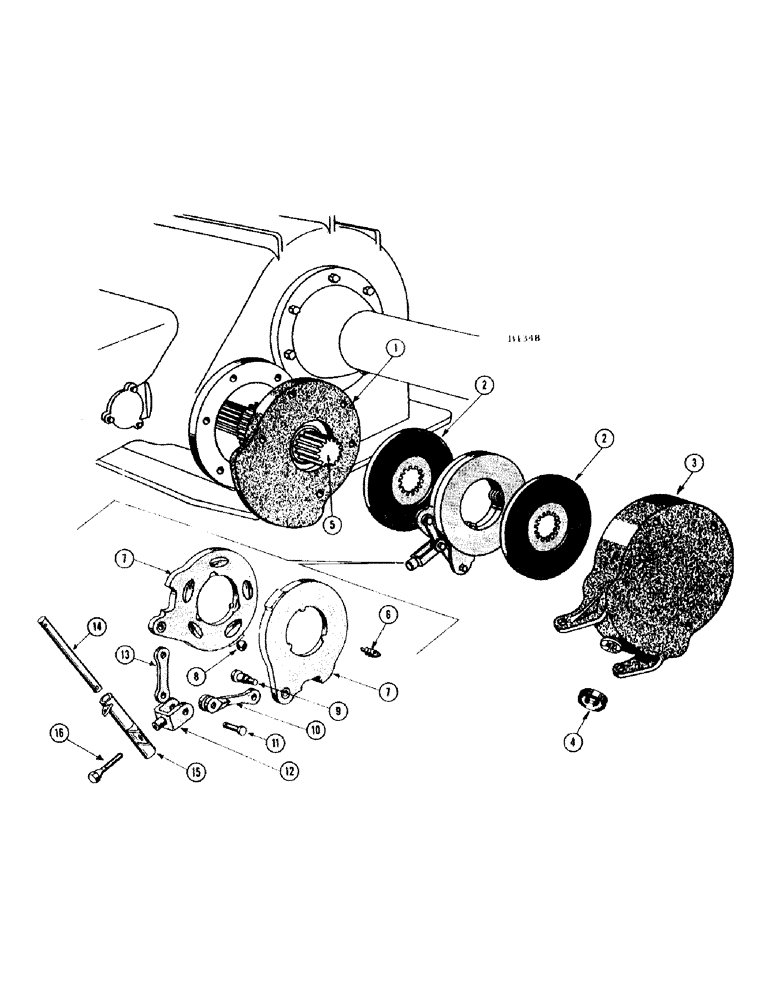

Запчасти Case IH 1010 (266) - DIFFERENTIAL BRAKE ASSEMBLY (33) - BRAKES & CONTROLS

1

F77792

ADAPTER - brake housing plate

2шт.

F9744

OIL SEAL

SEAL - oil (Not shown) See differential

2шт.

2

F77869

CLUTCH DISC

DISC - middle w/linings (Lining not furnished separately)

2шт.

3

F1278

HOUSING - brake

2шт.

BOLT - 7/16" x 5" N.C. hex. gr. 7-8 stl. (113-302) L.W. (92-7)

10шт.

4

F9792

BOOT - dust, brake housing

2шт.

5

F3096

SHAFT - differential (See differential)

2шт.

6

O8780AB

X

SPRING - actuating disc

6шт.

7

F1286

DISC - brake actuating

4шт.

8

211-19

BALL,7/8" Dia

- (.) For ref. 7 7/8" Dia

10шт.

9

O9269AB

X

STUD

4шт.

NUT - 5/16" N.F. jam light (25-115)

4шт.

10

F77868

LINK

- actuating disc, straddle

2шт.

11

O9314AB

X

PIN - yoke, brake rod

2шт.

PIN - 3/32" x 3/4" cotter (132-26)

2шт.

12

F3089

YOKE - brake operating lever

1шт.

13

F3116

X

LINK - actuating disc, single

2шт.

14

F9255

PIN - pivot, brake lever

2шт.

PIN - 3/16" x 1" cotter (132-91)

4шт.

15

F1252

LEVER - actuating, R.H.

1шт.

F1329

LEVER - actuating, L.H.

1шт.

16

F9256

BOLT - adjustment

2шт.

NUT - 7/16" N.F. hex. jam (25-157)

2шт.
