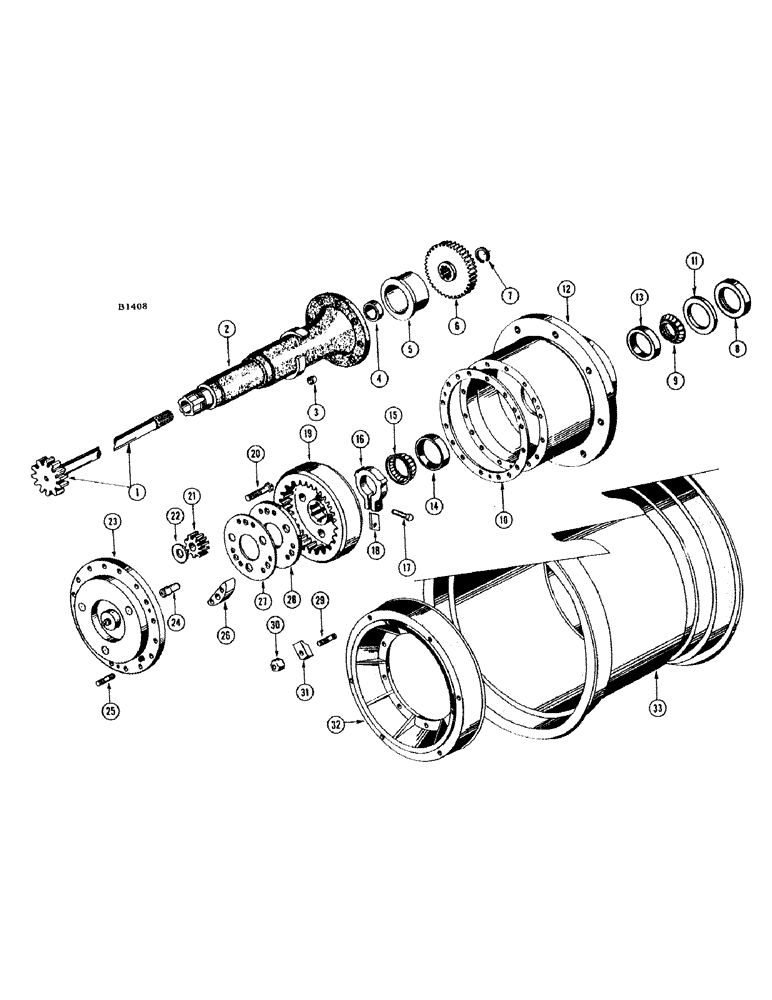

Запчасти Case IH 1010 (276) - MAIN AXLE AND HOUSING, RICE WHEEL COMBINES (25) - FRONT AXLE SYSTEM

1

F3113

SHAFT - axle

2шт.

2

F79921

HOUSING - axle, R.H.

1шт.

F79922

HOUSING - axle, L.H.

1шт.

3

F9810

DOWEL - for F9806 stud

4шт.

4

40002

BALL BEARING

- (N.D. #3309) axle shaft, for sleeve

2шт.

5

F9821

SLEEVE - transmission case

2шт.

6

F3115

GEAR - (79T) final drive

2шт.

7

F9836

RING - snap, axle shaft - retains drive gear

2шт.

8

F9802

SEAL - oil, inner - for hub, drive wheels, rice combines

2шт.

9

F9842

BEARING CONE

CONE - (Timken #34300) inner, For ref. 12, drive wheels and hubs, rice combines

2шт.

10

F9531

GASKET - wheel hub, drive, rice combines

2шт.

11

F9834

WASHER - between F9802 and F9842, drive wheels and hubs, rice combines

2шт.

12

F78564

HUB - wheel, drive and hubs, rice combines

2шт.

13

F9803

BEARING CUP

CUP - (Timken #34478) inner, For F78564 wheel hub, drive, rice combines

1шт.

14

O7043AB

X

CUP - (Timken #29620) outer, drive wheels and hubs, rice combines

1шт.

15

O7042AB

X

CONE - (Timken #29685) outer, For F78564 wheel hub, drive, rice combines

2шт.

16

F3122

NUT - hub bearing adjustment, drive wheels, rice combines

2шт.

17

F9840

BOLT - (3/8" x 1-3/4") wheel adjusting nut, drive and hubs, rice combines

2шт.

18

F10312

LOCK - for ref. 16, drive wheels and hubs, rice combines

2шт.

19

F3123

GEAR - planetary internal ring, drive wheels and hubs, rice combines

2шт.

20

F9841

BOLT - (3/8" x 2-1/8" N.F.) For retaining plate, drive wheels and hubs, rice combines

12шт.

21

F9853

PINION - planetary spider, drive wheels and hubs, rice combines

6шт.

22

F9835

WASHER - for planetary pinion gear, drive wheels and hubs, rice combines

6шт.

23

F77828

COVER - wheel hub, drive, rice combines

2шт.

24

F9852

SHAFT - pinion, planetary drive, wheels and hubs, rice combines

3шт.

25

F9805

STUD

- wheel hub, drive, rice combines

16шт.

LOCKWASHER - 7/16" Shakeproof #1122 (193-11), drive wheels and hubs, rice combines

16шт.

F11591

NUT

- (7/16" N.F. grade 8) wheel stud F9805 (Not shown), drive wheels and hubs, rice combines

16шт.

26

F1285

SPACER - planetary gear, drive wheels and hubs, rice combines

6шт.

27

F9528

SHIM - for retaining plate, drive wheels and hubs, rice combines

2шт.

28

F9847

RETAINER - spider pinion, drive wheels and hubs, rice combines

2шт.

29

O7223AB

X

STUD - wheel rim, drive and hubs, rice combines

12шт.

30

O7243AB

X

NUT - wheel rim, drive and hubs, rice combines

12шт.

31

O2109CS

X

CLAMP - wheel rim, drive and hubs, rice combines

12шт.

32

F1254

WHEEL - drive, hubs, rice combines

2шт.

BOLT - 5/8" x 2" N.F. hex. (14-1032) nut (25-1110), drive wheels and hubs, rice combines

16шт.

33

A23039

RIM - wheel (18 x 26 8 ply tire), drive and hubs, rice combines

2шт.
